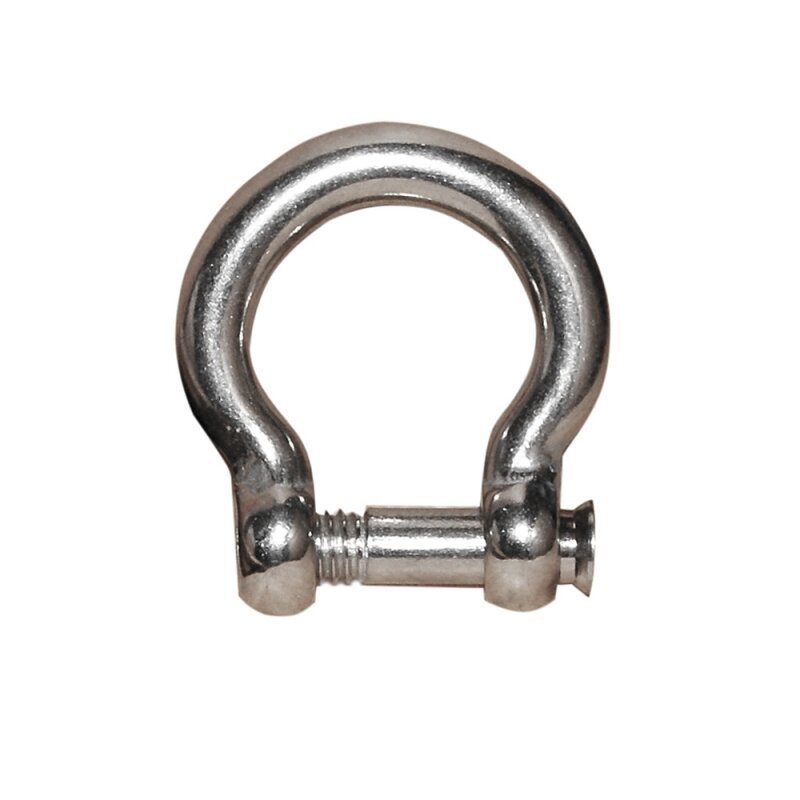

AISI 316 Stainless Steel Flush Head Bow Shackles with Hex Socket Pin

ID 1383799

$ 2.14

1-2 weeks delivery time

Diameter, mm:

AISI 316 Stainless Steel Flush Head Bow Shackles are designed for marine applications requiring a smooth, snag-free connection. Featuring a flush-mounted hex socket (Allen key) pin, these shackles provide secure fastening while minimizing protruding parts. Manufactured from marine-grade AISI 316 stainless steel, they offer outstanding corrosion resistance and are available in four sizes from 6 mm to 12 mm.

Description
Ask a Question

AISI 316 Stainless Steel Flush Head Bow Shackles with Hex Socket Pin

These flush head bow shackles are manufactured from premium AISI 316 stainless steel for reliable performance in marine and outdoor environments. The flush-mounted Allen key pin creates a smooth profile that helps prevent snagging while maintaining a secure mechanical connection.

The rounded bow design provides additional internal clearance compared to a standard D-shackle, making these shackles suitable for connecting ropes, chains, anchor fittings and other marine hardware.

Features

Manufactured from marine-grade AISI 316 stainless steel
Flush head Allen key (hex socket) pin
Smooth low-profile design reduces snagging
Wide bow shape for increased connection space
Excellent corrosion resistance in seawater
Suitable for anchor systems, rigging and deck hardware
Available in diameters from 6 mm to 12 mm

Available Variations

Article No.	Diameter Ø	A	B	C	D
0404426	6 mm	21 mm	12 mm	40 mm	21 mm
0404428	8 mm	28 mm	16 mm	54 mm	28 mm
0404430	10 mm	35 mm	20 mm	66 mm	35 mm
0404432	12 mm	42 mm	24 mm	70 mm	42 mm

Technical Specifications

Material	AISI 316 Stainless Steel
Product Type	Flush Head Bow Shackle
Pin Type	Flush Head Hex Socket (Allen Key)
Available Diameters	6 mm, 8 mm, 10 mm, 12 mm
Available Articles	0404426, 0404428, 0404430, 0404432

Applications

Anchor connections
Marine rigging
Deck hardware
Chain and rope connections
Mooring systems
General marine fastening
