ID
1383727
$ 1.23
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 8
- 10
- 12
The AISI 316 Stainless Steel Captive Pin D-Shackle is designed for secure marine fastening applications where accidental pin loss must be prevented. Its double-threaded captive pin remains attached to the shackle during installation and removal, while the marine-grade AISI 316 stainless steel construction provides excellent corrosion resistance in saltwater environments. This trade offer includes six sizes from 4 mm to 12 mm.
- Description
- Ask a Question
-

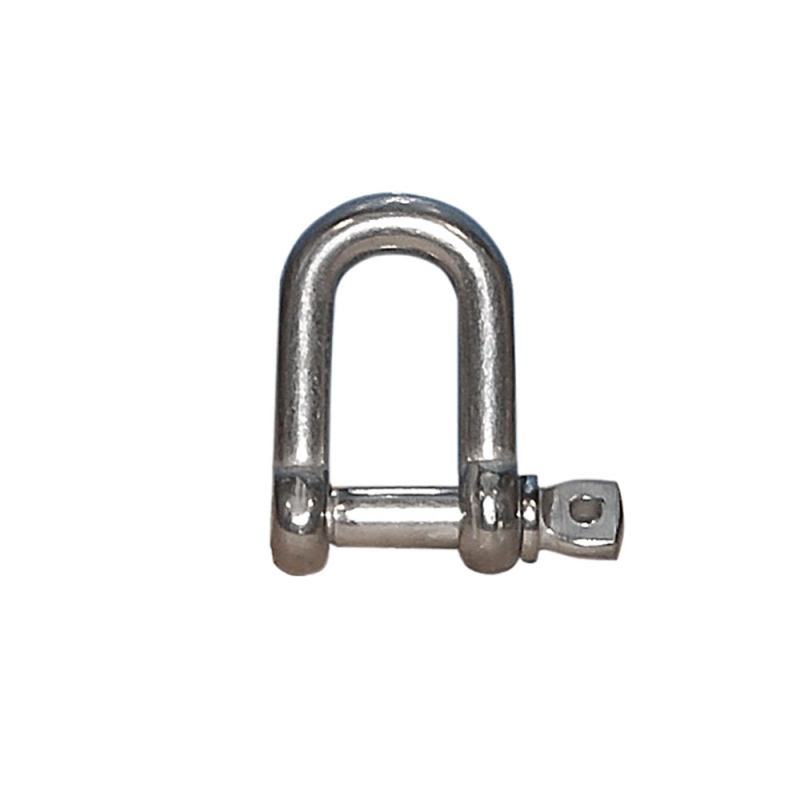

AISI 316 Stainless Steel Captive Pin D-Shackle
The AISI 316 Stainless Steel Captive Pin D-Shackle is manufactured from premium marine-grade stainless steel for excellent corrosion resistance and long service life. The double-threaded captive pin remains attached to the shackle, significantly reducing the risk of losing the pin during installation or maintenance. Suitable for anchor systems, rigging, lifting and general marine fastening applications.
This trade offer combines multiple size options for a wide range of marine installations.
Features
- Marine-grade AISI 316 stainless steel
- Captive screw pin with double-threaded design
- Reduces the risk of losing the pin
- Excellent corrosion resistance
- High-strength D-shackle construction
- Suitable for marine and outdoor applications
- Available in multiple sizes
- Sold individually
Available Variations
Article No. Pin Ø (mm) A (mm) B (mm) C (mm) 0401004 4 16 8 28 0401005 5 20 10 33 0401006 6 24 12 40 0401008 8 32 16 53 0401010 10 40 20 64 0401012 12 48 24 83
Specifications
Material AISI 316 Stainless Steel Type D-Shackle with Captive Pin Pin System Double-threaded captive screw pin Available Pin Sizes 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm Sales Unit 1 Piece
Applications
- Anchor chain connections
- Mooring systems
- Standing and running rigging
- Deck hardware installation
- Marine lifting applications
- General marine fastening
-
