ID
1383713
$ 2.18
1-2 weeks delivery time
Diameter, mm:
- 5
- 6
- 8
- 10
- 12
- 832
Length, mm:
- 20
- 24
- 40
- 48
- 64
The Hollex Forged D-Shackle with Threaded Pin is manufactured from premium AISI 316 stainless steel for excellent corrosion resistance in marine environments. Designed for secure connections between anchors, chains, mooring systems, rigging and deck hardware, the threaded pin provides a reliable fastening solution while allowing quick installation and removal. This trade offer includes standard and long-body versions in multiple sizes from 5 mm to 12 mm pin diameter.
- Description
- Ask a Question
-

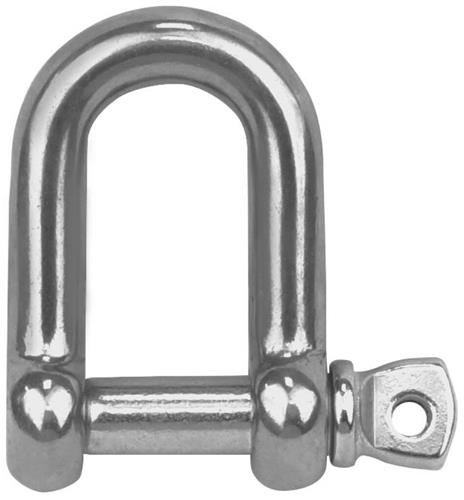

Hollex Forged D-Shackle with Threaded Pin Stainless Steel 316
The Hollex Forged D-Shackle with Threaded Pin is manufactured from marine-grade AISI 316 stainless steel, providing outstanding corrosion resistance and long-lasting performance in saltwater environments. The forged construction ensures high mechanical strength, while the threaded pin creates a secure and reusable connection for anchors, chains, rigging, lifting points and general marine hardware.
This trade offer combines multiple size options, including both standard and long-body shackles, allowing the correct size to be selected for a wide range of marine applications.
Features
- Forged D-shackle with threaded pin
- Manufactured from AISI 316 stainless steel
- Excellent resistance to corrosion and seawater
- Strong forged construction
- Reusable threaded pin connection
- Suitable for anchor systems, rigging and mooring
- Available in standard and long-body versions
- Sold individually
Available Variations
Article No. A (mm) D (mm) D1 (mm) L (mm) Version 115102642 10 5 5 20 Standard 115102643 12 6 6 24 Standard 115102644 16 8 8 32 Standard 115102645 20 10 10 40 Standard 115102646 24 12 12 48 Standard 115102647 10 5 5 40 Long Body 115102648 12 6 6 48 Long Body 115102649 16 8 8 64 Long Body
Specifications
Brand Hollex Material AISI 316 Stainless Steel Type Forged D-Shackle with Threaded Pin Versions Standard / Long Body Available Pin Diameters 5 mm, 6 mm, 8 mm, 10 mm, 12 mm Sales Unit 1 Piece
Applications
- Anchor chain connections
- Mooring systems
- Rigging and standing rigging
- Deck fittings
- Marine lifting points
- General marine fastening applications
-
