ID
1299988
$ 11,301.35
1-2 weeks delivery time
-
+
The Harken CLR600HTC is a hydraulic top custom mooring winch engineered for yachts requiring high performance in a compact, flush-stowing design. It is ideal for both sail and power yachts, offering minimal deck space usage while delivering powerful line control. This winch allows for the installation of multiple units for optimal mooring assistance. With a maximum holding load of 600 kg and a line speed of 18 m/min, it features five rotating aluminum columns for enhanced line-holding power and low-speed torque, as well as internal LED lights for improved visibility in low-light conditions.
- Description
- Ask a Question
-
Harken CLR600HTC - 600 CLR Hydraulic Top Custom Top Mooring Winch

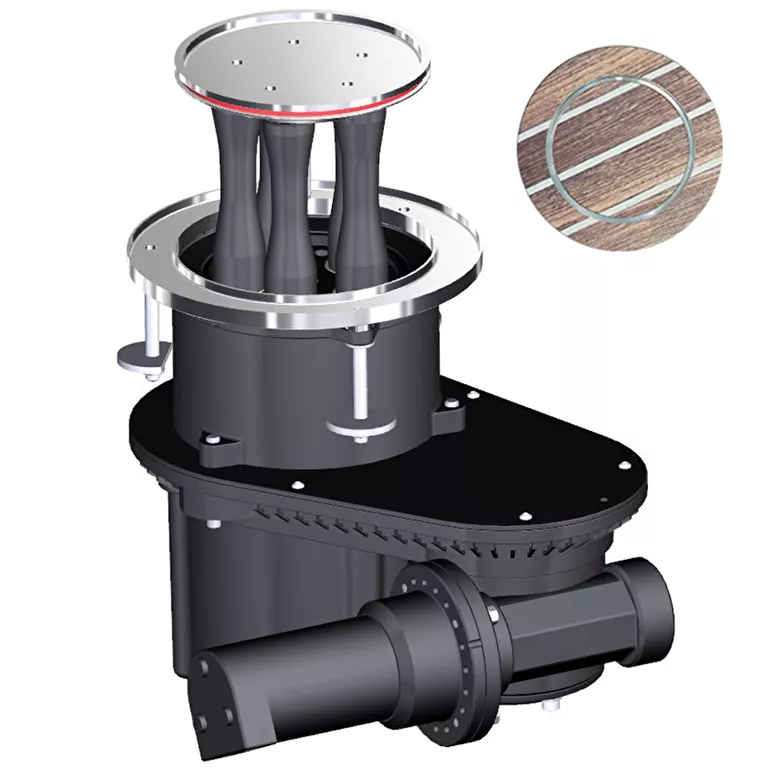

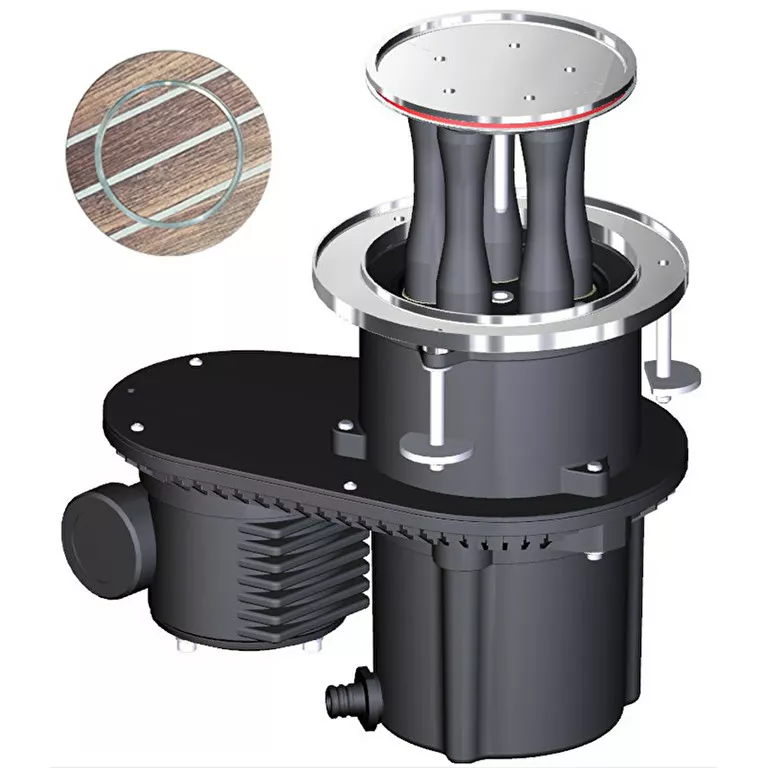

The Harken® CLR™ mooring winch is engineered for yachts requiring high performance in a compact, flush-stowing design. Its innovative geometry and mechanical efficiency make it ideal for both sail and power yachts. The CLR occupies minimal deck space while delivering powerful line control, allowing multiple units to be installed for optimal mooring assistance.
- Available power: Hydraulic
- Suitable boat length: 13.7 - 18.3 m (45 - 60 ft)
- Power: 900 W
- Weight: 15.7 kg (34.6 lb)
- Minimum line diameter: 12 mm (1/2 in)
- Maximum line diameter: 18 mm (11/16 in)
- Maximum line speed: 18 m/min (59 ft/min)
- Maximum holding load: 600 kg (1320 lb)
- Maximum pulling load: 300 kg (660 lb)

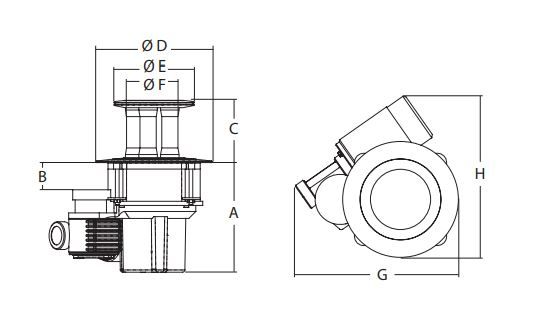

- Dimensions:
- A: 250 mm (9 13/16 in)
- B minimum: 15 mm (5/8 in)
- B maximum: 75 mm (2 15/16 in)
- C: 110 mm (4 5/16 in)
- D: 200 mm (7 7/8 in)
- E: 144 mm (5 11/16 in)
- F: 94 mm (3 11/16 in)
- G: 318 mm (12 17/32 in)
- H: 355 mm (14 in)
- Item number: HKWCLR600HTC
- Features five rotating aluminum columns for enhanced line-holding power and low-speed torque.
- Includes internal LED lights at the bottom of each column for improved visibility in low-light mooring conditions.
- Compact design allows for installation of up to three winches on a yacht to reduce engine and thruster reliance during docking.
-
