ID
1299992
$ 7,698.12
1-2 weeks delivery time
-
+
The Harken FW500EA12H is a FlatWinder electric block designed to simplify mainsheet traveler adjustment. It is a compact, self-contained electric block that allows for effortless control of the mainsail, helping sailors depower the rig quickly and manage sail trim efficiently as wind conditions change. With a maximum working load of 500 kg and a line speed of 26 m/min without load, it features a wide-diameter drive sheave with a sloped base for optimal line grip and minimal wear.
- Description
- Ask a Question
-

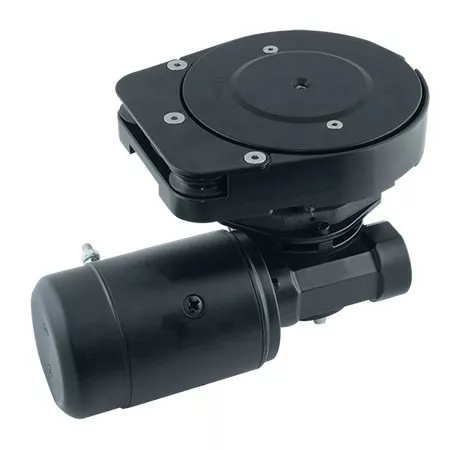

Harken FW500EA12H - FlatWinder Electric Block 500 12V
The Harken FlatWinder is a compact, self-contained electric block designed to simplify mainsheet traveler adjustment. Its low-profile design allows for effortless control of the mainsail, helping sailors depower the rig quickly and manage sail trim efficiently as wind conditions change. Acting like a small captive winch for the traveler, the FlatWinder keeps lines tidy while enabling smooth bidirectional movement along the track.
- Item number: HKWFW500EA12H
- Weight: 22.5 kg / 49.6 lb
- Line entry height: 29 mm / 1 1/8 in
- Compatible line diameter: 10 mm / 3/8 in
- Fastener circle: 160 mm / 6 5/16 in
- Fasteners: 6 × M6 SH mm
- Maximum working load: 500 kg / 1100 lb
- Line speed (no load): 26 m/min / 85 ft/min
- Dimensions:
- A: 242 mm / 9 1/2 in
- B: 273 mm / 10 3/4 in
- C: 152 mm / 6 in
- D: 53 mm / 2 1/16 in
- E: 71 mm / 2 13/16 in
- F: 231 mm / 9 1/8 in
- G: 363 mm / 14 5/16 in
- H: 484 mm / 19 1/16 in
- Features:
- Operates in both directions, moving the traveler car smoothly along the track
- Keeps traveler lines off the cockpit floor for a cleaner deck
- Wide-diameter drive sheave with sloped base for optimal line grip and minimal wear
- Compact horizontal motor installed belowdeck
- Includes a Harken Dual-Function Control Box, combining load control and system control in a space-saving design
- Recommended installation of two dual-function Digital System Switches for easy activation from port and starboard
- Available in 12V or 24V versions depending on the boat’s electrical system
- Switches and circuit breakers not included
-
