The Harken FW500EA24H is a 24-volt FlatWinder electric block that provides effortless mainsheet traveler adjustment. It functions like a compact captive winch, offering precise control to quickly depower the rig and postpone reefing as the wind intensifies. With a maximum working load of 500 kg and a line speed of 32 m/min without load, it includes a Dual-Function Control Box that combines load control and operation in one compact unit.
- Description
- Ask a Question
-

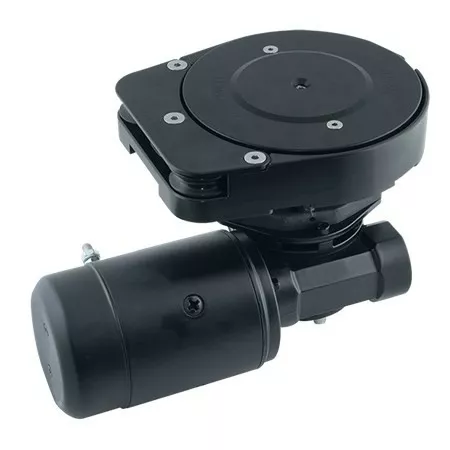

Harken FW500EA24H - FlatWinder Electric Block 500 24V
The Harken FlatWinder Electric Block provides effortless mainsheet traveler adjustment with its self-contained, low-profile design. It functions like a compact captive winch, offering precise control to quickly depower the rig and postpone reefing as the wind intensifies. With bidirectional operation, the traveler car can move smoothly along the track while keeping the line neatly off the cockpit floor.
- Compact horizontal motor located belowdeck
- Wide-diameter drive sheave on a sloped base prevents line from pressing against block walls
- Progressive grip minimizes wear on line and components
- Compatible with two Harken Digital System Switches for port and starboard activation
- Dual-Function Control Box included, combining load control and operation in one compact unit
- Available in 12V or 24V configurations
- Switches and circuit breakers not included
- Weight: 22.5 kg / 49.6 lb
- Line entry height: 29 mm / 1 1/8 in
- Line diameter: 10 mm / 3/8 in
- Fastener circle: 160 mm / 6 5/16 in
- Fasteners: 6 × M6 SH mm
- Maximum working load: 500 kg / 1100 lb
- Line speed (no load): 32 m/min / 105 ft/min
- Dimensions:
- A: 242 mm / 9 1/2 in
- B: 273 mm / 10 3/4 in
- C: 152 mm / 6 in
- D: 53 mm / 2 1/16 in
- E: 71 mm / 2 13/16 in
- F: 231 mm / 9 1/8 in
- G: 363 mm / 14 5/16 in
- H: 484 mm / 19 1/16 in
- Item number: HKWFW500EA24H
-
