ID
1299990
$ 5,381.27
1-2 weeks delivery time
-
+
The Harken FW250EA12H is a FlatWinder electric block designed for effortless mainsheet traveler control. It is a compact, self-contained electric system that allows sailors to adjust the traveler quickly, depower the rig, and postpone reefing when conditions demand. With a maximum working load of 250 kg and a line speed of 35 m/min without load, it is suitable for monohulls 15-18 m and catamarans 14-15 m in length. The included Harken Dual-Function Control Box simplifies installation and control.
- Description
- Ask a Question
-

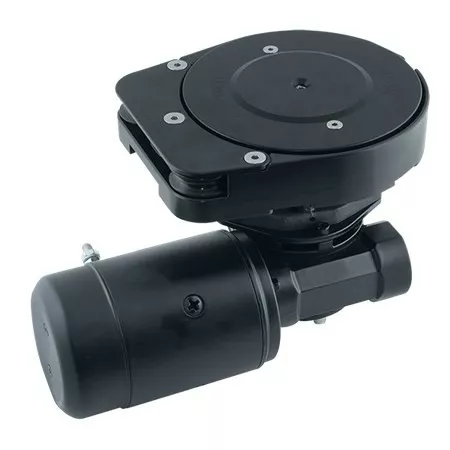

Harken FW250EA12H - FlatWinder Electric Block 250 12V
The Harken FlatWinder Electric Block offers effortless mainsheet traveler control with a compact, self-contained electric system. Designed to improve sail handling, it allows sailors to adjust the traveler quickly, depower the rig, and postpone reefing when conditions demand.
- Operates in both directions, keeping the traveler line off the cockpit floor.
- Recommended to use with two Digital System Switches for activation from port and starboard sides.
- Wide-diameter drive sheave mounted on a sloped base to guide the line and reduce wear.
- Eliminates the need for deck winches, providing a cleaner, safer deck layout.
- Horizontal motor installed belowdeck with a maximum working load of 250 kg (551 lb).
- Compatible with 10 mm line and 4:1 purchase for approximately 1000 kg (2205 lb) pull.
- Line speed without load: 35 m/min (115 ft/min).
- Includes Harken Dual-Function Control Box for integrated control and simplified installation.
- Suitable for monohulls 15 - 18 m (50 - 60') and catamarans 14 - 15 m (45 - 50').
- Available in 12V or 24V, depending on the boat's electrical system. Switches and circuit breakers not included.
- Weight: 12.5 kg (27.5 lb)
- Line entry height: 29 mm (1 1/8 in)
- Line diameter: 10 mm (3/8 in)
- Fastener circle: 125 mm (4 15/16 in)
- Fasteners: 6 × M6 SH mm
- Maximum working load: 250 kg (550 lb)
- Line speed (no load): 35 m/min (115 ft/min)
- Dimensions:
- A: 192 mm (7 9/16 in)
- B: 226 mm (8 7/8 in)
- C: 130 mm (5 1/8 in)
- D: 45 mm (1 13/16 in)
- E: 43 mm (1 3/4 in)
- F: 155 mm (6 1/8 in)
- G: 227 mm (8 15/16 in)
- H: 322 mm (12 11/16 in)
- Item number: HKWFW250EA12H
-
