The Harken FW250EA24H is a 24-volt FlatWinder electric block that offers effortless mainsheet traveler control. It functions like a miniature captive winch, moving the car along the track while keeping the line off the cockpit floor. With a maximum working load of 250 kg and a line speed of 35 m/min without load, it is compatible with two Harken Digital System Switches for port and starboard activation. The included Harken Dual-Function Control Box provides integrated load control.
- Description
- Ask a Question
-

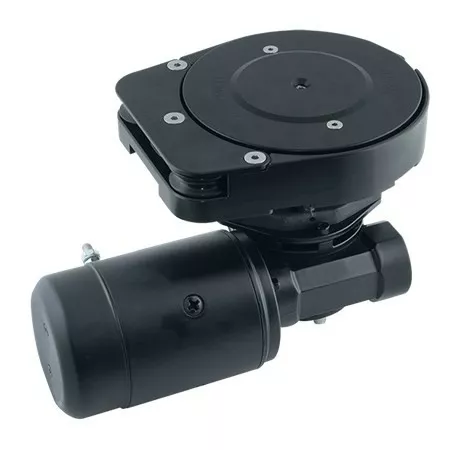

Harken FW250EA24H - FlatWinder Electric Block 250 24V
The Harken FlatWinder Electric Block is a compact, self-contained system designed for effortless mainsheet traveler control. Its low-profile design and electric operation allow sailors to adjust the traveler quickly, manage sail power efficiently, and postpone reefing in stronger winds. The FlatWinder functions like a miniature captive winch, moving the car along the track while keeping the line neatly off the cockpit floor.
- Power system: 24V electric
- Maximum working load: 250 kg (550 lb)
- Line compatibility: 10 mm (3/8 in) with a 4:1 purchase, providing ~1000 kg (2205 lb) pull
- Line speed (no load): 35 m/min (115 ft/min)
- Recommended installation: Two Harken Digital System Switches for port and starboard activation
- Motor orientation: Compact horizontal, mounted below deck
- Drive sheave: Wide-diameter, sloped base to contain the line and reduce wear
- Included components: Harken Dual-Function Control Box for integrated load control
- Suitable for monohulls: 15 - 18 m (50 - 60')
- Suitable for catamarans: 14 - 15 m (45 - 50')
- Switches and circuit breakers: Not included
Technical Specifications
- Weight: 12.5 kg (27.5 lb)
- Line entry height: 29 mm (1 1/8 in)
- Line diameter: 10 mm (3/8 in)
- Fastener circle: 125 mm (4 15/16 in)
- Fasteners: 6 × M6 SH mm
- Maximum working load: 250 kg (550 lb)
- Line speed (no load): 35 m/min (115 ft/min)
- Dimensions:
- A: 192 mm (7 9/16 in)
- B: 226 mm (8 7/8 in)
- C: 130 mm (5 1/8 in)
- D: 45 mm (1 13/16 in)
- E: 43 mm (1 3/4 in)
- F: 155 mm (6 1/8 in)
- G: 227 mm (8 15/16 in)
- H: 322 mm (12 11/16 in)
- Item number: HKWFW250EA24H
-
