The Harken CLR600ETC24H is a 24-volt custom top electric mooring winch that offers an innovative, flush-mounted design ideal for both sail and power yachts. It is compact, requiring significantly less space while providing remarkable mechanical efficiency. Weighing only 20.2 kg, it delivers the power of much heavier winches and allows versatile installation at bow and stern locations to facilitate efficient stern-to-dock mooring operations. With a maximum holding load of 600 kg and a line speed of 18 m/min, it is suitable for boats between 13.7 m and 18.3 m in length.
- Description
- Ask a Question
-
Harken CLR600ETC24H - 600 CLR Custom Top Electric Mooring Winch - 24V Horizontal

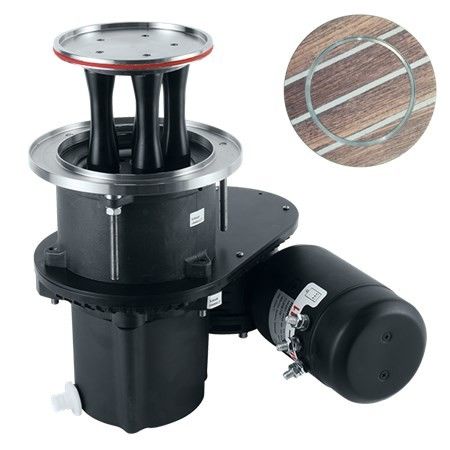

The Harken® CLR™ mooring winch offers an innovative, flush-mounted design ideal for both sail and power yachts. Its compact construction requires significantly less space while providing remarkable mechanical efficiency. Weighing only 20.2 kg (44.5 lb), it delivers the power of much heavier winches and allows versatile installation at bow and stern locations to facilitate efficient stern-to-dock mooring operations.
- Available power: Electric horizontal 24V
- Boat length: 13.7 - 18.3 m (45 - 60 ft)
- Power: 900 W
- Weight: 20.2 kg (44.5 lb)
- Line diameter: Minimum 12 mm (1/2 in), Maximum 18 mm (11/16 in)
- Maximum line speed: 18 m/min (59 ft/min)
- Maximum holding load: 600 kg (1320 lb)
- Maximum pulling load: 300 kg (660 lb)

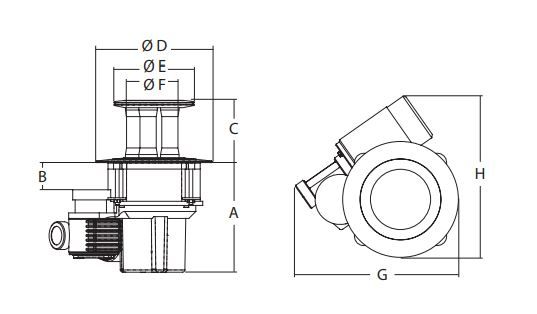

- Dimensions:
- A: 250 mm (9 13/16 in)
- B minimum: 15 mm (5/8 in)
- B maximum: 75 mm (2 15/16 in)
- C: 110 mm (4 5/16 in)
- D: 200 mm (7 7/8 in)
- E: 144 mm (5 11/16 in)
- F: 94 mm (3 11/16 in)
- G: 318 mm (12 17/32 in)
- H: 355 mm (14 in)
- Item number: HKWCLR600ETC24H
-
