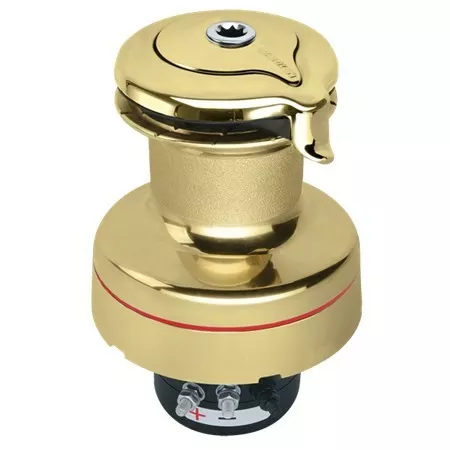

Harken 900UPWBBB24 - 900 Electric UniPower Self-Tailing Radial Bronze Winch 24V

ID 1299966

$ 7,933.85

1-2 weeks delivery time

- +

Add to cart

The Harken 900UPWBBB24 is the 24-volt version of the bronze electric self-tailing winch, delivering the same compact efficiency and robust design. Its motor is partially embedded within the drum, saving space on small boats. This winch uses composite roller bearings and stainless steel gears, ensuring smooth operation and high durability. It is compatible with digital switches and circuit breakers, providing reliable performance for sailors who need a powerful and durable winch.

Description
Ask a Question

Harken 900UPWBBB24 - 900 Electric UniPower Self-Tailing Radial Bronze Winch 24V

The 24V version of the Harken 900 Electric UniPower Winch delivers the same compact efficiency and robust design, but with a 24-volt power supply. Its partially embedded motor lowers to only 105 mm (4 1/8 in) beneath the winch base, saving space on small boats. Composite roller bearings ensure smooth operation without lubrication, while the stainless steel 17-4PH gears provide high durability. Compatible with the DSSBK single-function digital switch and HCP1717 circuit breaker (sold separately).
- Weight: 15.7 kg / 34.6 lb
- Maximum line diameter: 14 mm / 9/16 in
- Fasteners: M8 SH mm / 5/16 SH in
- Fastener circle: 160 mm / 6 5/16 in
- Height: 215 mm / 8 1/2 in
- Number of fasteners: 5
- E: 35 mm / 1 3/8 in
- F: 105 mm / 4 1/8 in
- G: 140 mm / 5 1/2 in
- Material: Bronze
- Configuration: Self-tailing
- Speed: 1
- Drum diameter: 110 mm / 4 3/8 in
- Base diameter: 190 mm / 7 1/2 in
- Line entry height: 100 mm / 3 15/16 in
- Minimum line diameter: 8 mm / 5/16 in
- Maximum pulling load: 900 kg / 1984 lb
- Available power: Electric vertical 24V
- Item number: HKW900UPWBBB24
