Harken CLR1200EA12H - 1200 CLR Aluminum Electric Mooring Winch 12V Horizontal

ID 1299971

$ 13,961.69

1-2 weeks delivery time

- +

Add to cart

The Harken CLR1200EA12H is a compact, high-performance electric mooring winch designed for yachts, offering exceptional mechanical advantage while occupying minimal space. Its innovative drum geometry and internal LED lights enhance performance and visibility in low-light conditions. This winch is ideal for yachts seeking efficient mooring solutions with reduced reliance on engines and thrusters.

Description
Ask a Question

Harken CLR1200EA12H - 1200 CLR Aluminum Electric Mooring Winch 12V Horizontal

The Harken CLR1200EA12H is a compact, high-performance electric mooring winch designed to maximize space and efficiency aboard yachts. Its innovative design allows it to stow completely below deck, occupying significantly less space than comparable winches while providing exceptional mechanical advantage.
- Available power: Electric horizontal 12V
- Boat length: 18.3 - 27.4 m (60 - 90 ft)
- Power: 1500 W
- Weight: 22 kg (48.5 lb)
- Minimum line Ø: 12 mm (1/2 in)
- Maximum line Ø: 18 mm (11/16 in)
- Maximum line speed: 15 m/min (49.2 ft/min)
- Maximum holding load: 1200 kg (2640 lb)
- Maximum pulling load: 600 kg (1320 lb)

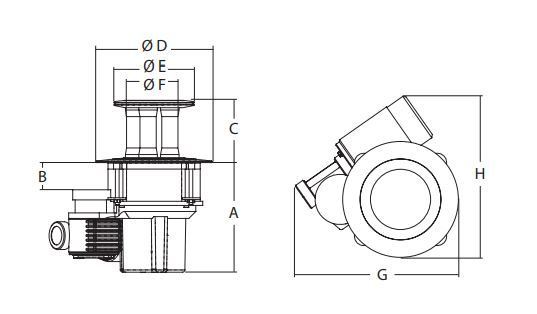

- Dimensions:
  - A: 237 mm (9 5/16 in)
  - B minimum: 15 mm (5/8 in)
  - B maximum: 55 mm (2 5/32 in)
  - C: 135 mm (5 5/16 in)
  - D: 250 mm (9 27/32 in)
  - E: 174 mm (6 27/32 in)
  - F: 119 mm (4 11/16 in)
  - G: 346 mm (13 5/8 in)
  - H: 350 mm (13 25/32 in)
- Item number: HKWCLR1200EA12H
The winch features a unique drum geometry with five aluminum columns rotating around a central axis, producing more line-holding power and torque at low speeds than traditional drums. Internal LED lights on each column assist in low-light mooring situations. Its compact form allows installation of multiple units on a yacht to reduce engine and thruster reliance when mooring stern-to-dock.
