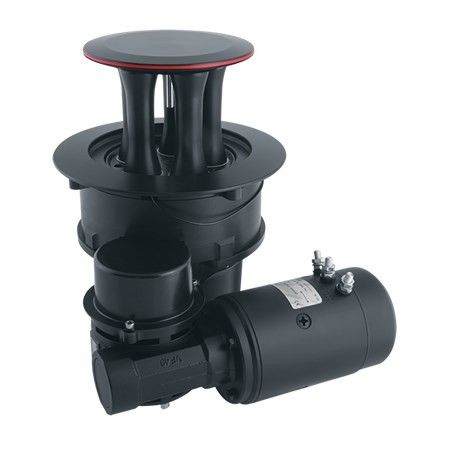

Harken CLR1200EA24H - 1200 CLR Aluminum Electric Mooring Winch 24V Horizontal

ID 1299972

$ 13,961.69

1-2 weeks delivery time

- +

Add to cart

The Harken CLR1200EA24H sets a new standard in compact, high-performance electric mooring winches, offering 40% less horizontal space and under half the vertical space of previous models. Its innovative drum design and aluminum columns provide exceptional low-speed torque and line-holding power, making it ideal for yachts seeking efficient mooring with minimal engine or thruster use. The winch is compatible with boats from 18.2 m to 27.4 m and is equipped with internal LED lights for low-light operations.

Description
Ask a Question

Harken CLR1200EA24H - 1200 CLR Aluminum Electric Mooring Winch 24V Horizontal

The CLR1200EA24H sets a new standard in compact, high-performance electric mooring winches. Designed to stow fully belowdeck, it requires 40% less horizontal space and under half the vertical space of previous models, while weighing only 33% as much as competitors. Its innovative drum design and aluminum columns deliver exceptional low-speed torque and line-holding power, making it ideal for yachts seeking efficient mooring solutions with minimal engine or thruster use. Internal LED lights aid low-light mooring operations, and the winch handles boats from 18.2 m to 27.4 m (59.7' – 89.9') with a maximum holding load of 1200 kg (2645.5 lb).
- Available power: Electric horizontal 24V
- Boat length: 18.3 - 27.4 m (60 - 90 ft)
- Power: 2000 W
- Weight: 22 kg (48.5 lb)
- Minimum line Ø: 12 mm (1/2 in)
- Maximum line Ø: 18 mm (11/16 in)
- Maximum line speed: 15 m/min (49.2 ft/min)
- Maximum holding load: 1200 kg (2640 lb)
- Maximum pulling load: 600 kg (1320 lb)

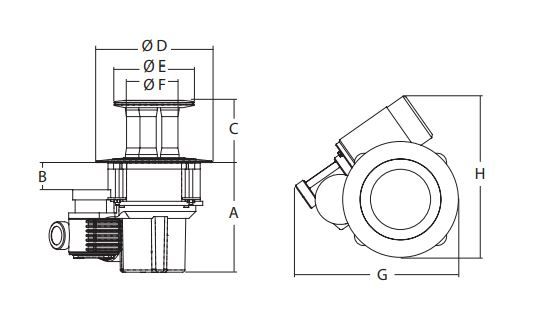

- Dimensions:
  - A: 237 mm (9 5/16 in)
  - B minimum: 15 mm (5/8 in)
  - B maximum: 55 mm (2 5/32 in)
  - C: 135 mm (5 5/16 in)
  - D: 250 mm (9 27/32 in)
  - E: 174 mm (6 27/32 in)
  - F: 119 mm (4 11/16 in)
  - G: 346 mm (13 5/8 in)
  - H: 350 mm (13 25/32 in)
- Item number: HKWCLR1200EA24H
