Harken 900UPWCCC24 - 900 Electric UniPower Self-Tailing Radial All-Chrome Winch 24V

ID 1299970

$ 7,933.85

1-2 weeks delivery time

- +

Add to cart

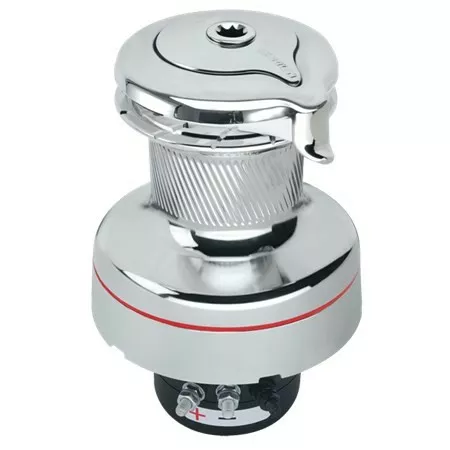

The Harken 900UPWCCC24 is the 24-volt version of the all-chrome electric self-tailing winch, combining compact efficiency with the power of a 24-volt motor. Its motor is partially embedded inside the drum, saving space on boats with tight space. This winch uses composite roller bearings and stainless steel gears, ensuring smooth operation and reliability. It is compatible with digital switches and circuit breakers, providing a reliable and stylish solution for sailors who need a powerful winch.

Description
Ask a Question

Harken 900UPWCCC24 - 900 Electric UniPower Self-Tailing Radial All-Chrome Winch 24V

The Harken 900UPWCCC24 UniPower combines the compact efficiency of a low-profile manual winch with the power of a 24-volt electric motor. Its motor is partially embedded inside the drum, protruding only 105 mm (4 1/8 in) below the base, making it ideal for boats with tight space under the cabin top. Composite roller bearings minimize friction and require no lubrication, while 17-4PH stainless steel gears provide strength and reliability. Harken suggests using the DSSBK single-function digital switch and HCP1717 circuit breaker, which are sold separately.
- Weight: 15.7 kg / 34.6 lb
- Maximum line diameter: 14 mm / 9/16 in
- Fasteners: M8 SH mm / 5/16 SH in
- Fastener circle: 160 mm / 6 5/16 in
- Height: 215 mm / 8 1/2 in
- Number of fasteners: 5
- E: 35 mm / 1 3/8 in
- F: 105 mm / 4 1/8 in
- G: 140 mm / 5 1/2 in
- Material: All-Chrome
- Configuration: Self-tailing
- Speed: 1
- Drum diameter: 110 mm / 4 3/8 in
- Base diameter: 190 mm / 7 1/2 in
- Line entry height: 100 mm / 3 15/16 in
- Minimum line diameter: 8 mm / 5/16 in
- Maximum pulling load: 900 kg / 1984 lb
- Available power: Electric vertical 24V
- Voltage: 24 V
- Item number: HKW900UPWCCC24
