Harken 900UPWBBB12 - 900 Electric UniPower Self-Tailing Radial Bronze Winch 12V

ID 1299965

$ 7,933.85

1-2 weeks delivery time

- +

Add to cart

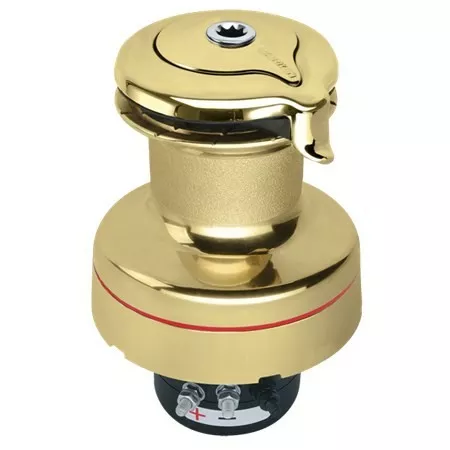

The Harken 900UPWBBB12 is a bronze electric self-tailing winch designed for compact sailboats. Its low-profile design and partially embedded motor make it ideal for boats with limited space. The winch features composite roller bearings and 17-4PH stainless steel gears, offering exceptional strength and longevity. It is compatible with digital switches and circuit breakers, making it a reliable choice for sailors who need a powerful and durable winch.

Description
Ask a Question

Harken 900UPWBBB12 - 900 Electric UniPower Self-Tailing Radial Bronze Winch 12V

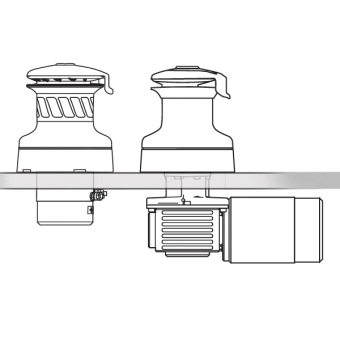

The Harken 900 Electric UniPower Winch 12V is designed to bring powerful performance to compact sailboats. Its low-profile design merges the simplicity of a manual winch with the efficiency of a 12-volt, low-amp-draw motor. The motor sits partially inside the drum, extending only 105 mm (4 1/8 in) below the base, making it ideal for boats with limited space under the cabin top. Maintenance is simplified thanks to composite roller bearings that reduce friction and require no lubrication. Gears are crafted from 17-4PH stainless steel for exceptional strength and longevity. Compatible with the DSSBK single-function digital switch and HCP1717 circuit breaker (sold separately).
- Weight: 15.7 kg / 34.6 lb
- Maximum line diameter: 14 mm / 9/16 in
- Fasteners: M8 SH mm / 5/16 SH in
- Fastener circle: 160 mm / 6 5/16 in
- Height: 215 mm / 8 1/2 in
- Number of fasteners: 5
- E: 35 mm / 1 3/8 in
- F: 105 mm / 4 1/8 in
- G: 140 mm / 5 1/2 in
- Material: Bronze
- Configuration: Self-tailing
- Speed: 1
- Drum diameter: 110 mm / 4 3/8 in
- Base diameter: 190 mm / 7 1/2 in
- Line entry height: 100 mm / 3 15/16 in
- Minimum line diameter: 8 mm / 5/16 in
- Maximum pulling load: 900 kg / 1984 lb
- Available power: Electric vertical 12V
- Voltage: 12 V
- Item number: HKW900UPWBBB12
