The Harken 40.2STEP12H is an electric self-tailing Performa™ winch designed for effortless sail handling, featuring a sandblasted drum optimized for small-diameter high-tech lines, enabling sail trimming at the push of a button. It has a weight of 3.8 kg, a two-speed configuration, and includes a motor weighing 9.7 kg, with gear ratios of 2.13 and 6.28.
- Description
- Ask a Question
-

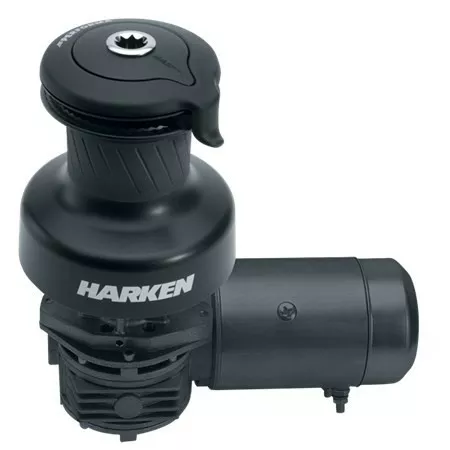

Harken 40.2STEP12H - Electric Self-Tailing Performa™ Winch 2 Speed, 12V, Horizontal 40.2STE Black

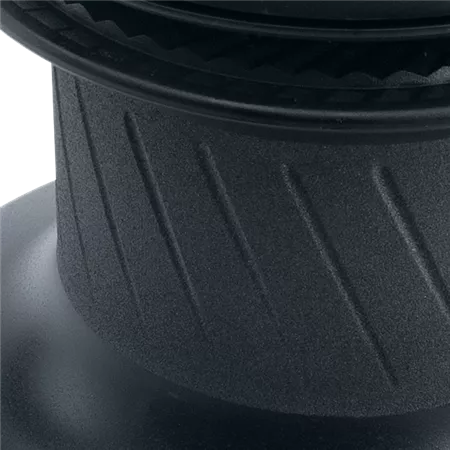

The Harken 40.2STEP12H is an electric self-tailing Performa™ winch engineered for effortless sail handling. Its sandblasted drum is optimized for halyard and sheeting operations using small-diameter, high-tech lines, allowing you to trim sails at the push of a button.
- Weight: 3.8 kg / 8.4 lb
- Maximum line diameter: 12 mm / 1/2 in
- Minimum line diameter: 8 mm / 5/16 in
- Fasteners: 6 SH mm / 1/4 SH in
- Fastener circle: 123 mm / 4 7/8 in
- Number of fasteners: 5
- Height: 175 mm / 6 7/8 in
- Drum diameter: 80 mm / 3 1/8 in
- Base diameter: 157 mm / 6 3/16 in
- Line entry height: 82 mm / 3 1/4 in
- Configuration: Self-tailing
- Speed: 2
- Weight of winch and motor: 13.5 kg / 29.7 lb
- Motor weight: 9.7 kg / 21.3 lb
- Gear ratios: 2.13 / 6.28
- Power ratios: 13.50 / 39.90
- Racing disconnect rod: B40PDR
- E dimension: 43 mm / 1 3/4 in
- F dimension: 155 mm / 6 1/8 in
- G dimension: 227 mm / 8 7/8 in
- Item number: HKW40.2STEP12H
-
