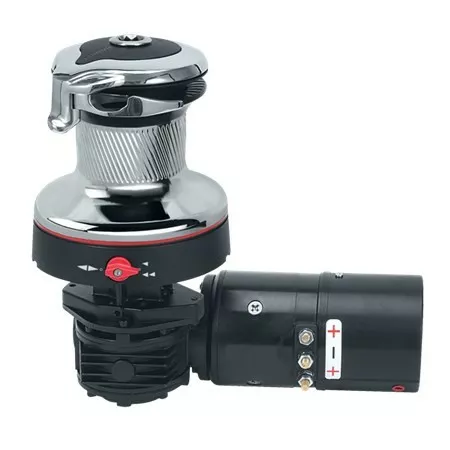

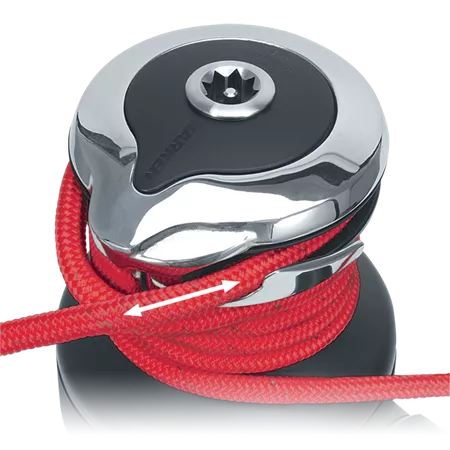

The Harken 40RWC12H is a 12V electric self-tailing rewind radial winch with a chrome finish, designed for trimming and easing heavy sails in both directions while maintaining line control via a spring-loaded arm. It weighs 16.2 kg and features a red knob for rewind activation.
- Description
- Ask a Question
-

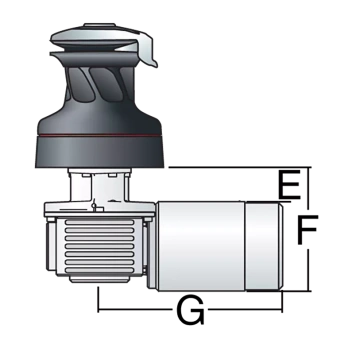

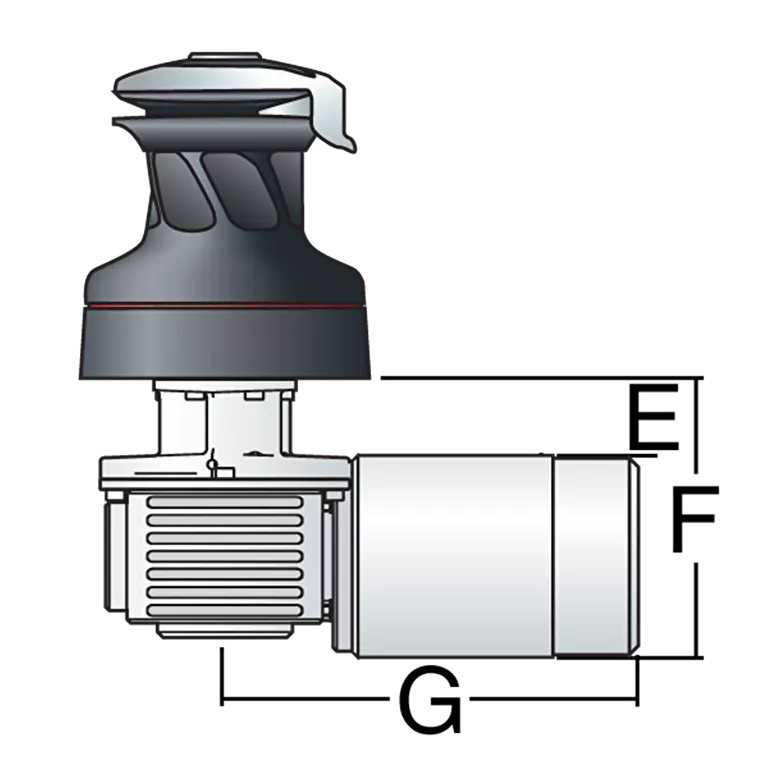

Harken 40RWC12H - Electric Self-Tailing Rewind™ Radial Winch Reverse Speed, 12V 40.2ST Chrome/Black

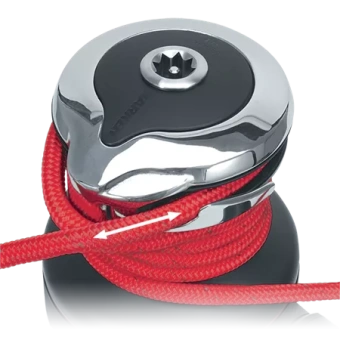

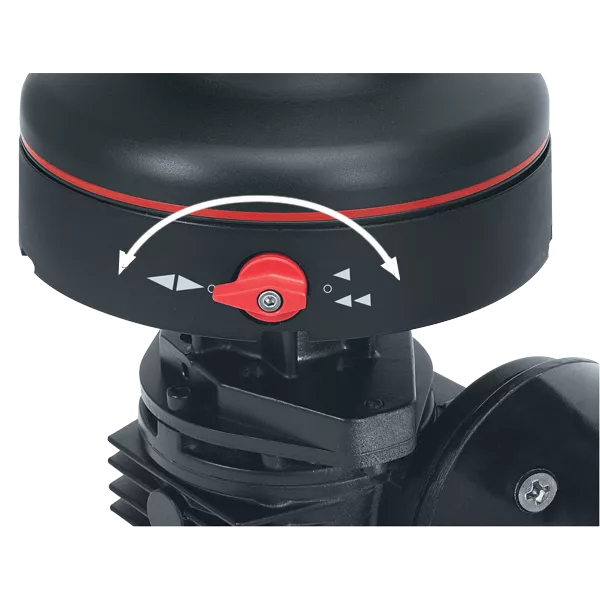

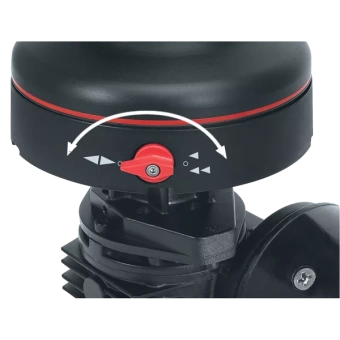

The Harken 40RWC12H combines chrome finish with high-performance functionality, enabling sailors to trim and ease heavy sails in both directions while keeping the line in the self-tailer. The rewind feature activates with a red knob, and the stainless steel spring-loaded arm ensures consistent line control. Requires one control box, one circuit breaker, and either two analog switches or a Digital System Switch. Comes with a dual-function control box for all new installations.
- Weight: 16.2 kg / 35.7 lb
- Maximum line diameter: 12 mm / 1/2 in
- Minimum line diameter: 8 mm / 5/16 in
- Fasteners: M6 SH mm / 1/4 SH in
- Fastener circle: 123 mm / 4 7/8 in
- Height: 175 mm / 6 7/8 in
- E dimension: 43 mm / 1 3/4 in
- F dimension: 155 mm / 6 1/8 in
- Configuration: Self-tailing
- Speed: 2
- Drum diameter: 80 mm / 3 1/8 in
- Base diameter: 157 mm / 6 3/16 in
- Line entry height: 82 mm / 3 1/4 in
- Number of fasteners: 5
- Gear ratios: 2.13 / 6.28
- Power ratios: 13.50 / 39.90
- Voltage: 12V
- G dimension: 280 mm / 11 in
- Material: Chrome
- Available power: Electric horizontal 12V
- Item number: HKW40RWC12H
-
