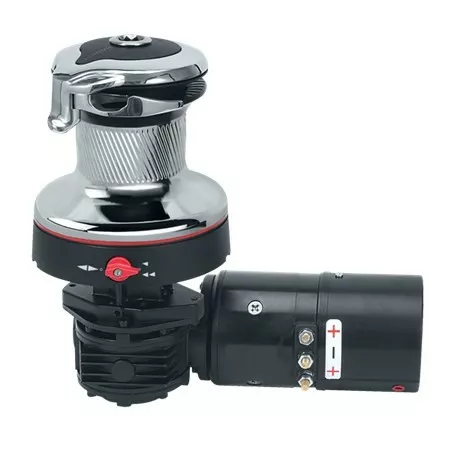

The Harken 40RWC24H is a 24V electric self-tailing rewind radial winch with a chrome finish that allows precise control of heavily loaded sails in both directions without removing the line from the self-tailer. It features a patented rewind mechanism activated by a red knob and weighs 16.2 kg.
- Description
- Ask a Question
-
Harken 40RWC24H - 40 Electric Self-Tailing Rewind™ Radial Winch Reverse Speed, 24V 40.2ST Chrome/Black

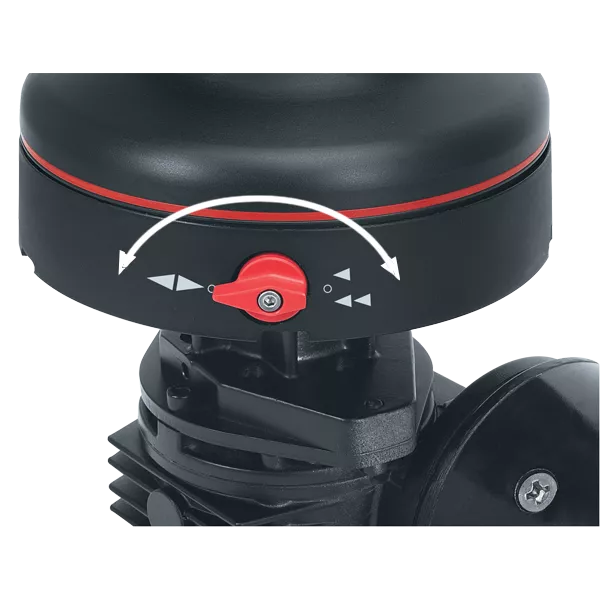

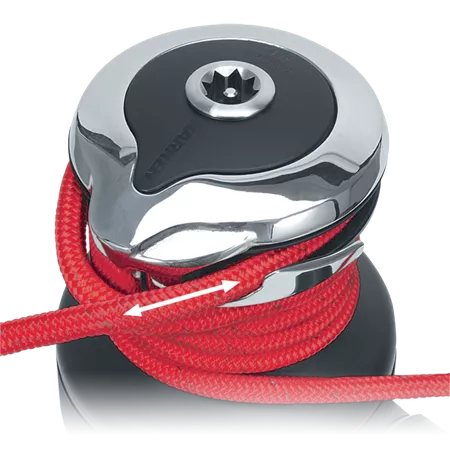

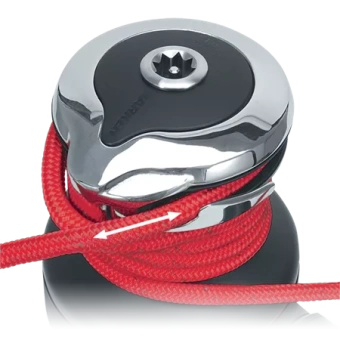

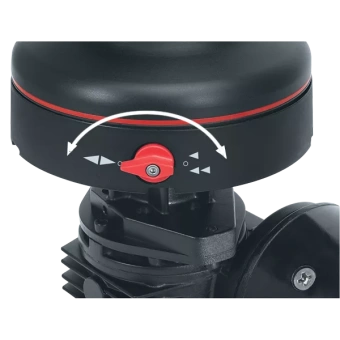

Designed for effortless sail handling, the Harken 40RWC24H allows you to control highly loaded sails in both directions without removing the line from the self-tailer. Its patented Rewind feature is activated with a simple flip of the red knob, while a spring-loaded stainless steel arm keeps the line secure as you adjust sails with fingertip precision. Compatible with one control box, one circuit breaker, and either two analog switches or a Digital System Switch, this electric winch offers high performance with safety and convenience.
- Weight: 16.2 kg / 35.7 lb
- Maximum line diameter: 12 mm / 1/2 in
- Minimum line diameter: 8 mm / 5/16 in
- Fasteners: M6 SH mm / 1/4 SH in, 5 fasteners, Fastener circle 123 mm / 4 7/8 in
- Height: 175 mm / 6 7/8 in
- E: 43 mm / 1 3/4 in
- F: 155 mm / 6 1/8 in
- Configuration: Self-tailing
- Speed: 2
- Drum diameter: 80 mm / 3 1/8 in
- Base diameter: 157 mm / 6 3/16 in
- Line entry height: 82 mm / 3 1/4 in
- Gear ratios: 2.13 / 6.28
- Power ratios: 13.50 / 39.90
- Voltage: 24V
- G: 280 mm / 11 in
- Material: Chrome
- Available power: Electric horizontal 24V
- Item number: HKW40RWC24H
-
