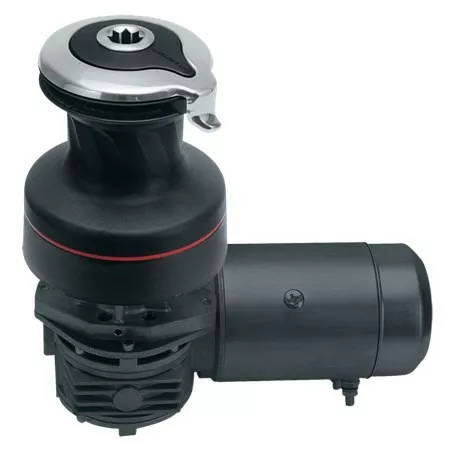

Harken 40.2STEA12H - Electric Self-Tailing Radial Aluminum Winch 2 Speed, 12V, Horizontal 40.2STE Black

ID 1299858

$ 4,916.56

1-2 weeks delivery time

- +

Add to cart

The Harken 40.2STEA12H is an electric self-tailing radial aluminum winch with a 12V horizontal motor. It features a diagonally ribbed drum for superior grip and minimal wear, supports single-person operation, and offers two speeds with smooth, corrosion-resistant gears. The winch weighs 3.8 kg alone, with a total winch and motor weight of 13.5 kg.

Description
Ask a Question

Harken 40.2STEA12H - Electric Self-Tailing Radial Aluminum Winch 2 Speed, 12V, Horizontal 40.2STE Black

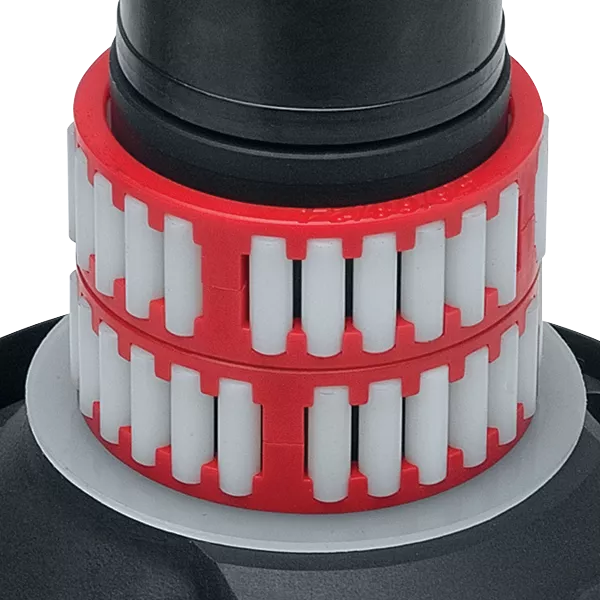

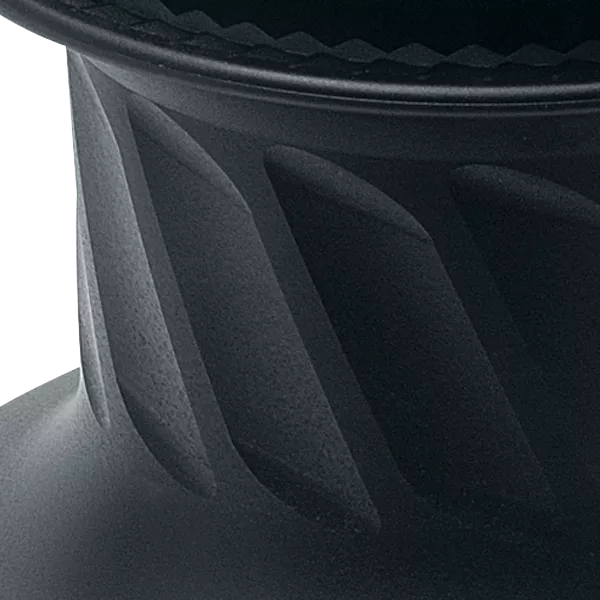

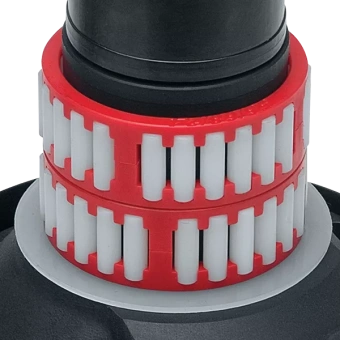

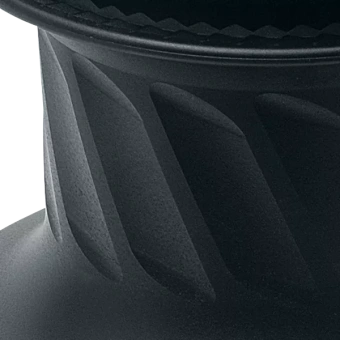

Experience effortless sail trimming with the Harken 40.2STEA12H Electric Radial Winch. Its drum design with diagonal ribs ensures superior line grip while minimizing wear. One-person operation is made simple with the self-tailing mechanism. Durable composite roller bearings and 17-4 PH stainless steel gears provide smooth, corrosion-resistant performance. Two-speed gearing offers fast trimming with low-power first gear and precise adjustments with the high-power second gear, all powered efficiently by a 12V motor.
- Weight: 3.8 kg / 8.4 lb
- Maximum line Ø: 12 mm / 1/2 in
- Minimum line Ø: 8 mm / 5/16 in
- Fasteners: M6 SH / 1/4 SH in
- Fastener circle: 123 mm / 4 7/8 in
- Height: 175 mm / 6 7/8 in
- Number of fasteners: 5
- E: 43 mm / 1 3/4 in
- F: 155 mm / 6 1/8 in
- Configuration: Self-tailing
- Speed: 2
- Drum Ø: 80 mm / 3 1/8 in
- Base Ø: 157 mm / 6 3/16 in
- Weight of Winch and Motor: 13.5 kg / 29.7 lb
- Motor weight: 9.7 kg / 21.3 lb
- Line entry height: 82 mm / 3 1/4 in
- Gear ratio - 1: 2.13
- Gear ratio - 2: 6.28
- Power ratio - 1: 13.50
- Power ratio - 2: 39.90
- Voltage: 12V
- G: 227 mm / 8 7/8 in
- Material: Aluminum
- Available power: Electric horizontal 12V
- Item number: HKW40.2STEA12H
