The Harken 40RWA24H is a 24V electric self-tailing rewind radial aluminum winch that offers smooth control of heavily loaded sails in both directions without removing the line from the self-tailer. It includes an intuitive rewind feature activated by a red knob and weighs 14.6 kg.
- Description
- Ask a Question
-

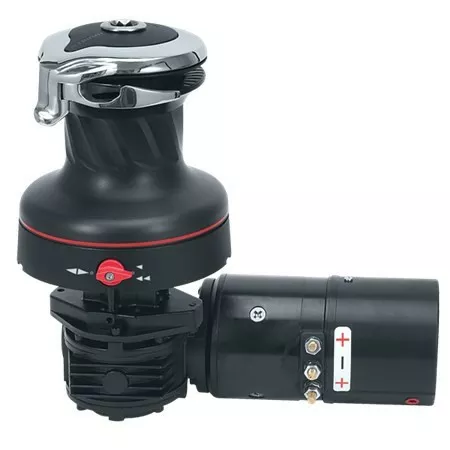

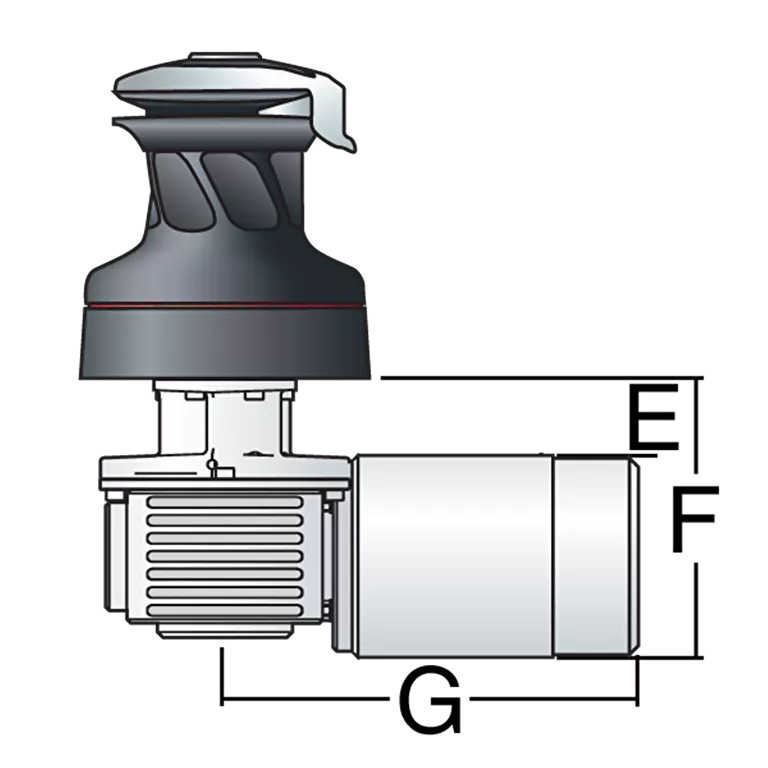

Harken 40RWA24H - Electric Self-Tailing Rewind™ Radial Aluminum Winch Reverse Speed, 24V 40.2ST Black

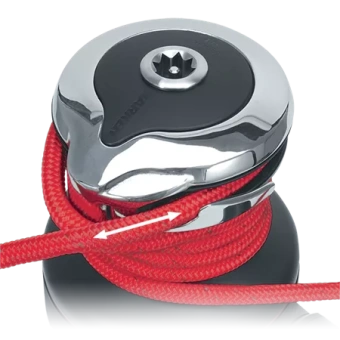

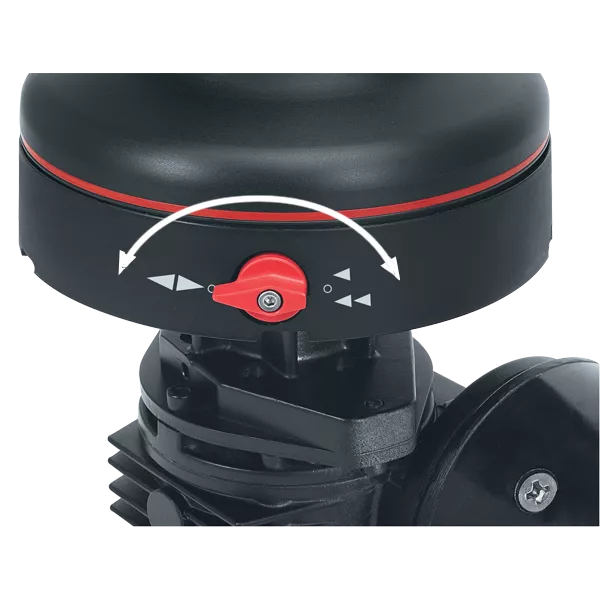

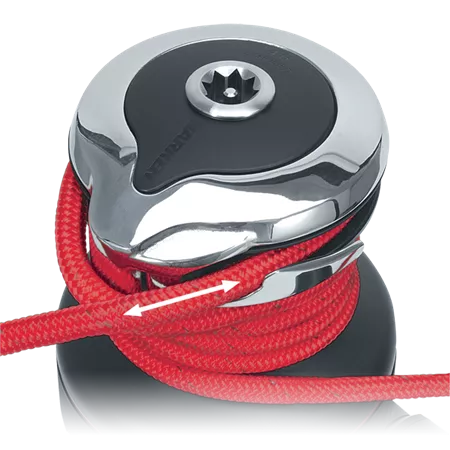

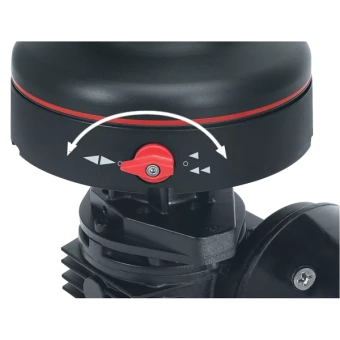

The Harken 40RWA24H provides reliable control for heavily loaded sails, allowing smooth trimming and easing in both directions without removing the line from the self-tailer. Its intuitive red knob activates the rewind feature, while the stainless steel spring-loaded arm keeps the line secure during adjustments. Each unit works with one control box, one circuit breaker, and either two analog switches or a Digital System Switch. Supplied with a compatible dual-function control box for new setups.
- Weight: 14.6 kg / 32.2 lb
- Maximum line diameter: 12 mm / 1/2 in
- Minimum line diameter: 8 mm / 5/16 in
- Fasteners: M6 SH mm / 1/4 SH in
- Fastener circle: 123 mm / 4 7/8 in
- Height: 175 mm / 6 7/8 in
- E dimension: 43 mm / 1 3/4 in
- F dimension: 155 mm / 6 1/8 in
- Configuration: Self-tailing
- Speed: 2
- Drum diameter: 80 mm / 3 1/8 in
- Base diameter: 157 mm / 6 3/16 in
- Line entry height: 82 mm / 3 1/4 in
- Number of fasteners: 5
- Gear ratios: 2.13 / 6.28
- Power ratios: 13.50 / 39.90
- Voltage: 24V
- G dimension: 280 mm / 11 in
- Material: Aluminum
- Available power: Electric horizontal 24V
- Item number: HKW40RWA24H
-
