ID
1299862
$ 6,755.22
1-2 weeks delivery time
-
+

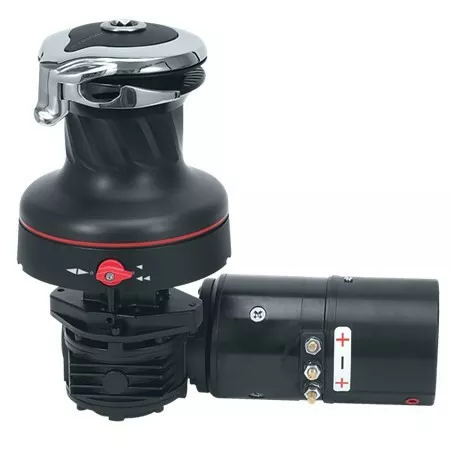

The Harken 40RWA12H is an electric self-tailing rewind radial aluminum winch operating at 12V, enabling trimming or easing heavily loaded sails in both directions while keeping the line in the self-tailer. It features a patented mechanism with a rewind function activated by a red knob and weighs 14.6 kg.
- Description
- Ask a Question
-

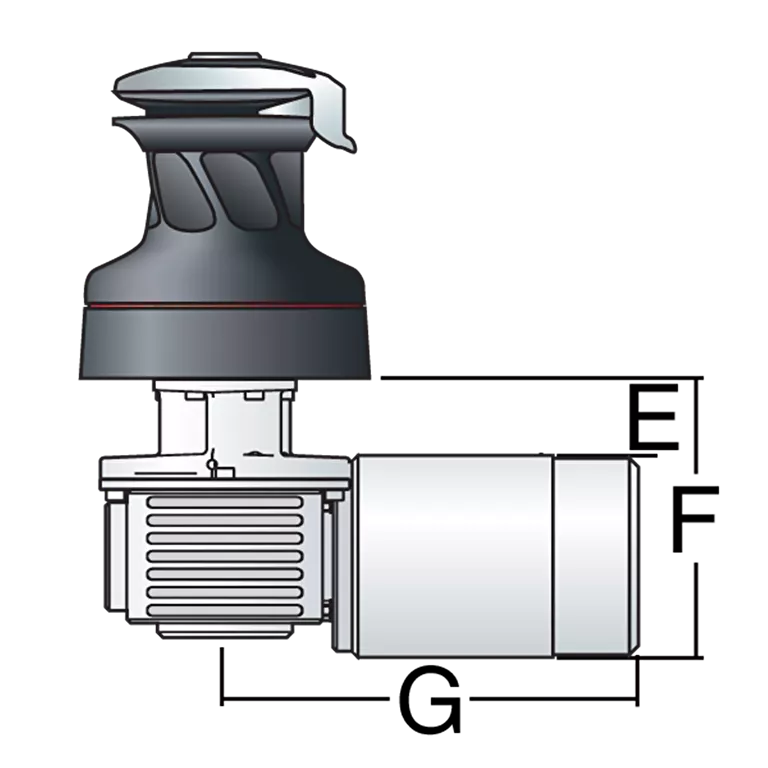

Harken 40RWA12H - Electric Self-Tailing Rewind™ Radial Aluminum Winch Reverse Speed, 12V 40.2ST Black

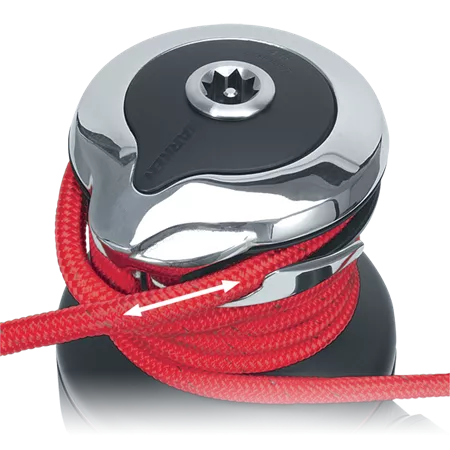

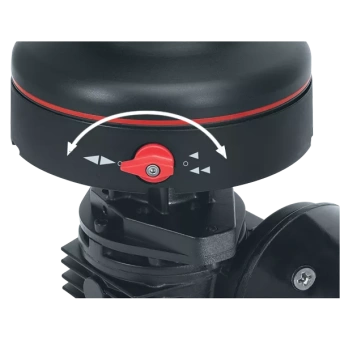

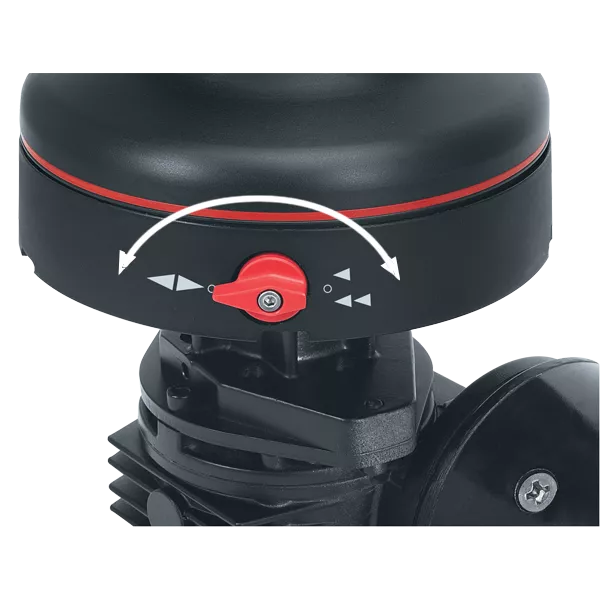

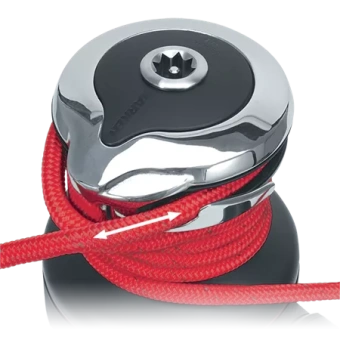

Engineered for effortless sail handling, the Harken 40RWA12H Rewind Radial allows you to trim or ease heavily loaded sails in both directions while keeping the line in the self-tailer. Its patented mechanism ensures precise fingertip control and safety during operation. A flip of the red knob engages the rewind function, and the spring-loaded stainless steel arm manages the line as it moves through the self-tailer. Requires one control box, one circuit breaker, and either two analog switches or a single Digital System Switch. Supplied with a dual-function control box for all new installations.
- Weight: 14.6 kg / 32.2 lb
- Maximum line diameter: 12 mm / 1/2 in
- Minimum line diameter: 8 mm / 5/16 in
- Fasteners: M6 SH mm / 1/4 SH in
- Fastener circle: 123 mm / 4 7/8 in
- Height: 175 mm / 6 7/8 in
- E dimension: 43 mm / 1 3/4 in
- F dimension: 155 mm / 6 1/8 in
- Configuration: Self-tailing
- Speed: 2
- Drum diameter: 80 mm / 3 1/8 in
- Base diameter: 157 mm / 6 3/16 in
- Line entry height: 82 mm / 3 1/4 in
- Number of fasteners: 5
- Gear ratios: 2.13 / 6.28
- Power ratios: 13.50 / 39.90
- Voltage: 12V
- G dimension: 280 mm / 11 in
- Material: Aluminum
- Available power: Electric horizontal 12V
- Item number: HKW40RWA12H
-
