Orka-12 12-Strand Braided Floating Polysteel Rope with Polyester Ø12-48 mm, 220 m

ID 1389036

$ 412.96

1-2 weeks delivery time

Diameter, mm:

Item:

Roll 220 m

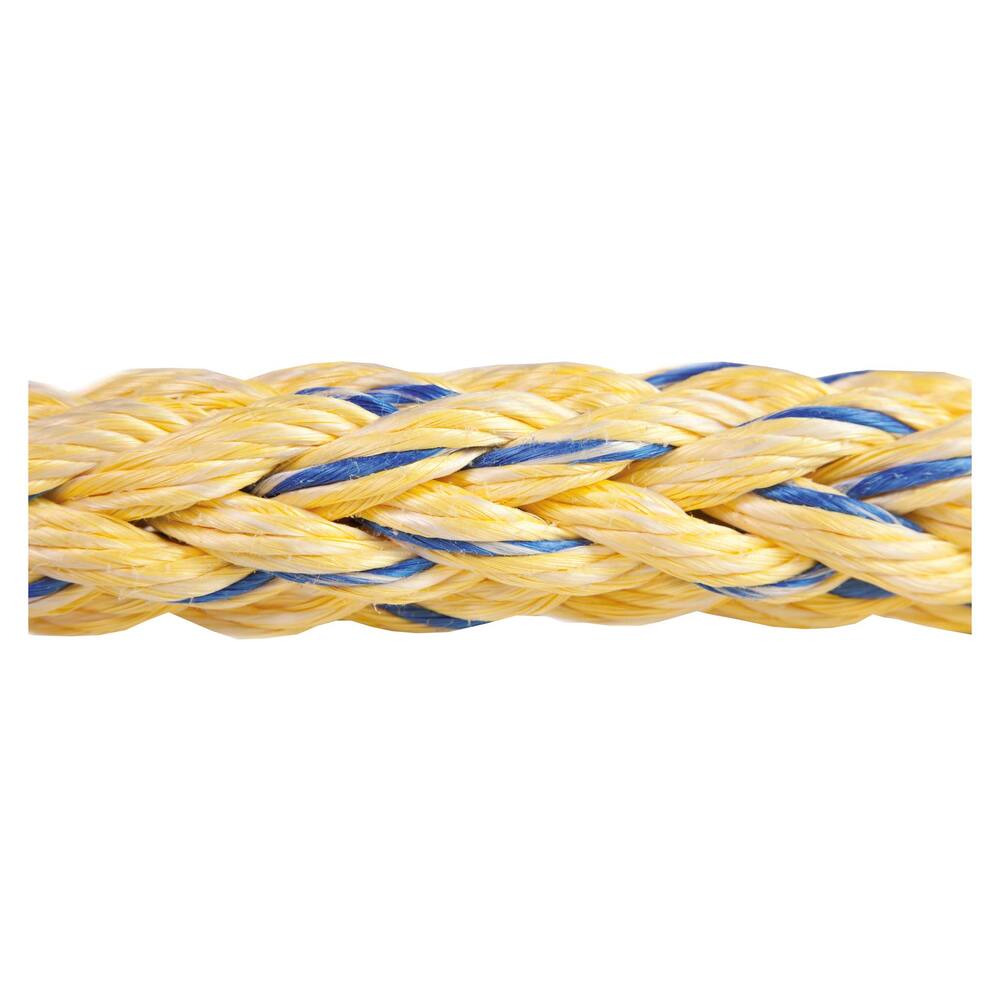

Orka-12 is a floating 12-strand braided rope made from 100% high-grade polysteel reinforced with polyester yarns to reduce wear. Supplied in 220 m coils, the range is available in 12, 14, 16, 18, 20, 24, 28, 32, 36, 40, 44 and 48 mm diameters, with linear breaking loads from 29.7 to 451.0 kN. The rope has a supple weave, twined-fibre strand structure and a Yellow/White color pattern, while polysteel is stated to be over 60% stronger than polypropylene.

Description
Ask a Question

Orka-12 - 12-Strand Braided Floating Polysteel Rope with Polyester Ø12-48 mm - 220 m

Orka-12 is a floating rope made from 100% high-grade polysteel with additional polyester reinforcement. The polyester yarns are incorporated to reduce wear, while the polysteel construction is stated to be more than 60% stronger than polypropylene.

The rope features a supple 12-strand braided construction with twined fibres and is supplied in Yellow/White on 220 m coils. The range covers diameters from 12 mm to 48 mm, with breaking loads increasing according to diameter.

Technical Features

Material: 100% high-grade polysteel with polyester.
Construction: 12-strand braided.
Strand structure: Twined fibres.
Weave: Supple.
Type: Floating rope.
Color: Yellow and White.
Polyester reinforcement added to reduce wear.
Polysteel is stated to be over 60% stronger than polypropylene.
Coil length: 220 m.

Available Variants

Diameter	Weight per 100 / 220 m	Linear Breaking Load	Length
12 mm	7.7 / 17.0 kg	29.7 kN / 3.03 t	220 m
14 mm	9.1 / 20.0 kg	36.3 kN / 3.70 t	220 m
16 mm	11.8 / 26.0 kg	47.3 kN / 4.82 t	220 m
18 mm	14.6 / 32.0 kg	66.0 kN / 6.73 t	220 m
20 mm	18.6 / 41.0 kg	76.0 kN / 7.75 t	220 m
24 mm	29.1 / 64.0 kg	115.5 kN / 11.78 t	220 m
28 mm	35.9 / 79.0 kg	148.5 kN / 15.14 t	220 m
32 mm	46.4 / 102.0 kg	204.6 kN / 20.86 t	220 m
36 mm	60.9 / 134.0 kg	257.4 kN / 26.25 t	220 m
40 mm	70.5 / 155.0 kg	313.5 kN / 31.97 t	220 m
44 mm	91.4 / 201.0 kg	383.9 kN / 39.15 t	220 m
48 mm	97.3 / 214.0 kg	451.0 kN / 45.99 t	220 m

Brand: Orka
