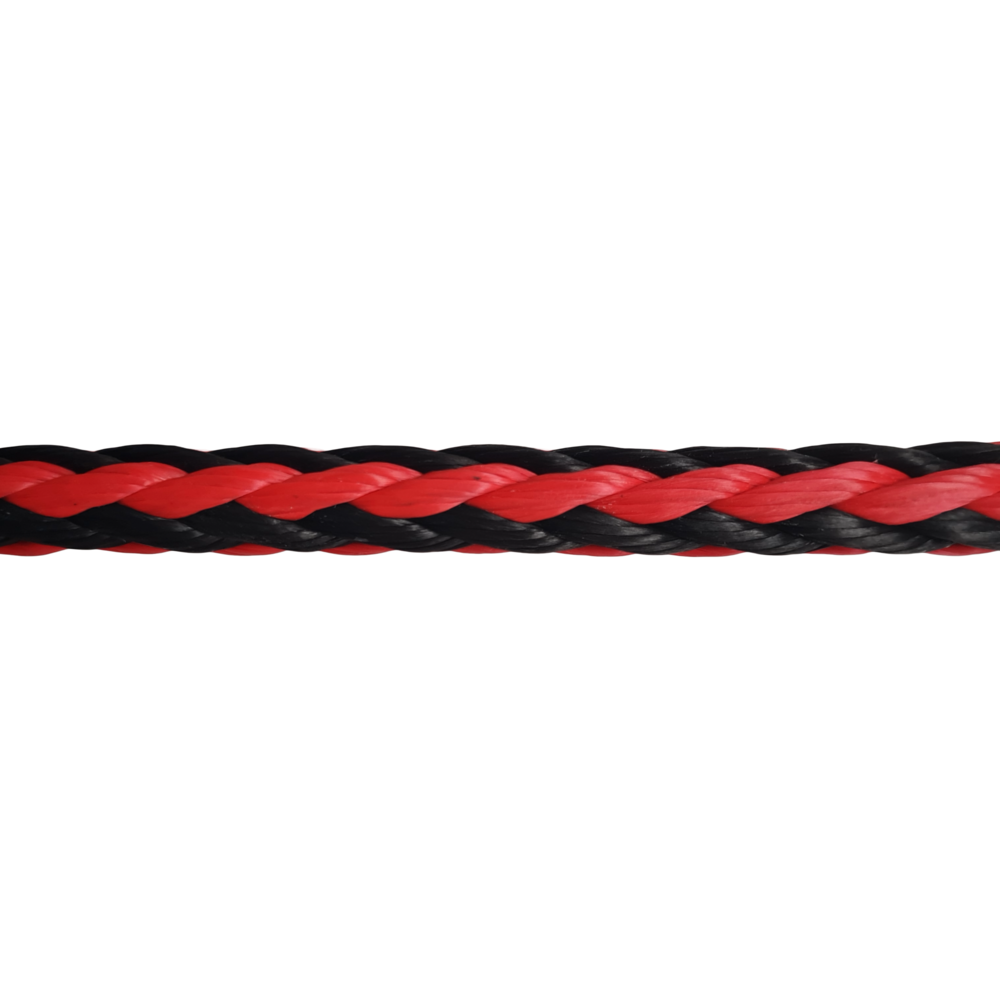

HoendeRope HMPE High-Strength Rope Ø18-24 mm, 1000 m Spool

ID 1389015

$ 14,785.28

1-2 weeks delivery time

Diameter, mm:

Color:

Red
Blue/White
Red/Black
Green/White

Item:

Roll 1000 m

HoendeRope HMPE is a high-strength, flexible rope supplied on 1000 m spools and available in 18, 20, 22 and 24 mm diameters. Depending on the variant, color options include Blue/White, Red, Green/White and Red/Black. Breaking loads range from 270.0 kN to 486.0 kN, while the rope construction is designed to make torsion easier to identify and provides substantially lower weight than steel cable.

Description
Ask a Question

HoendeRope HMPE - High-Strength Rope Ø18-24 mm, 1000 m Spool, Multiple Color Variants

HoendeRope HMPE is a high-strength rope supplied on 1000 m spools and available in several diameter and color combinations. The rope is designed as a flexible and lightweight alternative to steel cable, with a distinctive construction that helps make torsion visible during use.

The range includes 18 mm, 20 mm, 22 mm and 24 mm diameters with stated linear breaking loads from 270.0 kN to 486.0 kN. Available color configurations include Blue/White, solid Red, Green/White and Red/Black depending on the selected variant.

Technical Features

Material type: HMPE rope.
Supply length: 1000 m spool.
Available diameters: 18 mm, 20 mm, 22 mm and 24 mm.
Flexible construction.
Approximately seven times lighter than steel cable.
Designed to provide strength comparable to steel cable.
Distinctive construction helps make torsion visible.
Avoiding torsion helps maintain breaking load and extend service life.

Available Variants

Diameter	Color	Weight per 100 / 200 m	Linear Breaking Load	Length
18 mm	Green/White	15.3 / 30.6 kg	270.0 kN / 27.5 t	1000 m
18 mm	Red/Black	15.3 / 30.6 kg	270.0 kN / 27.5 t	1000 m
20 mm	Green/White	20.1 / 40.2 kg	343.0 kN / 34.9 t	1000 m
20 mm	Red/Black	20.1 / 40.2 kg	343.0 kN / 34.9 t	1000 m
22 mm	Blue/White	23.4 / 46.8 kg	400.0 kN / 40.8 t	1000 m
22 mm	Red	23.4 / 46.8 kg	400.0 kN / 40.8 t	1000 m
22 mm	Green/White	23.4 / 46.8 kg	400.0 kN / 40.8 t	1000 m
22 mm	Red/Black	23.4 / 46.8 kg	400.0 kN / 40.8 t	1000 m
24 mm	Green/White	28.4 / 56.8 kg	486.0 kN / 49.5 t	1000 m
24 mm	Red/Black	28.4 / 56.8 kg	486.0 kN / 49.5 t	1000 m

Color Configurations

Blue/White.
Red - 100% one color.
Green/White - 50% color, 50% white.
Red/Black - 50% / 50% color.

Brand: HoendeRope
