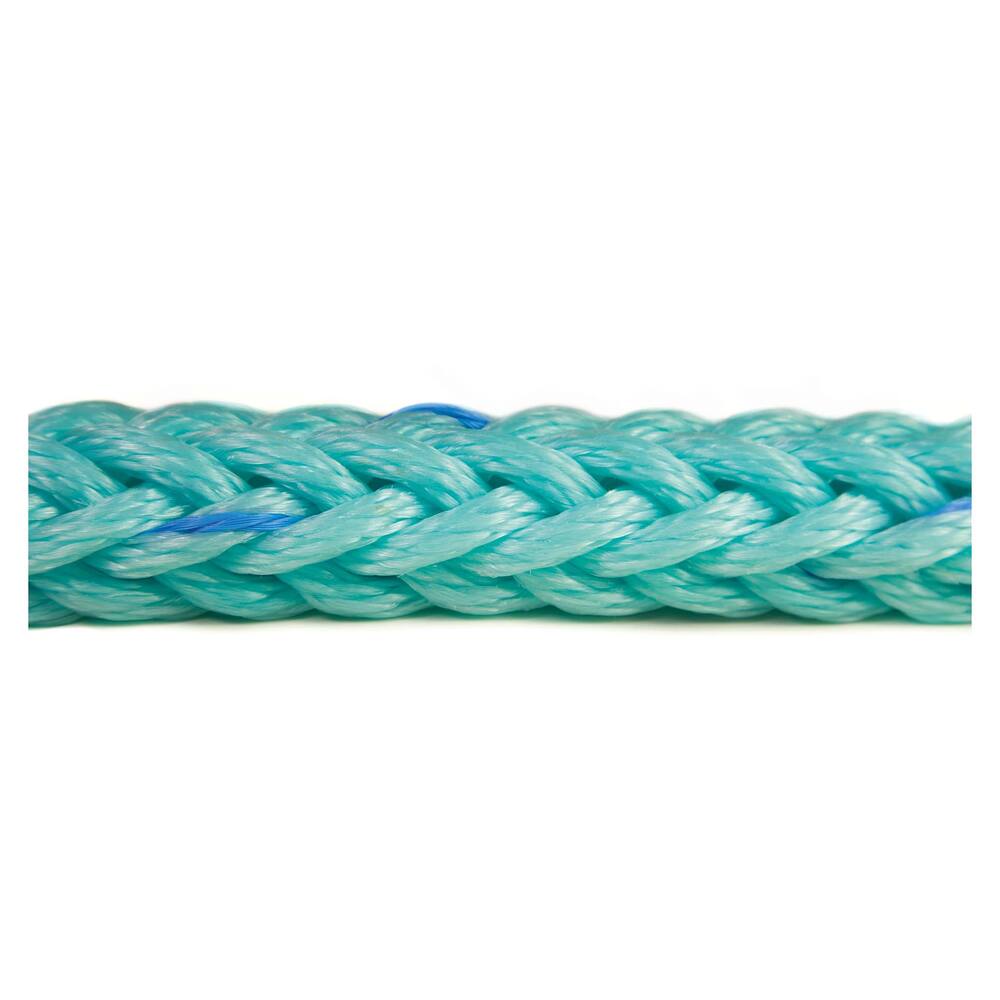

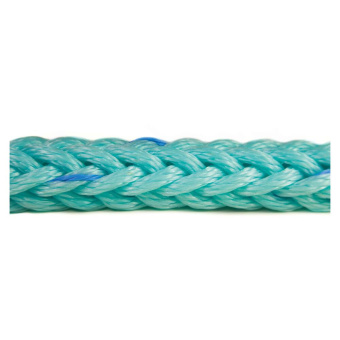

Orkava PE12 12-Strand Braided Floating Polyethylene Mooring Rope Ø32-48 mm, 220 m

ID 1389106

$ 2,693.21

1-2 weeks delivery time

Diameter, mm:

Item:

Roll 220 m

Orkava PE12 is a floating 12-strand braided mooring rope made from 100% high-grade polyethylene, supplied in 220 m coils and available in 32, 36, 40, 44 and 48 mm diameters. The Blue-Green rope with Blue Marker features a double-twined monofilament strand structure, high shock absorption, strong wear resistance and very low water absorption. Depending on diameter, linear breaking loads range from 102.0 to 219.7 kN.

Description
Ask a Question

Orkava PE12 - 12-Strand Braided Floating Polyethylene Mooring Rope Ø32-48 mm - 220 m

Orkava PE12 is a floating mooring rope designed for inland navigation. It is made from 100% high-grade polyethylene and features a 12-strand braided construction with a double-twined monofilament strand structure.

The rope is designed to handle somewhat like steel wire without jamming and is suitable for use with greased bollards when tying up vessels. Orkava PE12 provides high shock absorption and strong wear resistance. Its hydrophobic material absorbs very little water, helping the rope remain flexible in winter conditions.

Technical Features

Material: 100% high-grade polyethylene.
Construction: 12-strand braided.
Strand structure: Double-twined monofilament.
Type: Floating rope.
Color: Blue-Green with Blue Marker.
Marker tape: ORKAVA guarantee tape twisted into the strand.
High shock absorption.
High wear resistance.
Very low water absorption.
Designed for inland navigation.
Suitable for use with greased bollards.
Coil length: 220 m.

Available Variants

Diameter	Weight per 100 / 220 m	Linear Breaking Load	Length
32 mm	49.1 / 108.0 kg	102.0 kN / 10.40 t	220 m
36 mm	55.5 / 122.0 kg	127.5 kN / 13.00 t	220 m
40 mm	74.6 / 164.0 kg	153.0 kN / 15.60 t	220 m
44 mm	92.3 / 203.0 kg	184.4 kN / 18.80 t	220 m
48 mm	105.9 / 233.0 kg	219.7 kN / 22.40 t	220 m

Applications

Inland navigation.
Vessel mooring.
Use with greased bollards.

Brand: Orkava

Series: PE12
