Orka-12 Floating Polysteel Mooring Rope with 2 Spliced Eyes Ø24-48 mm

ID 1389049

$ 423.77

1-2 weeks delivery time

Diameter, mm:

Item:

55 m + 2 Eyes
75 m + 2 Eyes
85 m + 2 Eyes
110 m + 2 Eyes
30 m + 2 Eyes
40 m + 2 Eyes
60 m + 2 Eyes

Orka-12 short-length mooring ropes are made from 100% high-grade polysteel reinforced with polyester yarns to reduce wear. The floating 12-strand braided ropes are available in 24, 28, 32, 36, 40, 44 and 48 mm diameters with cut lengths from 30 to 110 m, each supplied with two spliced eyes. Depending on diameter, stated linear breaking loads range from 115.5 to 451.0 kN, while the Yellow/White rope retains a supple weave and twined-fibre strand structure.

Description
Ask a Question

Orka-12 - Floating Polysteel Mooring Rope with 2 Spliced Eyes Ø24-48 mm - Short Lengths

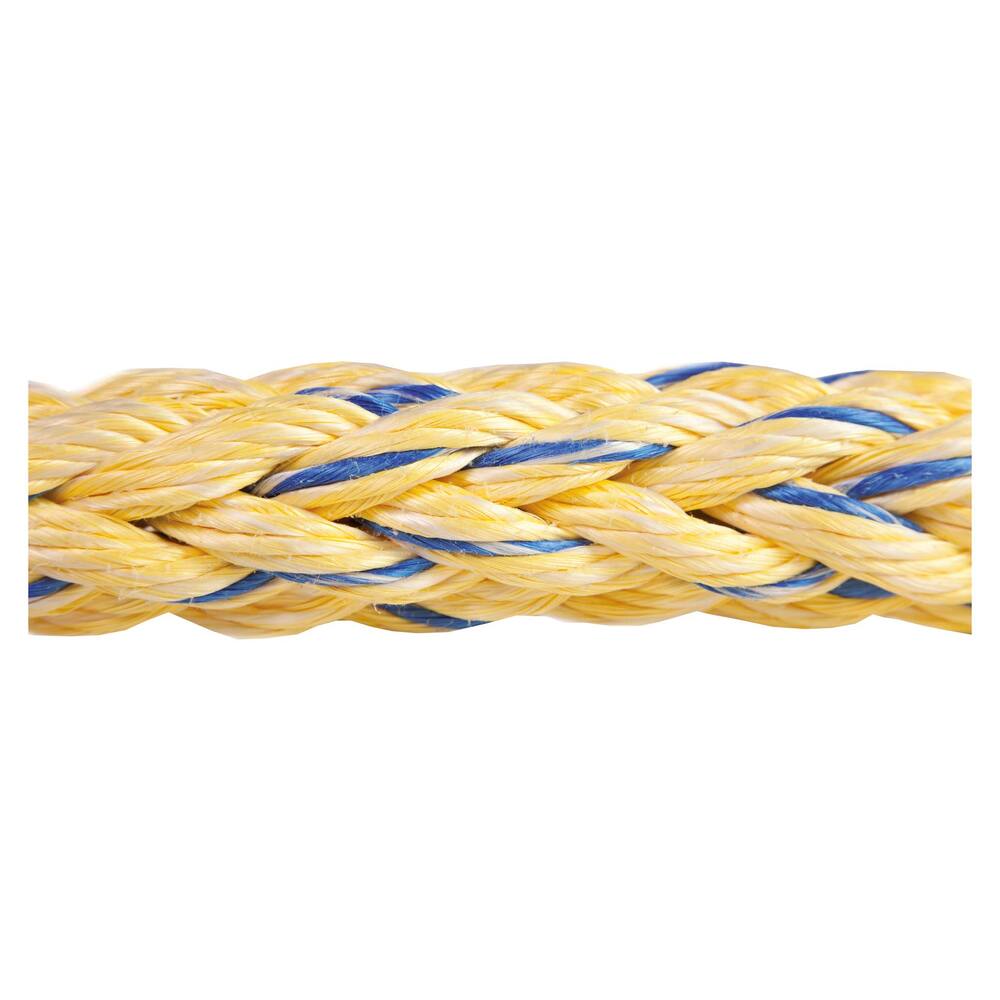

Orka-12 short-length mooring ropes are made from 100% high-grade polysteel reinforced with polyester yarns to reduce wear. The rope has a 12-strand braided construction with a supple weave and twined-fibre strand structure, and it floats on water.

Each variant is supplied as a complete mooring rope with two spliced eyes. The remaining length is calculated from the cut length after allowing for two 150 cm eyes and two 50 cm splices. The ropes are neatly packed and finished, with diameter and length marked on the packaging.

Technical Features

Material: 100% high-grade polysteel with polyester.
Construction: 12-strand braided.
Strand structure: Twined fibres.
Weave: Supple.
Type: Floating mooring rope.
Color: Yellow and White.
Polyester reinforcement for reduced wear.
Polysteel is stated to be over 60% stronger than polypropylene.
Supplied with two spliced eyes.

Available Variants

Diameter	Cut Length	Remaining Length	Linear Breaking Load
24 mm	30 m	26 m	115.5 kN / 11.78 t
24 mm	40 m	36 m	115.5 kN / 11.78 t
24 mm	55 m	51 m	115.5 kN / 11.78 t
24 mm	60 m	56 m	115.5 kN / 11.78 t
28 mm	30 m	26 m	148.5 kN / 15.14 t
28 mm	40 m	36 m	148.5 kN / 15.14 t
28 mm	55 m	51 m	148.5 kN / 15.14 t
32 mm	30 m	26 m	204.6 kN / 20.86 t
32 mm	40 m	36 m	204.6 kN / 20.86 t
32 mm	55 m	51 m	204.6 kN / 20.86 t
32 mm	75 m	71 m	204.6 kN / 20.86 t
32 mm	85 m	81 m	204.6 kN / 20.86 t
32 mm	110 m	106 m	204.6 kN / 20.86 t
36 mm	30 m	26 m	257.4 kN / 26.25 t
36 mm	40 m	36 m	257.4 kN / 26.25 t
36 mm	55 m	51 m	257.4 kN / 26.25 t
36 mm	75 m	71 m	257.4 kN / 26.25 t
36 mm	110 m	106 m	257.4 kN / 26.25 t
40 mm	30 m	26 m	313.5 kN / 31.97 t
40 mm	40 m	36 m	313.5 kN / 31.97 t
40 mm	55 m	51 m	313.5 kN / 31.97 t
40 mm	75 m	71 m	313.5 kN / 31.97 t
40 mm	110 m	106 m	313.5 kN / 31.97 t
44 mm	55 m	51 m	383.9 kN / 39.15 t
44 mm	75 m	71 m	383.9 kN / 39.15 t
44 mm	110 m	106 m	383.9 kN / 39.15 t
48 mm	55 m	51 m	451.0 kN / 45.99 t
48 mm	110 m	106 m	451.0 kN / 45.99 t

Length Configuration

Remaining length equals the cut length minus two 150 cm eyes and two 50 cm splices.

Applications

Mooring applications.
Marine applications requiring floating rope with finished spliced eyes.

Brand: Orka
