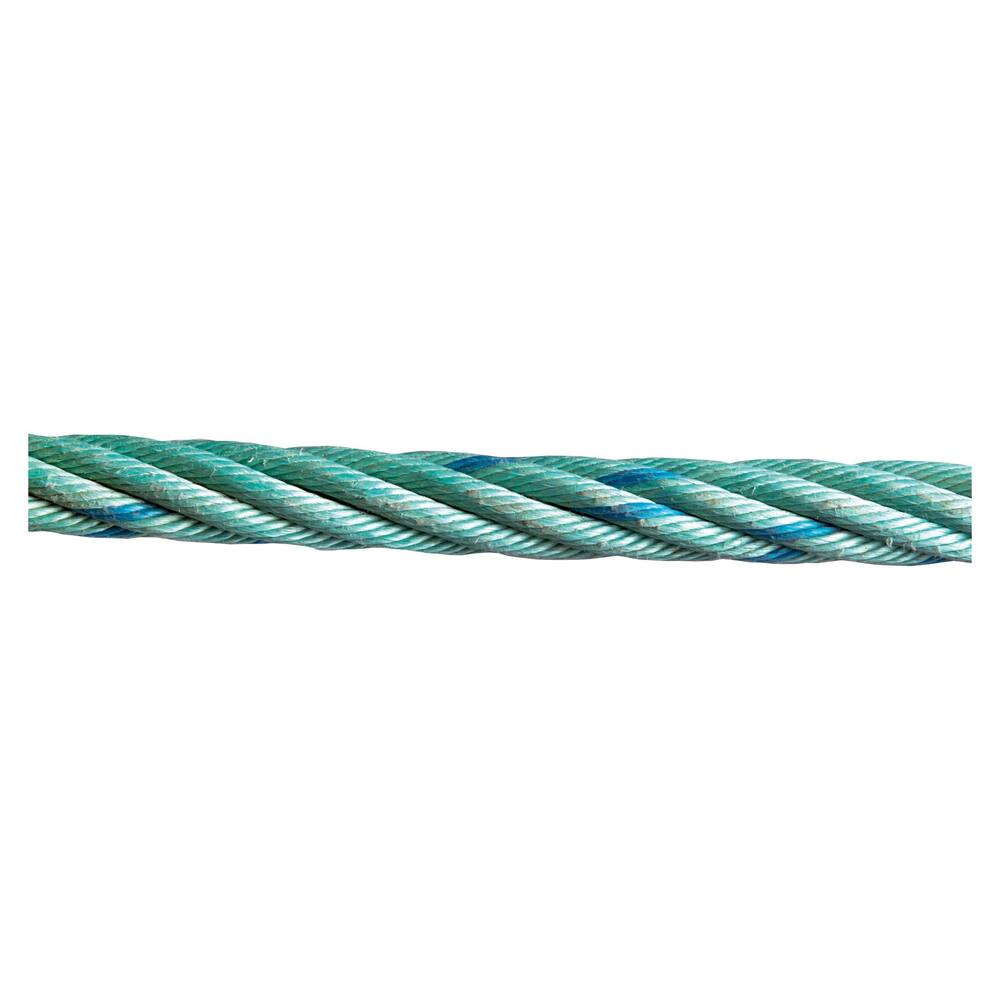

Herkules Steel Core Composite Mooring Rope with 2 Spliced Eyes Ø18-28 mm

ID 1389134

$ 586.92

1-2 weeks delivery time

Diameter, mm:

Item:

35 m + 2 Eyes
55 m + 2 Eyes
75 m + 2 Eyes
85 m + 2 Eyes
100 m + 2 Eyes

Herkules short-length ropes are steel-core composite lines supplied ready for use with two spliced eyes. The range covers 18, 20, 22, 24, 26 and 28 mm diameters with cut lengths from 35 to 100 m and remaining usable lengths from 31 to 96 m. Depending on diameter, linear breaking loads range from 81.4 to 260.0 kN, with 6x7 construction used for Ø18-20 mm and 6x8 construction used for the larger listed variants.

Description
Ask a Question

Herkules - Steel Core Composite Mooring Rope with 2 Spliced Eyes Ø18-28 mm - Short Lengths

Herkules short-length ropes are supplied as finished rope assemblies with two spliced eyes. Each length is neatly packed and finished, with the diameter and length marked on the outside of the packaging.

The range includes diameters from 18 mm to 28 mm and cut lengths from 35 m to 100 m. The remaining rope length is calculated from the cut length after allowing for two 150 cm eyes and two 50 cm splices.

Technical Features

Product type: Steel-core composite rope.
Supplied with two spliced eyes.
Available diameters: 18 mm, 20 mm, 22 mm, 24 mm, 26 mm and 28 mm.
Available cut lengths: 35 m to 100 m depending on diameter.
Ø18 mm and Ø20 mm versions: 6x7 + 1 steel core.
Ø22-28 mm versions: 6x8 + 1 steel core.
Each length is neatly packed and finished.
Packaging is marked with diameter and length.

Available Variants

Diameter	Construction	Cut Length	Remaining Length	Linear Breaking Load
18 mm	6x7 + 1 Steel Core	35 m	31 m	81.4 kN / 8.3 t
18 mm	6x7 + 1 Steel Core	100 m	96 m	81.4 kN / 8.3 t
20 mm	6x7 + 1 Steel Core	35 m	31 m	105.9 kN / 9.8 t
20 mm	6x7 + 1 Steel Core	55 m	51 m	105.9 kN / 9.8 t
20 mm	6x7 + 1 Steel Core	75 m	71 m	105.9 kN / 9.8 t
20 mm	6x7 + 1 Steel Core	100 m	96 m	105.9 kN / 9.8 t
22 mm	6x8 + 1 Steel Core	55 m	51 m	123.6 kN / 12.6 t
22 mm	6x8 + 1 Steel Core	75 m	71 m	123.6 kN / 12.6 t
22 mm	6x8 + 1 Steel Core	100 m	96 m	123.6 kN / 12.6 t
24 mm	6x8 + 1 Steel Core	55 m	51 m	208.0 kN / 21.2 t
24 mm	6x8 + 1 Steel Core	75 m	71 m	208.0 kN / 21.2 t
24 mm	6x8 + 1 Steel Core	85 m	81 m	208.0 kN / 21.2 t
24 mm	6x8 + 1 Steel Core	100 m	96 m	208.0 kN / 21.2 t
26 mm	6x8 + 1 Steel Core	55 m	51 m	235.0 kN / 23.95 t
26 mm	6x8 + 1 Steel Core	75 m	71 m	235.0 kN / 23.95 t
28 mm	6x8 + 1 Steel Core	55 m	51 m	260.0 kN / 26.5 t
28 mm	6x8 + 1 Steel Core	75 m	71 m	260.0 kN / 26.5 t
28 mm	6x8 + 1 Steel Core	100 m	96 m	260.0 kN / 26.5 t

Length Configuration

Remaining length equals the cut length minus two 150 cm eyes and two 50 cm splices.

Brand: Herkules
