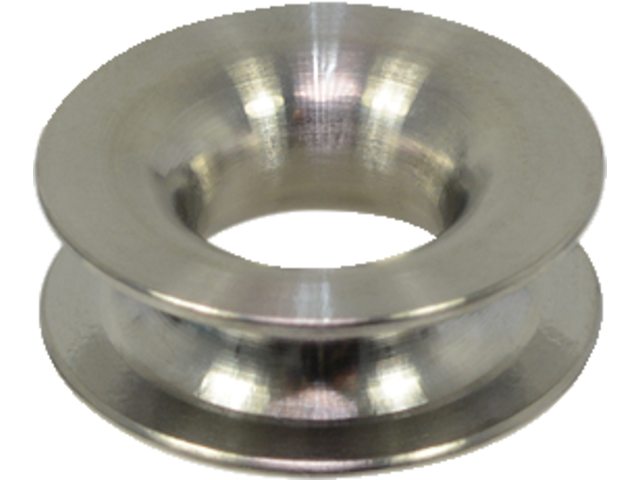

Clamcleat PT5107 / PT5110 Titanium High Load Thimbles for 3–6 mm Rope

ID 1395152

$ 334.16

1-2 weeks delivery time

Diameter, mm:

Clamcleat PT5107 and PT5110 are solid titanium high-load thimbles designed for demanding racing and rigging applications. Lightweight, strong, abrasion resistant and corrosion proof, they can be used with fibre or steel wire rope and as low-friction alternatives to small pulley blocks. PT5107 is sized for 3–4 mm rope, while PT5110 is designed for 5–6 mm rope.

Description
Ask a Question

Clamcleat PT5107 / PT5110 Titanium High Load Thimbles for 3–6 mm Rope

Clamcleat PT5107 and PT5110 are solid titanium high-load thimbles designed for compact, low-friction rope routing in racing and rigging applications.

The titanium construction combines low weight with high strength, abrasion resistance and corrosion resistance. The thimbles can be used with fibre ropes or steel wire ropes and are suitable as simple alternatives to small pulley blocks where a compact and durable turning point is required.

PT5107 is designed for 3–4 mm rope and has a 7 mm centre hole. PT5110 is the larger version for 5–6 mm rope with a 10 mm centre hole.

Product Features

Brand: Clamcleat
Models: PT5107 and PT5110
Product type: High-load rope thimble
Material: Solid titanium
Lightweight and high-strength construction
Abrasion resistant
Corrosion proof
Suitable for high-load racing applications
Suitable for fibre rope and steel wire rope
Can be used as a compact alternative to pulley blocks
Suitable for standing and running rigging applications

Available Variants

Model	Article Number	Rope Diameter	Hole Diameter	Dimensions (L × W × H)	Weight
PT5107	65500125	3–4 mm (1/8–5/32")	7 mm	16 × 16 × 6 mm	Approx. 2 g
PT5110	65500126	5–6 mm (3/16–1/4")	10 mm	23 × 23 × 8 mm	Approx. 4.5 g

Technical Specifications

Parameter	Specification
Material	Titanium
Rope Compatibility	Fibre rope or steel wire rope
Construction	Solid titanium thimble
Application	High-load racing and rigging systems
Pack Quantity	1 pc
