Clamcleat CL248 is a compact cleat with an integrated hook and three sheaves for 3–5 mm (1/8–3/16") rope. It hooks directly into a sail eye and, when used with a suitable pulley block, provides a 6:1 mechanical advantage for powerful line tensioning. The CL248 is used in windsurfing and sand yachting applications, including Blokart sail shape and tension adjustment.
- Description
- Ask a Question
-
Clamcleat CL248 Cleat with Hook and 3 Sheaves for 3–5 mm Rope, Aluminium & Nylon

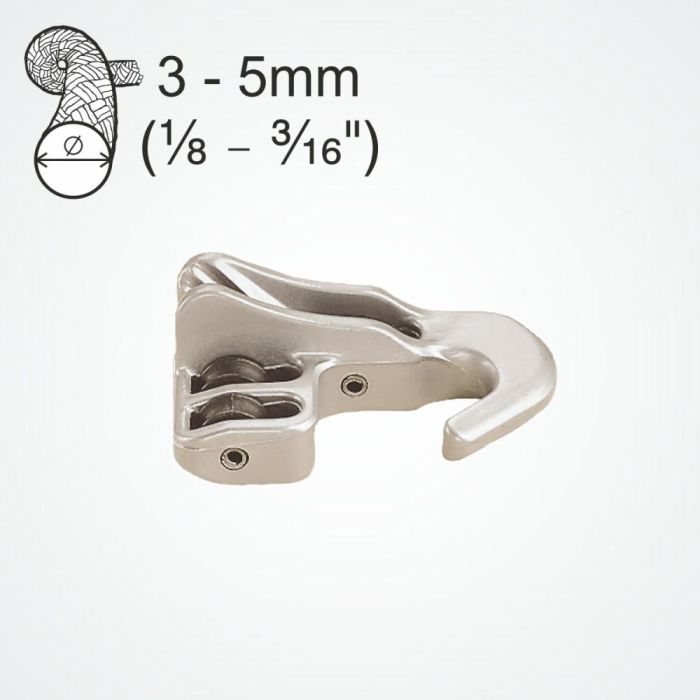

Clamcleat CL248 is a compact rope cleat with an integrated hook and three sheaves, designed for ropes from 3 to 5 mm (1/8–3/16").

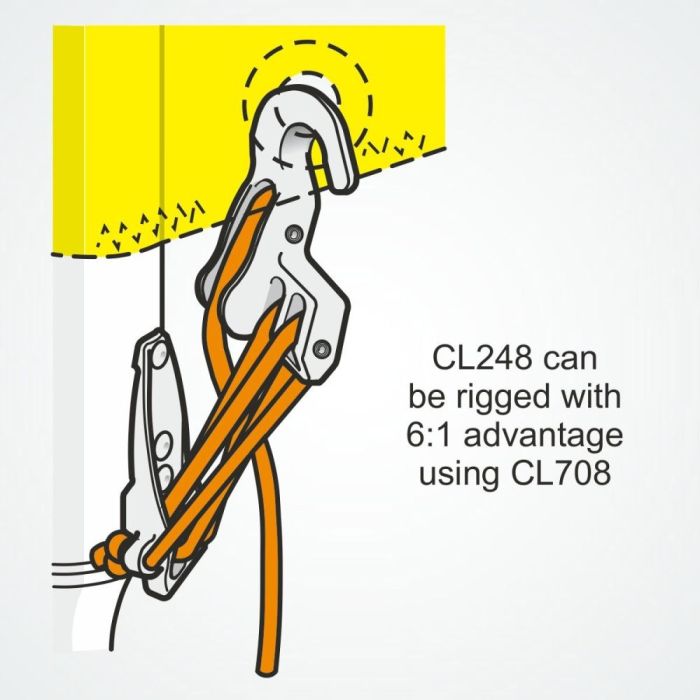

The hook allows the cleat to attach directly to the eye of a sail. When combined with a suitable pulley block, the three-sheave arrangement provides a 6:1 mechanical advantage for powerful and controlled line tensioning.
The CL248 is suitable for windsurfing and sand yachting applications. It is also used in Blokart systems for adjusting sail shape and tension.
Product Features
- Brand: Clamcleat
- Model: CL248
- Product type: Cleat with hook and 3 sheaves
- Material: Aluminium & Nylon
- Rope diameter: 3–5 mm (1/8–3/16")
- Integrated hook for attachment to a sail eye
- Three-sheave configuration
- Provides 6:1 mechanical advantage when used with a suitable pulley block
- Suitable for windsurfing
- Suitable for sand yachting
- Used for sail shape and tension adjustment

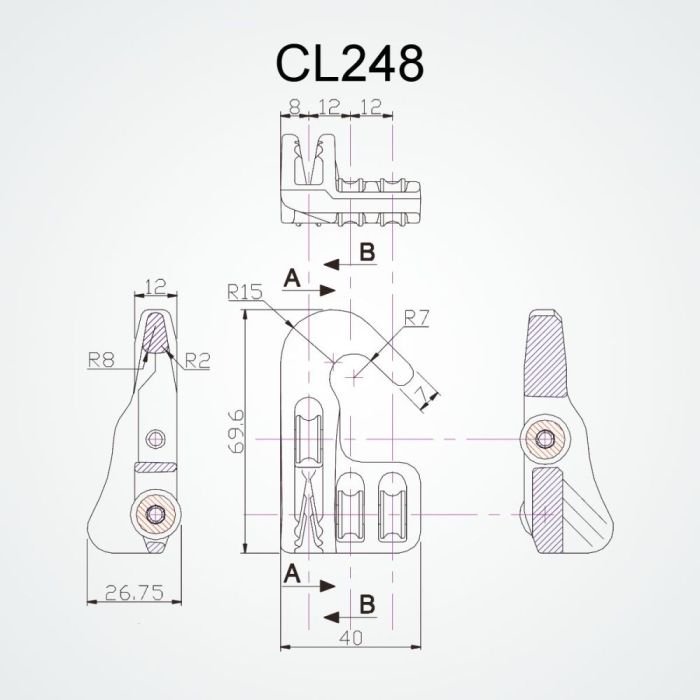

Technical Specifications
Parameter Specification Model CL248 Rope Diameter 3–5 mm (1/8–3/16") Material Aluminium & Nylon Length 70 mm Width 40 mm Height 27 mm Weight Approx. 52 g Sheaves 3 Mechanical Advantage 6:1 with suitable pulley block -
