Clamcleat CL247 Compact Twin Sheave Cleat for 3–5 mm Rope

ID 1395160

$ 23.10

1-2 weeks delivery time

- +

Add to cart

Clamcleat CL247 Compact Twin Sheave Cleat is a lightweight aluminium cleat with composite nylon rollers, designed for 3–5 mm (1/8–3/16") rope. It can be fitted to mast extensions or tubes using rivets or screws and is particularly suitable for creating a 6:1 downhaul system. The composite rollers are designed to resist wear from coral sand, making the cleat well suited to windsurfing and demanding marine use.

Description
Ask a Question

Clamcleat CL247 Compact Twin Sheave Cleat for 3–5 mm Rope, Aluminium & Nylon

Clamcleat CL247 Compact Twin Sheave Cleat is a lightweight and durable rope cleat designed for lines from 3 to 5 mm (1/8–3/16").

The cleat body is manufactured from high-pressure die-cast aluminium, while the twin rollers are made from composite nylon designed to withstand wear from coral sand and similar abrasive conditions.

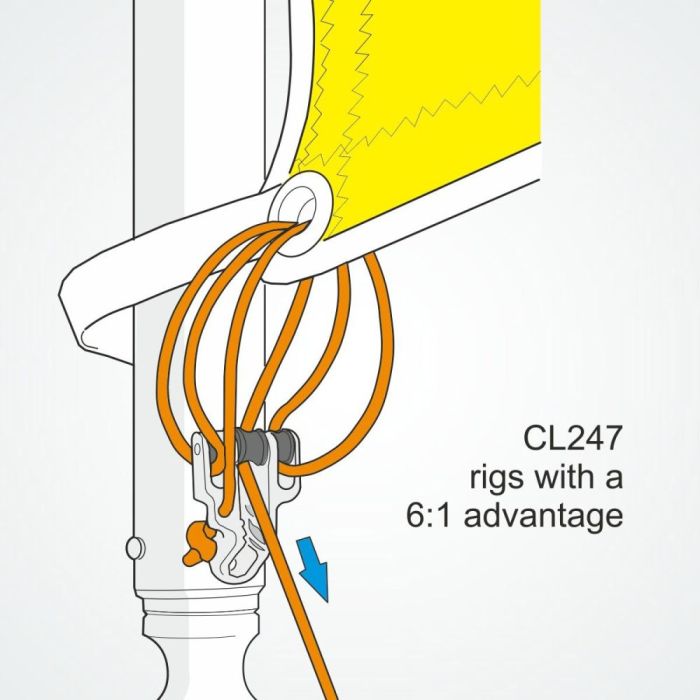

The CL247 can be mounted on mast extensions or tubes using rivets or screws. Its twin-sheave arrangement makes it particularly suitable for building a 6:1 windsurf downhaul system.

For additional pulling power during tensioning, the CL247 can be used together with Clamcleat Power Grip models such as CL261 or CL262.

Product Features

Brand: Clamcleat
Model: CL247
Product type: Compact twin sheave cleat
Material: Aluminium & Nylon
Rope diameter: 3–5 mm (1/8–3/16")
High-pressure die-cast aluminium body
Twin composite nylon rollers
Rollers designed to resist wear from coral sand
Suitable for mounting on mast extensions and tubes
Can be installed using rivets or screws
Suitable for 6:1 downhaul systems
Lightweight and compact construction

Technical Specifications

Parameter	Specification
Model	CL247
Rope Diameter	3–5 mm (1/8–3/16")
Material	Aluminium & Nylon
Hole Centres	31 mm
Length	53 mm
Width	40 mm
Height	24 mm
Bolt Size	M5
Screw Size	4.8 mm / No. 10
Weight	Approx. 40 g
Recommended System	6:1 downhaul
