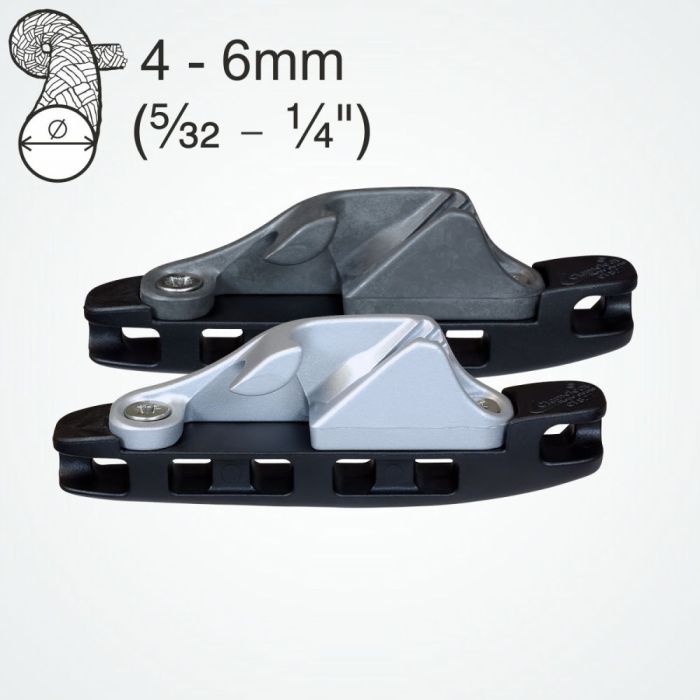

Clamcleat CL827-18 Aero Cleats with CL218 Mk1 Side-Entry Port for 4–6 mm Rope

ID 1395110

$ 27.13

1-2 weeks delivery time

Color:

Silver
Hard Anodised

Clamcleat CL827-18 Aero cleats are rope-mounted aluminium and nylon assemblies for 4–6 mm (5/32–1/4") lines, combining the CL827 Aero base with a CL218 Mk1 Side-Entry Racing Junior port cleat. The side-entry fairlead allows quick rigging and de-rigging without unthreading the rope, while the complete assembly can provide a 2:1 mechanical advantage and be repositioned by hand without tools. Suitable for tents, sports netting, hammocks, canvas structures, tie-downs, radio masts and aerials. Available in silver or hard-anodised versions.

Description
Ask a Question

Clamcleat CL827-18 Aero Cleats with CL218 Mk1 Side-Entry Port for 4–6 mm Rope, Silver or Hard Anodised

Clamcleat CL827-18 is a rope-mounted Aero cleat assembly designed for ropes from 4 to 6 mm (5/32–1/4").

The system combines the CL827 Aero base with a CL218 Mk1 Side-Entry Racing Junior cleat in port orientation. The side-entry fairlead allows the rope to be hooked into the cleat quickly and removed again without having to unthread the line.

The assembly can be rigged to provide a 2:1 mechanical advantage, while the cleat position can be adjusted by hand without tools. This makes the CL827-18 suitable for applications where frequent repositioning, rigging and de-rigging are required.

Typical uses include tents, sports netting, hammocks, canvas structures, tie-downs, radio masts and aerials.

The range is available in two versions: CL827-18 with a silver-finished CL218 Mk1 cleat and CL827-18AN with a hard-anodised CL218 Mk1AN cleat for increased surface durability.

Product Features

Brand: Clamcleat
Series: Aero Cleat with CL218 Mk1 Side-Entry
Models: CL827-18 and CL827-18AN
Orientation: Port
Product type: Rope-mounted Aero cleat assembly
Aero base: CL827
Cleat: CL218 Mk1 Side-Entry Racing Junior
Material: Aluminium and nylon
Rope diameter: 4–6 mm (5/32–1/4")
Side-entry fairlead for quick rigging and de-rigging
No need to unthread the rope when removing the cleat
Can provide 2:1 mechanical advantage
Position adjustable by hand
No tools required for adjustment
Strong and wear-resistant construction
Suitable for tents and sports netting
Suitable for hammocks and canvas structures
Suitable for tie-downs, radio masts and aerials

Technical Specifications

Parameter	Specification
Rope Diameter	4–6 mm (5/32–1/4")
Material	Aluminium & Nylon
Length	112 mm
Width	19 mm
Height	38 mm
Weight	Approx. 59 g
Mechanical Advantage	2:1
Adjustment	Hand adjustable on rope
Mounting	Rope-mounted, no tools required

Available Variants

Model	Cleat	Finish	Rope Diameter
CL827-18	CL218 Mk1 Port	Silver stove enamel	4–6 mm
CL827-18AN	CL218 Mk1AN Port	Hard anodised	4–6 mm
