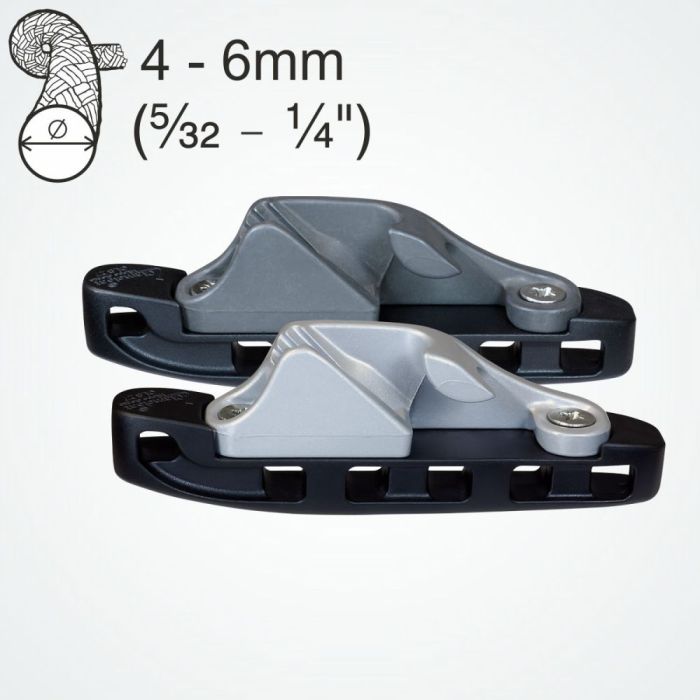

Clamcleat CL827-17 Aero Cleats with CL217 Mk1 Side-Entry Starboard for 4–6 mm Rope

ID 1395107

$ 27.13

1-2 weeks delivery time

Color:

Silver
Hard Anodised

Clamcleat CL827-17 Aero cleats are rope-mounted aluminium and nylon assemblies for 4–6 mm (5/32–1/4") lines, combining the CL827 Aero base with a CL217 Mk1 Side-Entry Racing Junior starboard cleat. The side-entry fairlead allows quick rigging and de-rigging without unthreading the rope, while the complete assembly can provide a 2:1 mechanical advantage and be repositioned by hand without tools. Suitable for sports netting, hammocks, canvas structures, tie-downs, radio masts, aerials and sun sails. Available in silver or hard-anodised versions.

Description
Ask a Question

Clamcleat CL827-17 Aero Cleats with CL217 Mk1 Side-Entry Starboard for 4–6 mm Rope, Silver or Hard Anodised

Clamcleat CL827-17 is a rope-mounted Aero cleat assembly designed for ropes from 4 to 6 mm (5/32–1/4").

The system combines the CL827 Aero base with a CL217 Mk1 Side-Entry Racing Junior cleat in starboard orientation. The special side-entry fairlead allows the rope to be hooked into the cleat for quick rigging and removed again without having to unthread the line.

The assembly can be rigged to provide a 2:1 mechanical advantage, and the cleat position can be adjusted by hand without tools. This makes the CL827-17 suitable for applications where rapid setup, repositioning and de-rigging are important.

Typical uses include sports netting, hammocks, canvas structures, tie-downs, radio masts, aerials and sun sails.

The range is available in two versions: CL827-17 with a silver-finished CL217 Mk1 cleat and CL827-17AN with a hard-anodised CL217 Mk1AN cleat for increased surface durability.

Product Features

Brand: Clamcleat
Series: Aero Cleat with CL217 Mk1 Side-Entry
Models: CL827-17 and CL827-17AN
Orientation: Starboard
Product type: Rope-mounted Aero cleat assembly
Aero base: CL827
Cleat: CL217 Mk1 Side-Entry Racing Junior
Material: Aluminium and nylon
Rope diameter: 4–6 mm (5/32–1/4")
Side-entry fairlead for quick rigging and de-rigging
No need to unthread the rope when removing the cleat
Can provide 2:1 mechanical advantage
Position adjustable by hand
No tools required for adjustment
Strong and wear-resistant construction
Suitable for sports netting and hammocks
Suitable for canvas structures and tie-downs
Suitable for radio masts, aerials and sun sails

Technical Specifications

Parameter	Specification
Rope Diameter	4–6 mm (5/32–1/4")
Material	Aluminium & Nylon
Length	112 mm
Width	19 mm
Height	38 mm
Weight	Approx. 60 g
Mechanical Advantage	2:1
Adjustment	Hand adjustable on rope
Mounting	Rope-mounted, no tools required

Available Variants

Model	Cleat	Finish	Rope Diameter
CL827-17	CL217 Mk1 Starboard	Silver stove enamel	4–6 mm
CL827-17AN	CL217 Mk1AN Starboard	Hard anodised	4–6 mm
