Clamcleat CL828-77 Aero Cleats with CL277 Side-Entry Racing Micros for 3–4 mm Rope

ID 1395123

$ 21.07

1-2 weeks delivery time

Color:

Silver
Hard Anodised

Clamcleat CL828-77 Aero cleats are compact rope-mounted assemblies for 3–4 mm (1/8–5/32") lines, combining the CL828 Aero base with a CL277 Side-Entry Racing Micros cleat in starboard orientation. The side-entry fairlead allows the rope to be hooked in quickly for fast rigging and de-rigging, while the integrated becket supports either 2:1 or 4:1 rigging. The cleat position can be adjusted by hand without tools, making the system suitable for sports netting, hammocks, canvas structures, tie-downs, radio masts and aerials. Available in silver or hard-anodised versions.

Description
Ask a Question

Clamcleat CL828-77 Aero Cleats with CL277 Side-Entry Racing Micros for 3–4 mm Rope, Silver or Hard Anodised

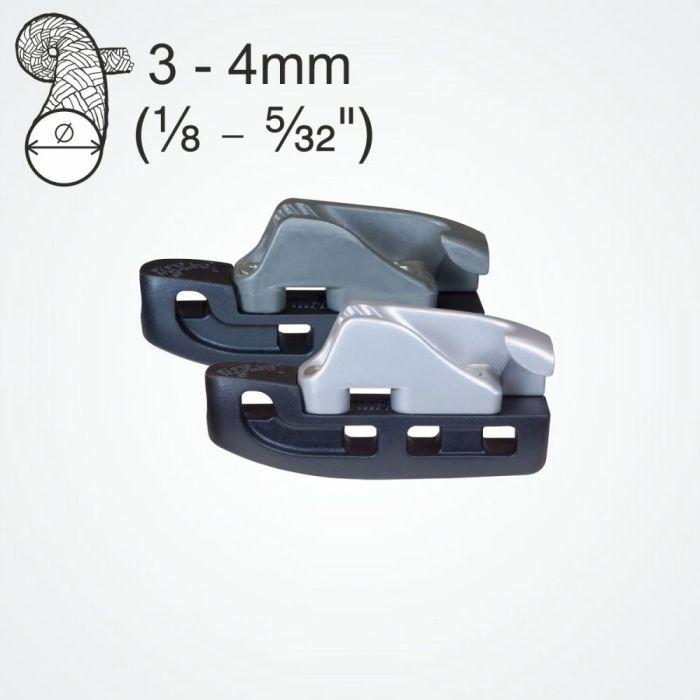

Clamcleat CL828-77 is a compact rope-mounted Aero cleat assembly designed for ropes from 3 to 4 mm (1/8–5/32").

The system combines the CL828 Aero base with a CL277 Side-Entry Racing Micros cleat in starboard orientation. The side-entry fairlead allows the rope to be hooked underneath the cleat for quick rigging and de-rigging without having to fully unthread the line.

The assembly can be rigged at a 2:1 ratio, or the integrated becket can be used to create a 4:1 system where additional mechanical advantage is required.

The cleat position on the rope can be adjusted by hand without tools, making the CL828-77 easy to set up and reposition.

Typical applications include sports netting, hammocks, canvas structures, tie-downs, radio masts and aerials.

The range is available in two versions: CL828-77 with a silver CL277 aluminium cleat and CL828-77AN with a hard-anodised CL277AN cleat for increased surface durability.

Product Features

Brand: Clamcleat
Series: Aero Cleat with CL277 Side-Entry Racing Micros
Models: CL828-77 and CL828-77AN
Orientation: Starboard
Product type: Rope-mounted Aero cleat assembly
Aero base: CL828
Cleat: CL277 Side-Entry Racing Micros
Material: Aluminium and nylon
Rope diameter: 3–4 mm (1/8–5/32")
Side-entry fairlead for quick rigging and de-rigging
Integrated becket for higher mechanical advantage
Supports 2:1 or 4:1 rigging
Position adjustable by hand
No tools required for adjustment
Compact, strong and wear-resistant construction
Suitable for sports netting
Suitable for hammocks and canvas structures
Suitable for tie-downs, radio masts and aerials

Technical Specifications

Parameter	Specification
Rope Diameter	3–4 mm (1/8–5/32")
Material	Aluminium & Nylon
Length	60 mm
Width	13 mm
Height	31 mm
Weight	Approx. 22 g
Mechanical Advantage	2:1 or 4:1 via integrated becket
Adjustment	Hand adjustable on rope
Mounting	Rope-mounted, no tools required

Available Variants

Model	Cleat	Finish	Rope Diameter
CL828-77	CL277 Side-Entry Racing Micros, Starboard	Silver stove enamel	3–4 mm
CL828-77AN	CL277AN Side-Entry Racing Micros, Starboard	Hard anodised	3–4 mm
