ID
1395191
$ 4.49
1-2 weeks delivery time
-
+

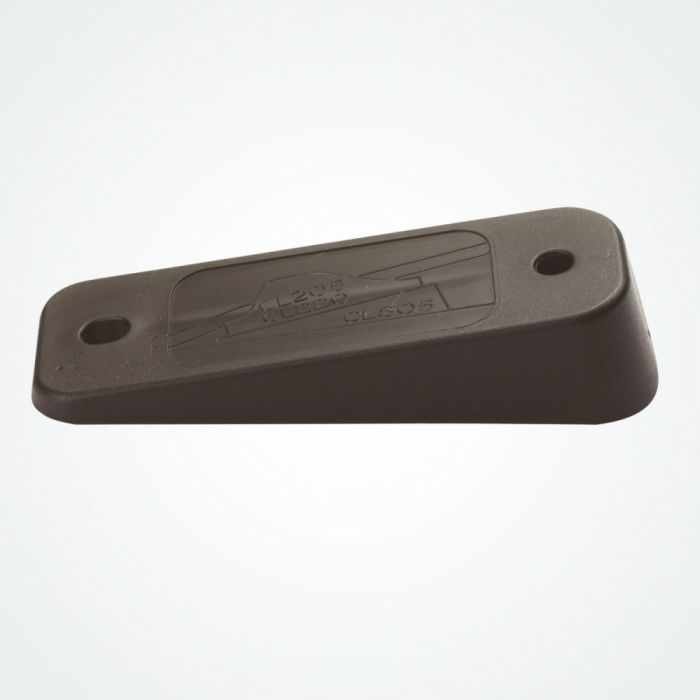

Clamcleat CL804 is a polypropylene tapered pad designed to improve rope alignment and cleating with CL201, CL219, CL219AN, CL237 and CL238 cleats. It can be mounted in either orientation to adjust the rope-to-cleat angle and improve line entry. The pad is sized for cleats handling 6–12 mm rope and can also be used as a simple wedge when needed.
- Description
- Ask a Question
-
Clamcleat CL804 Tapered Pad for CL201, CL219, CL219AN, CL237 & CL238 Cleats, Polypropylene
Clamcleat CL804 is a tapered mounting pad designed to improve rope alignment and make cleating easier with compatible Clamcleat vertical cleats.

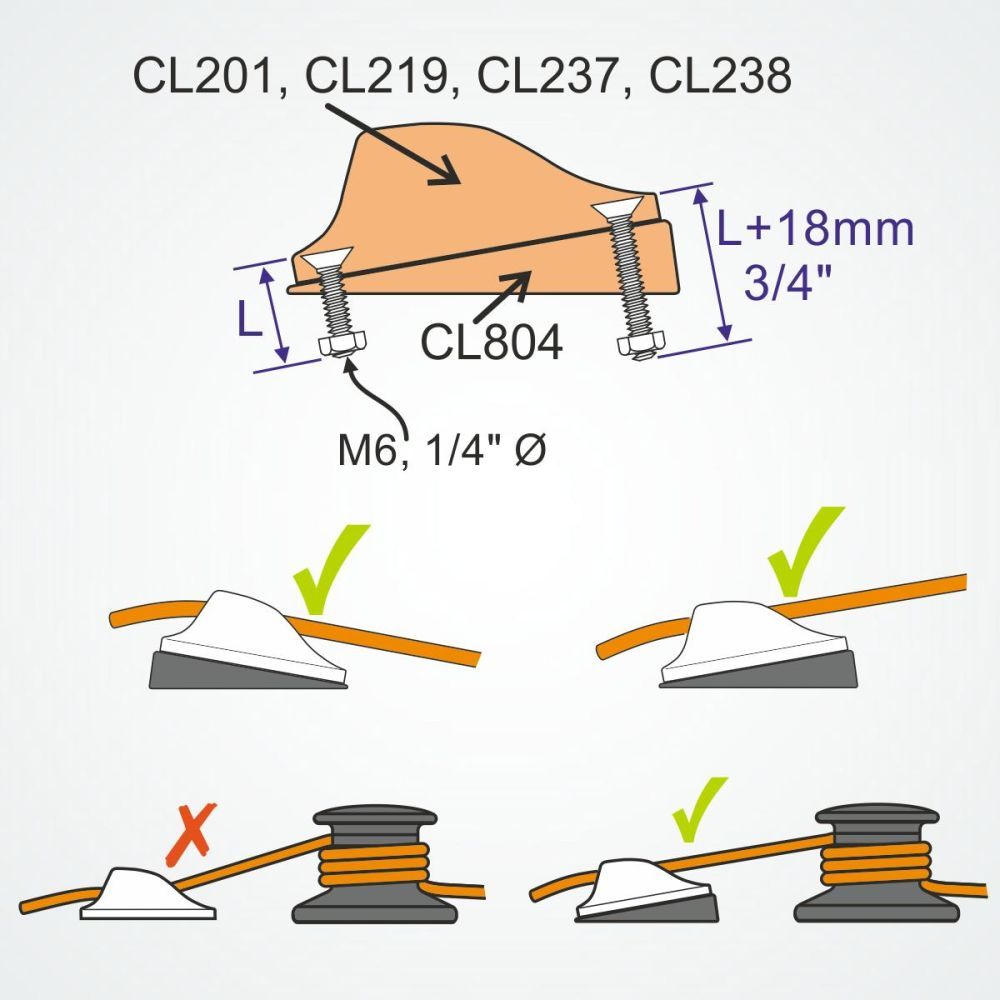

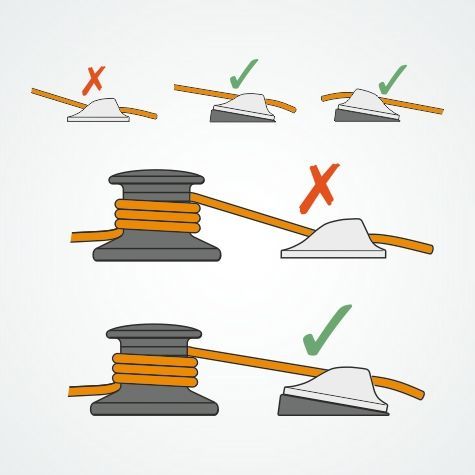

The pad fits beneath CL201, CL219, CL219AN, CL237 and CL238 cleats and can be mounted in either orientation. This allows the cleat angle to be adjusted to better match the direction of the rope and provide a more direct line into the cleat teeth.
The CL804 is manufactured from polypropylene and uses the same 72 mm mounting centres as the compatible cleats. It is designed for cleats handling ropes from 6 to 12 mm.
In addition to its primary use as a cleat mounting pad, the tapered shape can also be used as a simple wedge.
Product Features
- Brand: Clamcleat
- Model: CL804
- Product type: Tapered cleat mounting pad
- Material: Polypropylene
- Improves rope-to-cleat alignment
- Helps provide easier and more direct cleating
- Can be mounted in either orientation
- Compatible with CL201 Vertical Cleat
- Compatible with CL219 and CL219AN Racing Vertical Cleats
- Compatible with CL237 Vertical Cleat with Spring Gate
- Compatible with CL238 Racing Vertical Cleat with Spring Gate
- Designed for cleats handling 6–12 mm rope
- Can also be used as a simple wedge

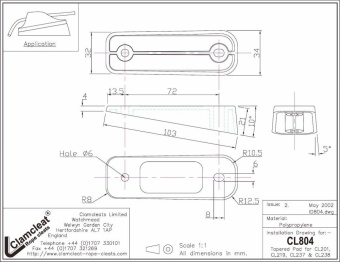

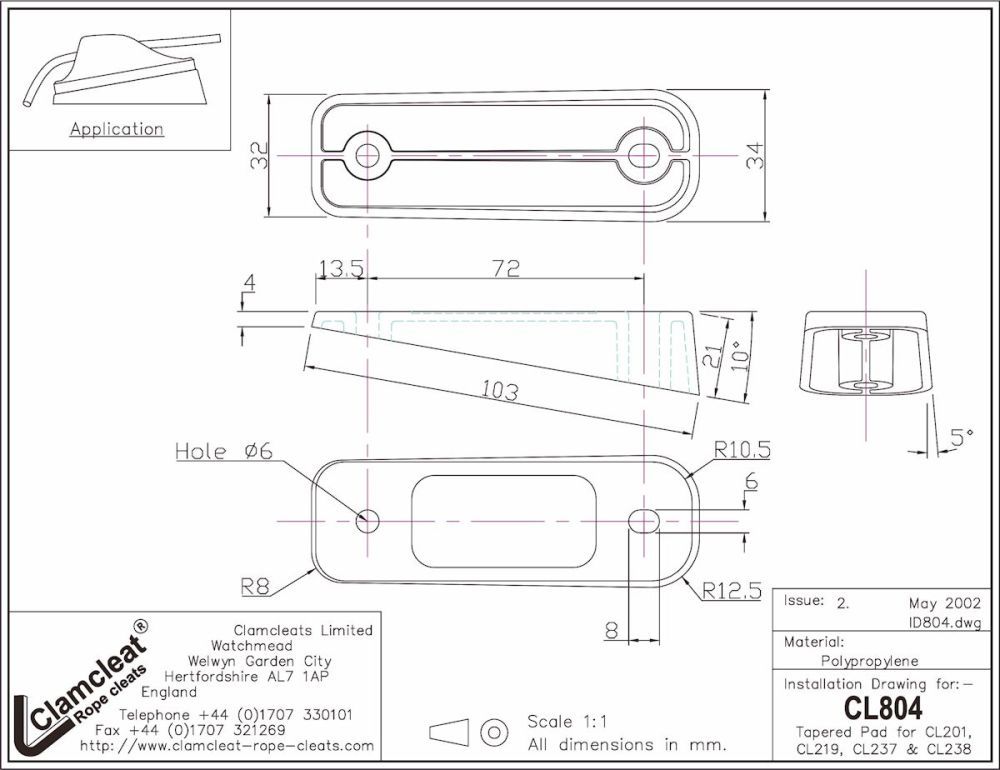

Technical Specifications
Parameter Specification Model CL804 Material Polypropylene Hole Centres 72 mm Length 103 mm Width 34 mm Height 21 mm Bolt Size M6 Screw Size No. 14 Weight Approx. 18 g
Compatible Cleats
Model Cleat Type CL201 Nylon Vertical Cleat CL219 Racing Vertical Cleat, Silver CL219AN Racing Vertical Cleat, Hard Anodised CL237 Vertical Cleat with Spring Gate CL238 Racing Vertical Cleat with Spring Gate -
