Clamcleat CL237 is a black nylon vertical cleat for 6–12 mm (1/4–1/2") rope, fitted with a manually operated red spring gate that helps prevent unintended rope entry into the cleat. Based on the CL201 design, it uses the same 72 mm mounting centres and can follow the CL201 installation layout, making it suitable for deck-mounted rope-control applications where the line needs to remain free until deliberately cleated.
- Description
- Ask a Question
-
Clamcleat CL237 Vertical Cleat with Spring Gate for 6–12 mm Rope, Black Nylon

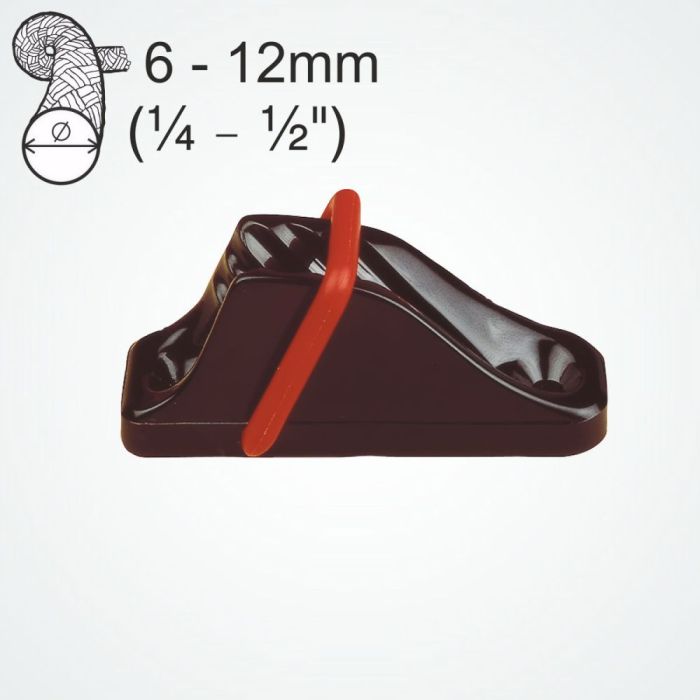

Clamcleat CL237 is a vertical nylon rope cleat designed for ropes from 6 to 12 mm (1/4–1/2") and fitted with a manually operated spring gate.

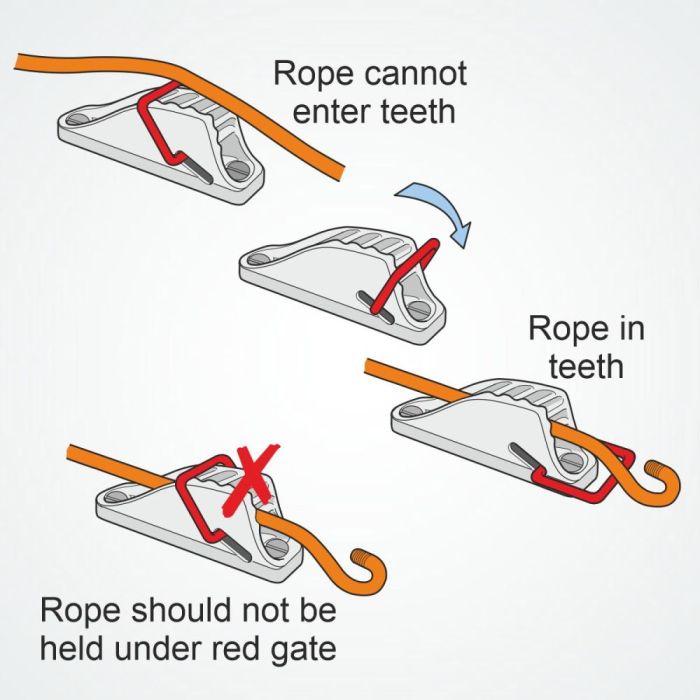

The red gate can be flipped up by hand to keep the rope out of the cleat teeth, helping prevent unintentional cleating. When the rope needs to be secured, the gate can be moved aside and the line dropped into the cleat in the normal way.
The CL237 is based on the CL201 Vertical Cleat design and uses the same 72 mm mounting centres. The underside may be marked “CL201”, and the CL201 installation drawing can be used as a guide for mounting layout.
The cleat is suitable for deck and general rope-control applications where the line needs to run free until deliberate cleating is required.
Product Features
- Brand: Clamcleat
- Model: CL237
- Product type: Vertical cleat with spring gate
- Material: Nylon
- Colour: Black
- Gate colour: Red
- Rope diameter: 6–12 mm (1/4–1/2")
- Manually operated spring gate
- Helps prevent unintended rope entry into the cleat
- Allows the rope to run free until deliberate cleating
- Based on the CL201 Vertical Cleat design
- Same 72 mm mounting centres as CL201
- Compatible with CL804 Tapered Pad
- Replacement spring gate available as PT238GATE
Technical Specifications

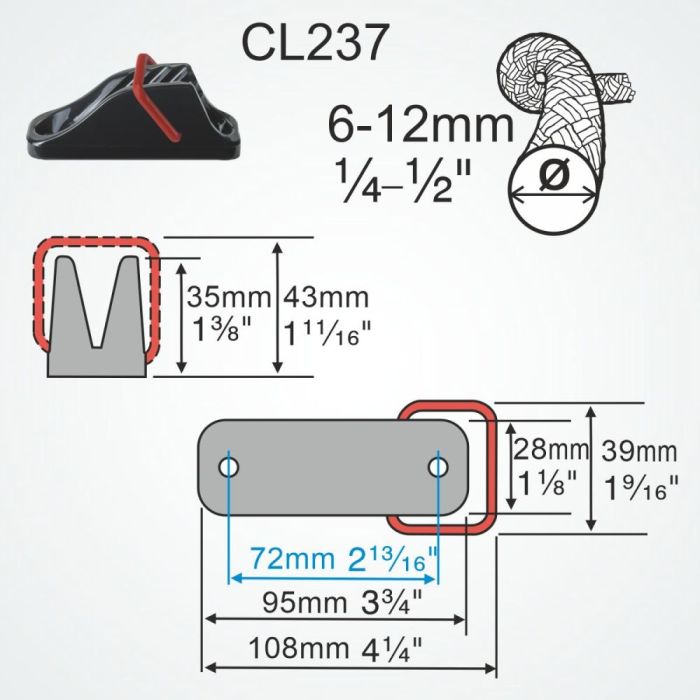

Parameter Specification Model CL237 Rope Diameter 6–12 mm (1/4–1/2") Material Nylon Colour Black Hole Centres 72 mm Length 96 mm Width 40 mm Height 35 mm Bolt Size M6 Screw Size 6.3 mm / No. 14 Weight Approx. 47 g -
