Clamcleat CL240 is a silver aluminium Racing Major cleat designed for 12–16 mm (1/2–5/8") rope and fitted with a manually operated red spring gate. The gate helps prevent unintended rope entry, while the high-strength alloy construction is suitable for larger lines and higher-load applications. Based on the CL220 Racing Major design, it uses the same 95 mm mounting centres and can be installed with bolts or screws.
- Description
- Ask a Question
-
Clamcleat CL240 Racing Major Cleat with Spring Gate for 12–16 mm Rope, Silver Aluminium

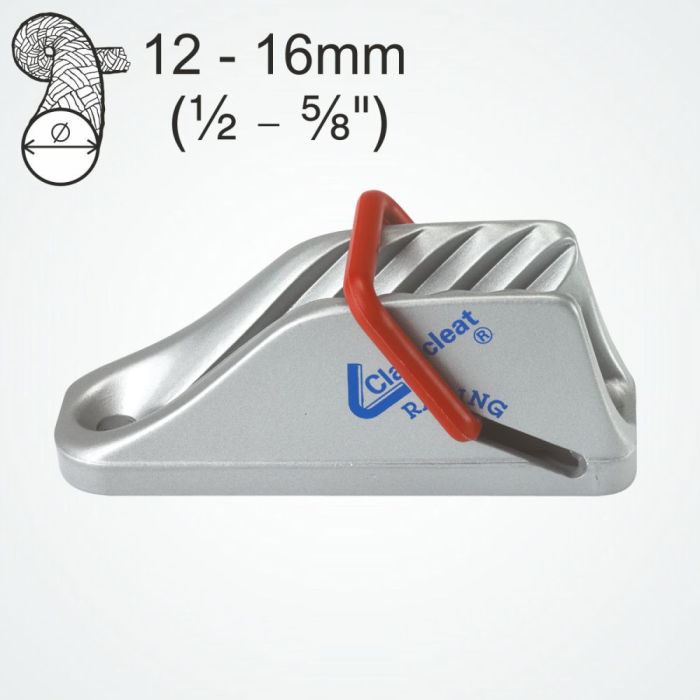

Clamcleat CL240 is an aluminium Racing Major cleat designed for ropes from 12 to 16 mm (1/2–5/8") and fitted with a manually operated spring gate.

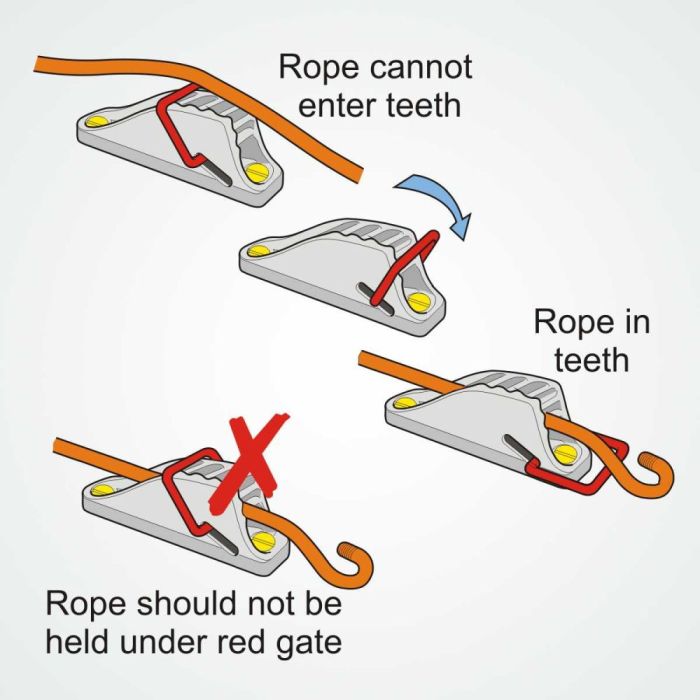

The red gate can be lifted by hand to keep the rope out of the cleat teeth and help prevent unintended cleating. When the line needs to be secured, the gate can be moved aside and the rope dropped into the cleat in the normal way.
The CL240 is based on the CL220 Racing Major cleat and uses the same 95 mm mounting centres. The CL220 installation drawing can therefore be used as a guide when planning the deck or mounting layout.
The aluminium body provides a strong solution for larger ropes and higher-load applications, while the spring gate allows the line to remain free until deliberate cleating is required.
Product Features
- Brand: Clamcleat
- Model: CL240
- Product type: Racing Major cleat with spring gate
- Material: Aluminium
- Finish: Silver
- Gate colour: Red
- Rope diameter: 12–16 mm (1/2–5/8")
- Manually operated spring gate
- Helps prevent unintended rope entry
- Allows the rope to run free until deliberate cleating
- Based on the CL220 Racing Major design
- Uses the same 95 mm mounting centres as CL220
- Suitable for larger ropes and high-load applications
- Can be mounted using bolts or screws
- Compatible with CL805 Tapered Pad
- Replacement spring gate available as PT240GATE
Technical Specifications
Parameter Specification Model CL240 Rope Diameter 12–16 mm (1/2–5/8") Material Aluminium Finish Silver Hole Centres 95 mm Length 118 mm Width 50 mm Height 44 mm Bolt Size M8 Screw Size 8 mm Weight Approx. 166 g -
