Clamcleat CL239 Major Cleat with Spring Gate for 10–16 mm Rope

ID 1395196

$ 25.40

1-2 weeks delivery time

- +

Add to cart

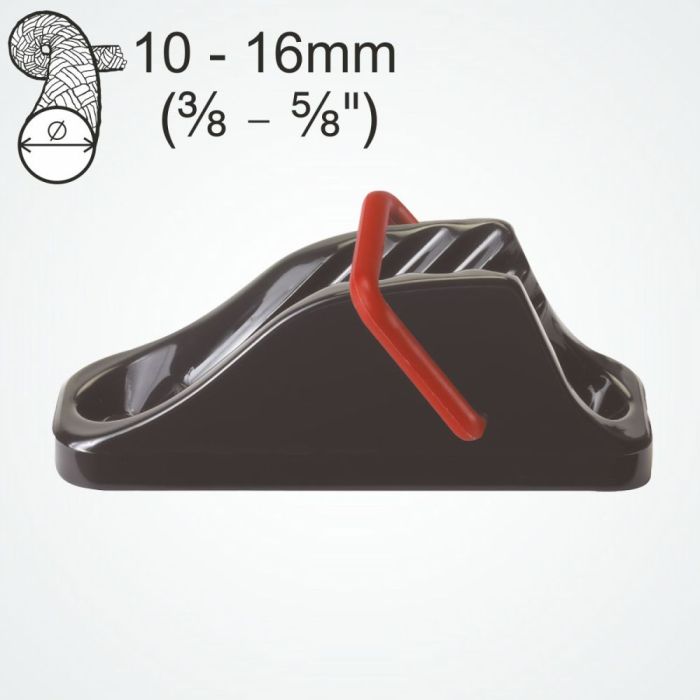

Clamcleat CL239 is a black nylon Major cleat designed for 10–16 mm (3/8–5/8") rope and fitted with a manually operated red spring gate. The gate can be lifted to keep the rope out of the cleat and prevent unintended cleating, while the underlying CL205-based design provides reliable holding for larger lines and higher-load applications.

Description
Ask a Question

Clamcleat CL239 Major Cleat with Spring Gate for 10–16 mm Rope, Black Nylon

Clamcleat CL239 is a Major-size nylon rope cleat designed for ropes from 10 to 16 mm (3/8–5/8") and fitted with a manually operated spring gate.

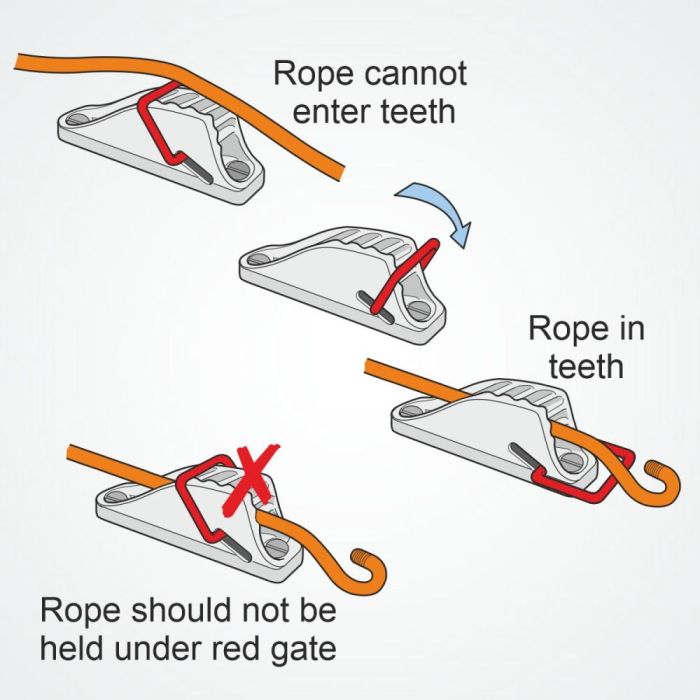

The red gate can be flipped up by hand to keep the rope out of the cleat teeth, helping prevent unintended cleating. When the line needs to be secured, the gate can be moved aside and the rope dropped into the cleat in the normal way.

The CL239 is based on the CL205 Major Cleat design and retains the same general mounting layout. The underside of the cleat may be engraved “CL205” for reference.

Its larger nylon body is designed for thicker ropes and demanding rope-control applications where the line should remain free until deliberate cleating is required.

Product Features

Brand: Clamcleat
Model: CL239
Product type: Major cleat with spring gate
Material: Nylon
Colour: Black
Gate colour: Red
Rope diameter: 10–16 mm (3/8–5/8")
Manually operated spring gate
Helps prevent unintended rope entry into the cleat
Allows the rope to remain free until deliberate cleating
Based on the CL205 Major Cleat design
Suitable for larger ropes and higher-load applications
Compatible with CL805 Tapered Pad
Replacement spring gate available as PT240GATE

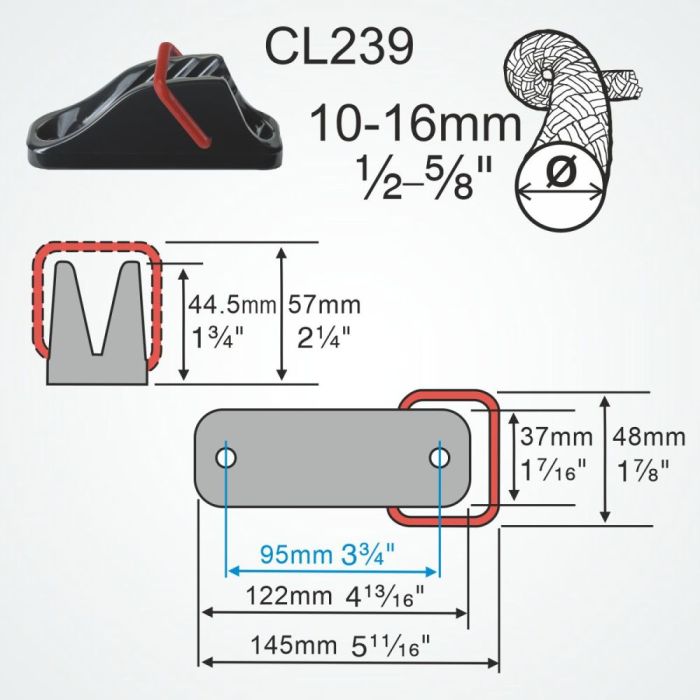

Technical Specifications

Parameter	Specification
Model	CL239
Rope Diameter	10–16 mm (3/8–5/8")
Material	Nylon
Colour	Black
Hole Centres	96 mm
Length	122 mm
Width	49 mm
Height	44 mm
Bolt Size	M8
Screw Size	8 mm / No. 16
Weight	Approx. 85 g
