Clamcleat CL278 Side Entry Racing Micros Port Cleats for 1–4 mm Rope

ID 1395017

$ 11.54

1-2 weeks delivery time

Color:

Silver
Hard Anodised

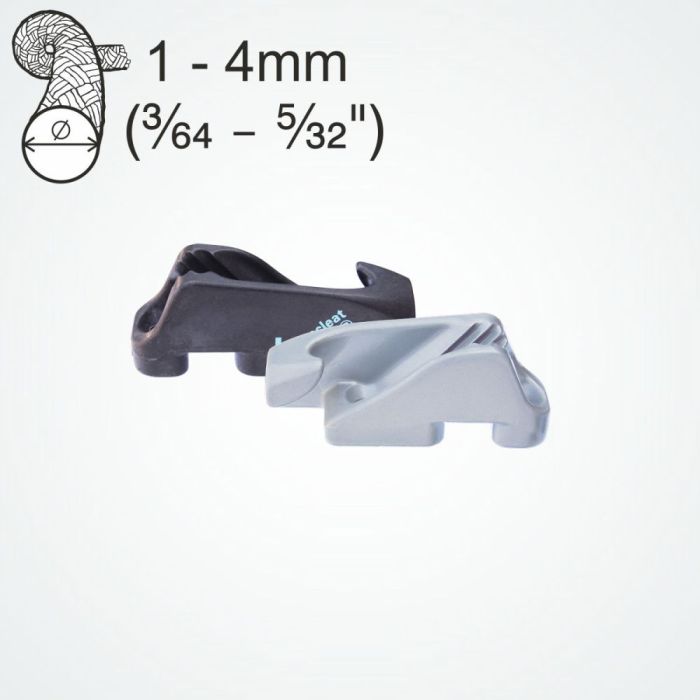

Clamcleat CL278 Side Entry Racing Micros cleats are compact aluminium cleats designed for 1–4 mm (3/64–5/32") ropes. The port-side entry fairlead allows the line to be hooked into the cleat quickly and removed easily, while the advanced tooth profile provides secure holding. An integral becket enables 2:1 rigging without an additional fixing point. Available in silver stove-enamel or hard-anodised finishes for canoe, kayak and dinghy control-line applications.

Description
Ask a Question

Clamcleat CL278 Side Entry Racing Micros Port Cleats for 1–4 mm Rope, Silver or Hard Anodised

Clamcleat CL278 Side Entry Racing Micros is a compact aluminium rope cleat designed for ropes from 1 to 4 mm (3/64–5/32").

The port-side entry fairlead allows the rope to be hooked into the cleat quickly for cleating and removed easily when required. The advanced tooth profile provides secure holding for a wide range of small-diameter ropes.

An integral becket underneath the cleat secures the rope end and allows a 2:1 purchase system to be rigged without an additional fixing point.

The CL278 is suitable for canoe and kayak seat and rudder lines, dinghy tiller lines and other compact rope-control applications.

The range is available in two finishes: CL278 with a silver stove-enamel finish and CL278AN with a hard-anodised finish for a harder-wearing surface.

Product Features

Brand: Clamcleat
Series: Side Entry Racing Micros
Models: CL278 and CL278AN
Orientation: Port
Product type: Side-entry aluminium rope cleat with becket
Material: Aluminium
Rope diameter: 1–4 mm (3/64–5/32")
Side-entry fairlead for quick rope engagement and removal
Advanced tooth profile for secure rope holding
Integral becket for 2:1 rigging
No additional rope fixing point required for 2:1 purchase
Compact and lightweight construction
Suitable for canoe and kayak seat and rudder lines
Suitable for dinghy tiller lines
Silver stove-enamel and hard-anodised finish options

Technical Specifications

Parameter	Specification
Rope Diameter	1–4 mm (3/64–5/32")
Material	Aluminium
Hole Centres	24 mm
Length	44 mm
Width	14 mm
Height	17 mm
Bolt Size	M3
Screw Size	3 mm / No. 4
Weight	Approx. 12 g
Rigging Advantage	2:1 via integrated becket

Available Variants

Model	Finish	Rope Diameter
CL278	Silver stove enamel	1–4 mm
CL278AN	Hard anodised	1–4 mm

Installation Note

When fitting the aluminium cleat to carbon fibre structures, use a suitable barrier compound or insulating components to help prevent galvanic corrosion.
