Clamcleat CL270 Racing Micros with Becket for 1–4 mm Rope

ID 1395011

$ 10.62

1-2 weeks delivery time

Color:

Silver
Hard Anodised

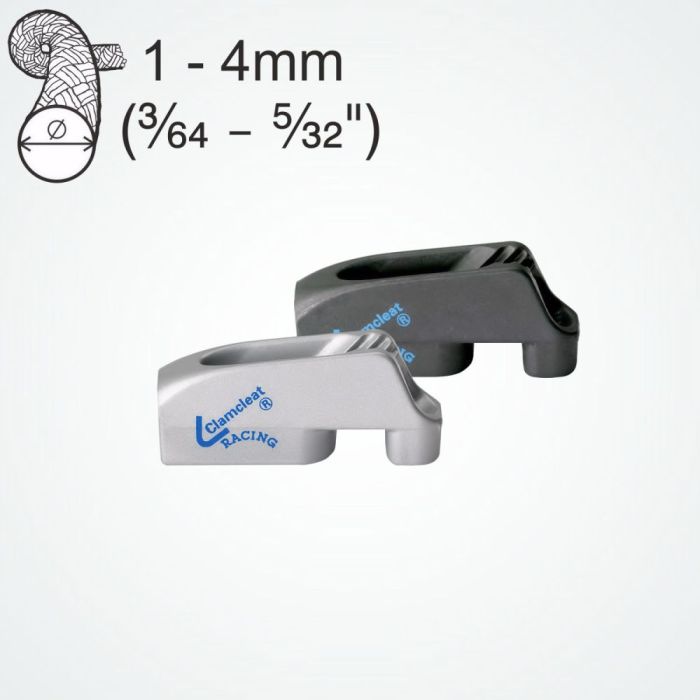

Clamcleat CL270 Racing Micros is a compact aluminium cleat with an integrated fairlead and becket, designed for 1–4 mm (3/64–5/32") rope. The becket secures the rope end beneath the cleat, allowing 2:1 rigging without an additional fixing point, while the fairlead and advanced tooth profile provide reliable rope guidance and holding. Available in silver stove-enamel or hard-anodised finishes.

Description
Ask a Question

Clamcleat CL270 Racing Micros with Becket for 1–4 mm Rope, Silver or Hard Anodised

Clamcleat CL270 Racing Micros is a compact aluminium rope cleat with an integrated fairlead and becket, designed for ropes from 1 to 4 mm (3/64–5/32").

The becket holds the end of the rope underneath the cleat, removing the need for an additional fixing point when creating a 2:1 purchase system.

The integrated fairlead guides the rope into the cleat teeth, while the advanced tooth profile provides secure holding for a wide range of small-diameter ropes.

The CL270 is often used on Laser tillers to create a 4:1 adjustment system without requiring an additional pulley block.

The range is available in two finishes: CL270 with a silver stove-enamel finish and CL270AN with a hard-anodised finish for increased wear resistance.

Product Features

Brand: Clamcleat
Series: Racing Micros
Models: CL270 and CL270AN
Product type: Aluminium rope cleat with fairlead and becket
Material: Aluminium
Rope diameter: 1–4 mm (3/64–5/32")
Integrated fairlead for rope guidance
Integrated becket secures the rope end
Allows 2:1 rigging without an additional fixing point
Advanced tooth profile for secure rope holding
Compact and lightweight design
Commonly used for Laser tiller adjustment systems
Can be used to create a 4:1 system without an additional pulley block
Silver stove-enamel and hard-anodised finish options

Technical Specifications

Parameter	Specification
Rope Diameter	1–4 mm (3/64–5/32")
Material	Aluminium
Hole Centres	24 mm
Length	44 mm
Width	13 mm
Height	19 mm
Bolt Size	M3
Screw Size	3 mm / No. 4
Weight	Approx. 14 g
Rigging Advantage	2:1 via integrated becket

Available Variants

Model	Finish	Rope Diameter
CL270	Silver stove enamel	1–4 mm
CL270AN	Hard anodised	1–4 mm

Installation Note

When mounting the aluminium cleat to carbon fibre structures, use a suitable barrier compound or insulating components to help prevent galvanic corrosion.
