Clamcleat CL712 Small Alloy Insert Cleats for 3–5 mm Rope

ID 1395166

$ 3.57

1-2 weeks delivery time

Item:

Standard
Old Style

Clamcleat CL712 Small Alloy Insert Cleats are compact aluminium cleats designed for 3–5 mm (1/8–3/16") rope and integration into moulded components. The standard CL712 combines strong alloy teeth with the lower cost of a plastic moulding and can be pressed into a hot moulding or insert moulded, making it suitable for windsurf booms and downhaul systems. The range also includes the CL712-O Old Style version for compatible legacy installations.

Description
Ask a Question

Clamcleat CL712 Small Alloy Insert Cleats for 3–5 mm Rope, Standard or Old Style

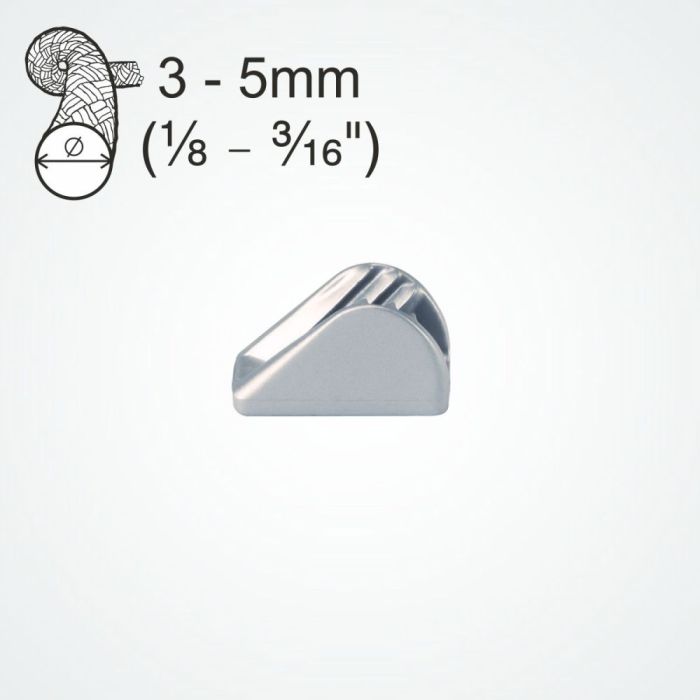

Clamcleat CL712 is a compact aluminium insert cleat designed for ropes from 3 to 5 mm (1/8–3/16").

The cleat is intended to be integrated into a plastic moulding, combining the strength and wear resistance of aluminium cleat teeth with the cost advantages of a moulded surrounding component.

The standard CL712 can be pressed into the plastic while the moulding is hot or incorporated during the insert-moulding process. Typical applications include windsurf booms, downhaul systems and other equipment requiring a compact built-in rope cleat.

The range also includes the CL712-O Old Style version, providing the same general insert-cleat function for compatible older assemblies.

Product Features

Brand: Clamcleat
Models: CL712 and CL712-O
Product type: Small alloy insert cleat
Material: Aluminium
Rope diameter: 3–5 mm (1/8–3/16")
Compact insert-mounted design
Strong alloy cleat teeth
Designed for integration into plastic mouldings
Can be pressed into a hot moulding
Suitable for insert moulding
Suitable for windsurf booms
Suitable for downhaul systems
Old Style version available for compatible legacy applications

Technical Specifications

Parameter	Specification
Rope Diameter	3–5 mm (1/8–3/16")
Material	Aluminium
Length	28 mm
Width	11 mm
Height	17 mm
Weight	Approx. 7 g
Installation	Press-fit into hot plastic moulding or insert moulded

Available Variants

Model	Version	Rope Diameter
CL712	Standard Small Alloy Insert Cleat	3–5 mm
CL712-O	Old Style Small Alloy Insert Cleat	3–5 mm
