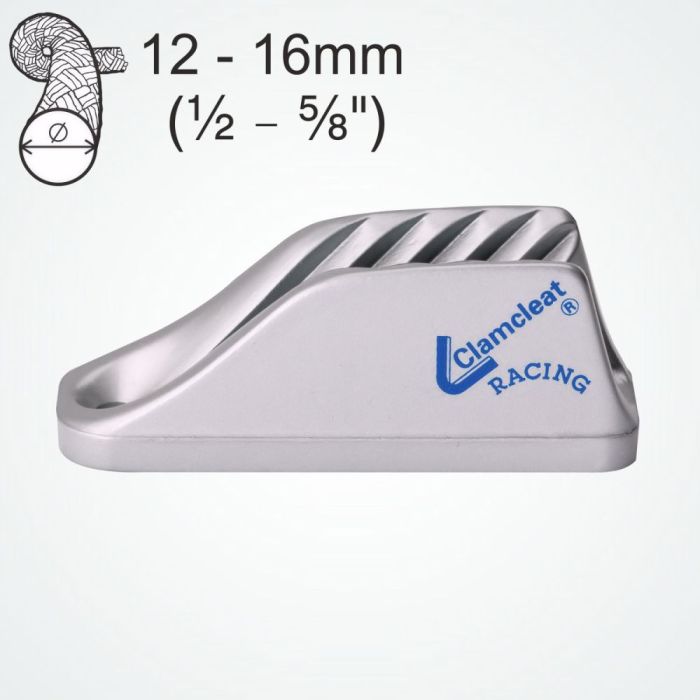

Clamcleat CL220 Racing Major Cleats for 12–16 mm Rope

ID 1395199

$ 38.10

1-2 weeks delivery time

Color:

Silver
Vibro Finish

Clamcleat CL220 Racing Major cleats are large aluminium rope cleats designed for 12–16 mm (1/2–5/8") lines and higher-load applications. The standard CL220 features a silver stove-enamel finish for inland and coastal use, while the CL220VB has an unfinished vibro surface suitable for welding directly to aluminium boats and structures. Both provide quick, positive rope locking with easy release.

Description
Ask a Question

Clamcleat CL220 Racing Major Cleats for 12–16 mm Rope, Silver or Vibro Finish Aluminium

Clamcleat CL220 Racing Major is a large aluminium rope cleat designed for ropes from 12 to 16 mm (1/2–5/8") and applications requiring higher holding loads.

The rope drops directly into the cleat teeth to provide a quick, positive lock while remaining easy to release and adjust. The aluminium construction offers high strength with relatively low weight compared with equivalent larger fittings.

The standard CL220 is supplied with a silver stove-enamel finish suitable for inland and coastal conditions. Because of its size and expected loads, bolt mounting is recommended.

The CL220VB is the welding version of the same Racing Major cleat. It is supplied with an unfinished vibro surface for direct welding to aluminium profiles, all-welded boats and structures. Fixing holes are also provided if bolted installation is preferred.

Product Features
- Brand: Clamcleat
- Series: Racing Major
- Models: CL220 and CL220VB
- Product type: High-load Major rope cleat
- Material: Aluminium
- Rope diameter: 12–16 mm (1/2–5/8")
- Quick, positive rope locking
- Easy rope release and adjustment
- Designed for higher-load applications
- CL220: silver stove-enamel finish
- CL220VB: unfinished vibro finish for welding
- CL220 best mounted using bolts
- CL220VB suitable for welding to aluminium boats and structures
- CL220VB also includes fixing holes for optional bolting
- Compatible with CL805 Tapered Pad
Technical Specifications

Parameter Specification

Rope Diameter 12–16 mm (1/2–5/8")

Material Aluminium

Hole Centres 95 mm

Length 118 mm

Width 37 mm

Height 44 mm

Weight Approx. 163 g

Available Variants

Model Finish Mounting Rope Diameter

CL220 Silver stove enamel Bolted 12–16 mm

CL220VB Vibro / unfinished Welded or bolted 12–16 mm
