Clamcleat CL805 is a polypropylene tapered pad designed to improve rope-to-cleat alignment when used with CL205, CL220, CL239 and CL240 cleats. It can be mounted in either orientation to optimise the rope entry angle and is particularly useful for winch-tail applications and other installations using larger 10–16 mm or 12–16 mm ropes.
- Description
- Ask a Question
-

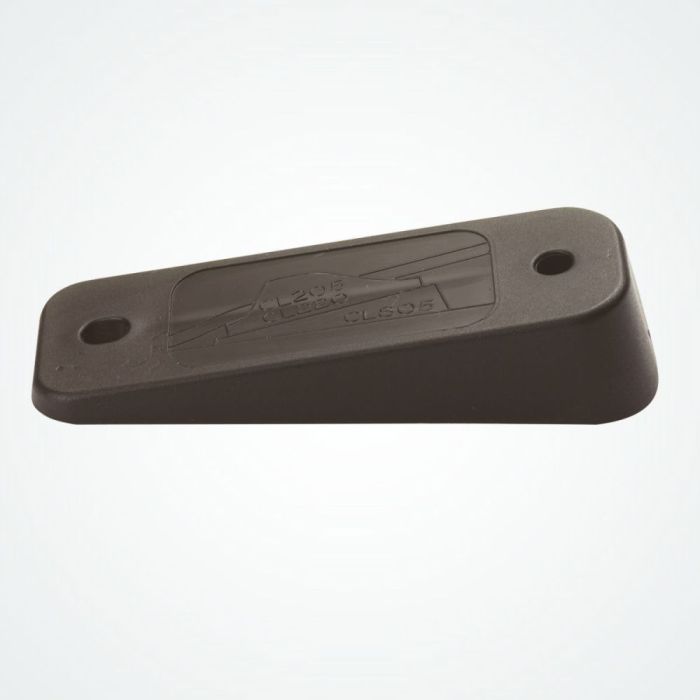

Clamcleat CL805 Tapered Pad for CL205, CL220, CL239 & CL240 Cleats, Polypropylene
Clamcleat CL805 is a tapered mounting pad designed to improve rope alignment and make cleating easier with compatible Major-size Clamcleat models.

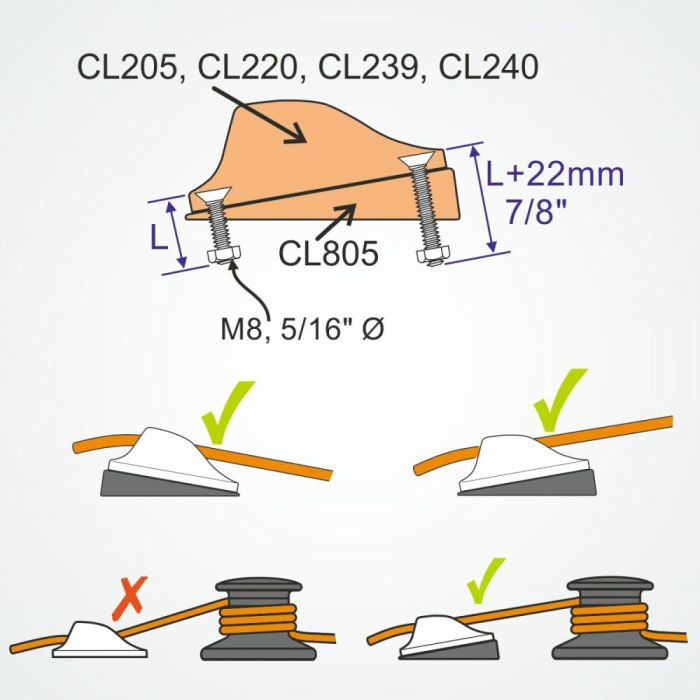

The pad fits beneath CL205, CL220, CL239 and CL240 cleats and can be installed in either orientation. This allows the cleat angle to be adjusted to better match the rope path and provide smoother line entry into the cleat teeth.

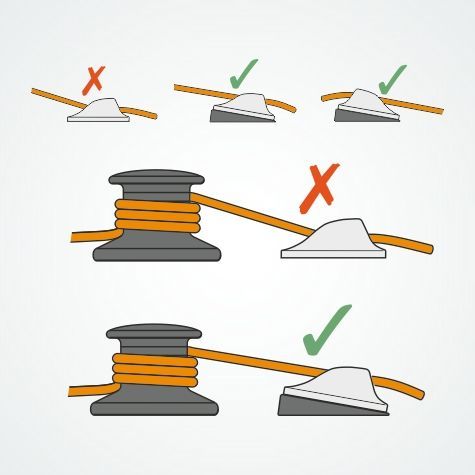

The CL805 is particularly useful where a cleat is used to control a winch tail or other larger rope, helping maintain a more direct and controlled rope path.
Manufactured from polypropylene, the pad uses 95 mm mounting centres to match the compatible cleats.
Product Features
- Brand: Clamcleat
- Model: CL805
- Product type: Tapered cleat mounting pad
- Material: Polypropylene
- Improves rope-to-cleat alignment
- Can be mounted in either orientation
- Helps provide smoother and easier cleating
- Suitable for winch-tail applications
- Compatible with CL205 Major Nylon Cleat
- Compatible with CL220 Racing Major Aluminium Cleat
- Compatible with CL239 Major Cleat with Spring Gate
- Compatible with CL240 Racing Major Cleat with Spring Gate

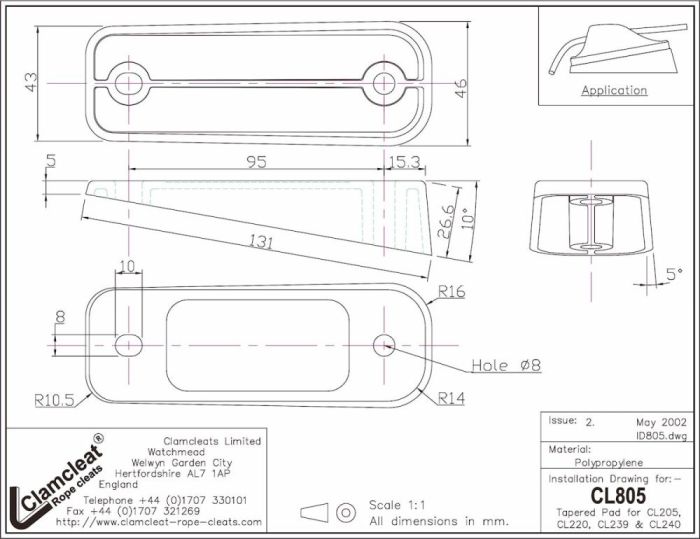

Technical Specifications
Parameter Specification Model CL805 Material Polypropylene Hole Centres 95 mm Length 131 mm Width 45 mm Height 27 mm Bolt Size M8 Weight Approx. 35 g
Compatible Cleats
Model Cleat Type Rope Diameter CL205 Major Nylon Cleat 10–16 mm CL220 Racing Major Aluminium Cleat 12–16 mm CL239 Major Nylon Cleat with Spring Gate 10–16 mm CL240 Racing Major Aluminium Cleat with Spring Gate 12–16 mm -
