The Barton N15440 is a Size 5 fiddle block with snap shackle and ball bearing sheaves (38/64 mm), designed for ropes up to 12 mm. Weighing 335 g, it delivers smooth low-friction performance with a safe working load of 750 kg, break load of 1500 kg, and maximum rolling load of 525 kg. The snap shackle allows quick attachment and release, making it ideal for dynamic and frequently adjusted rigging systems on cruising and racing yachts.
- Description
- Ask a Question
-

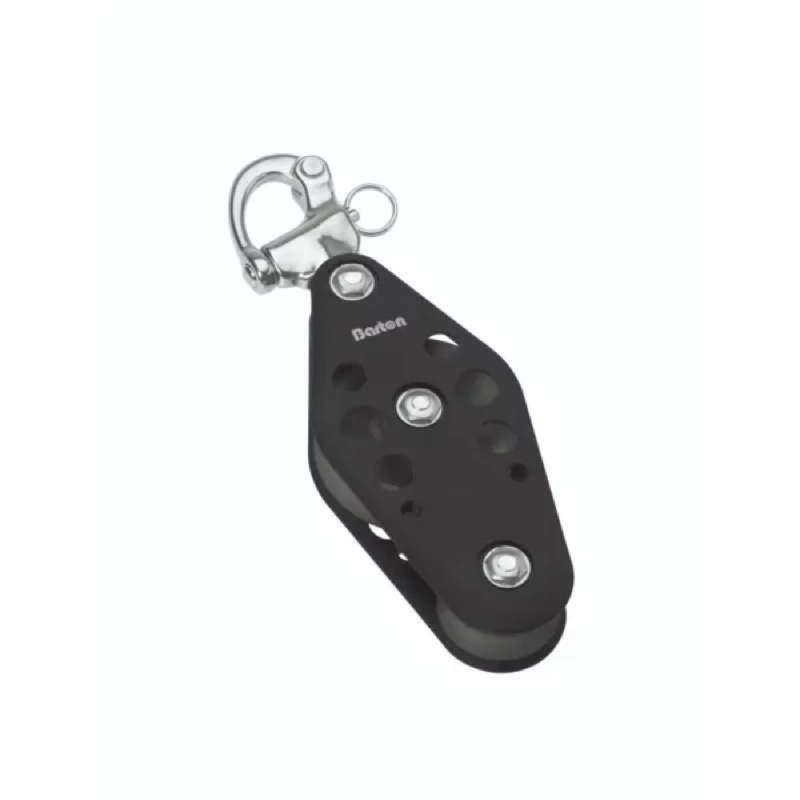

Barton N15440 - Fiddle Block Snap Shackle Size 5 38/64mm – Ball Bearing, Ø38/64mm Sheaves, Max Rope 12mm
The Barton N15440 Fiddle Block with Snap Shackle is part of the Size 5 (54 mm) block range, engineered for high efficiency and smooth operation. It features a ball bearing fiddle sheave configuration (38/64 mm), ensuring low friction and precise control in demanding sailing systems.
Constructed with glass fibre reinforced nylon side plates and an internal 316 stainless steel frame, this block provides exceptional durability and strength. The snap shackle attachment enables rapid connection and disconnection, improving flexibility in active rigging setups.
Key Features
- Fiddle block configuration with 38 mm and 64 mm sheaves
- Ball bearing system for smooth, low-friction performance
- Snap shackle for quick attachment and release
- Heavy-duty construction with stainless steel internal frame
- Optimized for dynamic rigging applications
Technical Specifications
Part Number N15440 Block Type Fiddle Snap Shackle Size Size 5 (54 mm) Sheave Diameter 38 mm / 64 mm Sheave Size 38/64 × 17 mm (1 1/2" / 2 1/2" × 5/8") Bearing Type Ball Bearing Number of Sheaves Fiddle (Double) Max Rope Diameter 12 mm (7/16") Safe Working Load (SWL) 750 kg (1650 lbs) Break Load 1500 kg (3300 lbs) Max Rolling Load 525 kg (1157 lbs) Weight 335 g Dimensions 220 × 67 × 37 mm Materials Glass fibre reinforced nylon cheeks, Acetal sheaves, 316 stainless steel frame
Applications
- Mainsheet and vang systems on larger yachts
- Dynamic multi-purchase systems
- Quick-release rigging setups
- Cruising and racing yacht rigging
The Barton Size 5 ball bearing fiddle snap shackle blocks are engineered for maximum efficiency and ease of use, delivering reliable performance in demanding marine environments.
-
