ID
1360752
$ 229.89
1-2 weeks delivery time
-
+

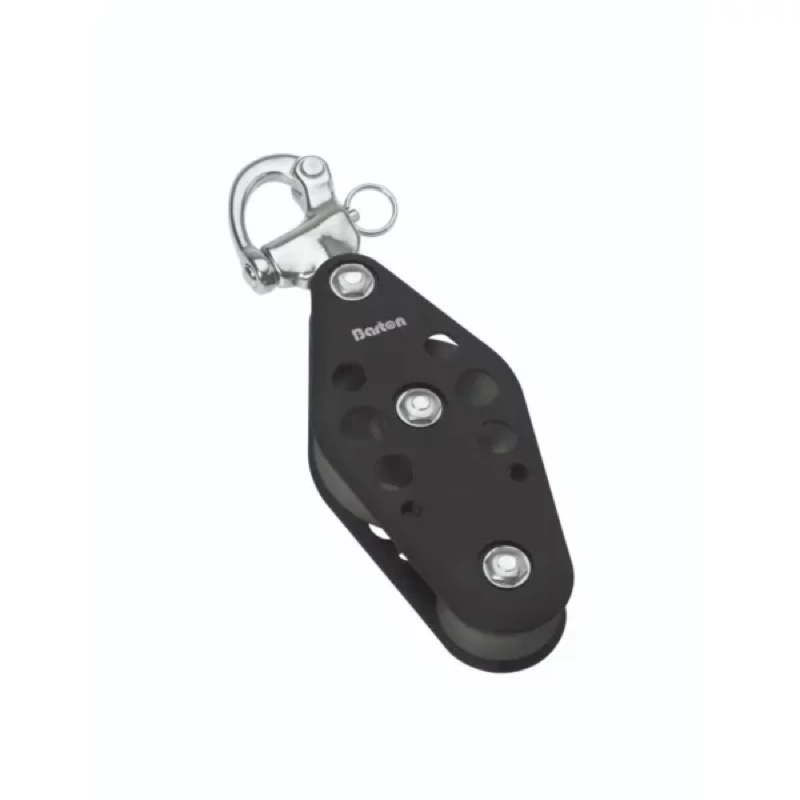

The Barton N05440 is a Size 5 fiddle block with snap shackle and plain bearing sheaves (38/64 mm), designed for ropes up to 12 mm. Weighing 351 g, it is engineered for high static loads with a safe working load of 750 kg and break load of 1500 kg. The snap shackle enables quick attachment and release, making it ideal for versatile and frequently adjusted rigging systems on cruising and racing yachts.
- Description
- Ask a Question
-
Barton N05440 - Fiddle Block Snap Shackle Size 5 38/64mm – Plain Bearing, Ø38/64mm Sheaves, Max Rope 12mm
The Barton N05440 Fiddle Block with Snap Shackle is part of the Size 5 (54 mm) block range, designed for strength, durability, and efficient load handling. It features a plain bearing fiddle sheave configuration (38/64 mm), optimized for higher static load applications.
Constructed with glass fibre reinforced nylon side plates and an internal 316 stainless steel frame, this block ensures exceptional strength and long service life. The snap shackle attachment allows rapid connection and release, improving flexibility in dynamic and frequently adjusted rigging setups.
Key Features
- Fiddle block configuration with 38 mm and 64 mm sheaves
- Plain bearing sheaves for high load applications
- Snap shackle for quick attachment and release
- Heavy-duty construction with stainless steel internal frame
- Optimized for versatile rigging systems
Technical Specifications
Part Number N05440 Block Type Fiddle Snap Shackle Size Size 5 (54 mm) Sheave Diameter 38 mm / 64 mm Sheave Size 38/64 × 17 mm (1 1/2" / 2 1/2" × 5/8") Bearing Type Plain Bearing Number of Sheaves Fiddle (Double) Max Rope Diameter 12 mm (7/16") Safe Working Load (SWL) 750 kg (1650 lbs) Break Load 1500 kg (3300 lbs) Weight 351 g Dimensions 200 × 67 × 37 mm Materials Glass fibre reinforced nylon cheeks, Acetal sheaves, 316 stainless steel frame
Applications
- Mainsheet and vang systems on larger yachts
- Heavy-duty multi-purchase systems
- Quick-release rigging setups
- Cruising and racing yacht rigging
The Barton Size 5 fiddle snap shackle blocks are engineered for durability and ease of use, delivering reliable performance in demanding marine environments.
-
