ID
1360882
$ 198.52
1-2 weeks delivery time
-
+
The Barton N15631 is a Size 5 fiddle block with swivel, becket and cam, equipped with twin inline Ø38 mm and Ø64 mm ball bearing sheaves for ropes up to 12 mm. Weighing 480 g, it delivers smooth low-friction operation with a working load of 750 kg and break load of 1500 kg, making it ideal for dynamic trimming systems requiring fast and efficient adjustment.
- Description
- Ask a Question
-

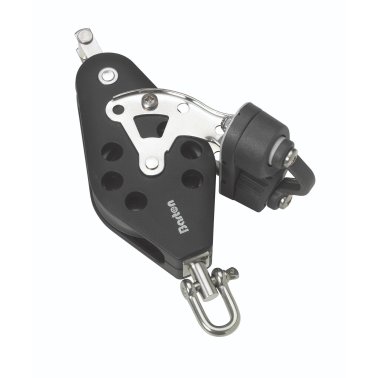

Barton N15631 – Fiddle Block Swivel with Becket and Cam Size 5 54mm, Ball Bearing, Ø38/64mm Sheaves, Max Rope 12mm
The Barton N15631 Fiddle Block with Swivel, Becket and Cam is part of the Size 5 (54 mm) range, engineered for high-performance sailing systems. It features a fiddle configuration with two inline sheaves (38 mm and 64 mm), delivering an efficient and compact solution for multi-purchase setups.
Equipped with a ball bearing system, this block ensures low-friction operation and smooth line movement, making it ideal for frequently adjusted control systems. The integrated cam cleat enables quick and secure rope locking, while the swivel head maintains optimal alignment under load. The becket allows fixed line termination for versatile rigging configurations.
Key Features
- Fiddle block with Ø38 mm and Ø64 mm sheaves
- Ball bearing system for smooth, low-friction performance
- Integrated cam cleat for quick line locking
- Swivel head for optimal load alignment
- Becket for secure rope termination
- Lightweight yet robust construction – 480 g
Technical Specifications
Part Number N15631 Block Type Fiddle Block – Swivel + Becket + Cam Size Size 5 (54 mm) Sheave Configuration Fiddle (2 sheaves) Sheave Diameter 38 mm / 64 mm Sheave Size 54 mm x 17 mm (2 1/8" x 5/8") Bearing Type Ball Bearing Max Rope Diameter 12 mm (7/16") Safe Working Load (SWL) 750 kg (1650 lbs) Break Load 1500 kg (3300 lbs) Max Rolling Load 525 kg (1157 lbs) Weight 480 g Dimensions 208 × 115 × 81 mm
Applications
- Mainsheet and vang systems
- Dynamic trimming systems
- High-performance control line setups
- Cruising and racing yachts
The Barton Size 5 ball bearing fiddle blocks are designed for high-efficiency line handling, providing smooth operation and reliable load management in demanding sailing environments.
-
