ID
1360763
$ 101.64
1-2 weeks delivery time
-
+
The Barton N06420 is a Size 6 fiddle block with reverse shackle, featuring twin inline Ø44 mm and Ø72 mm plain bearing sheaves for ropes up to 14 mm. Weighing 350 g, it is built for heavy-duty applications with a working load of 1000 kg and break load of 2000 kg, making it ideal for high-load purchase systems on larger cruising and racing yachts.
- Description
- Ask a Question
-

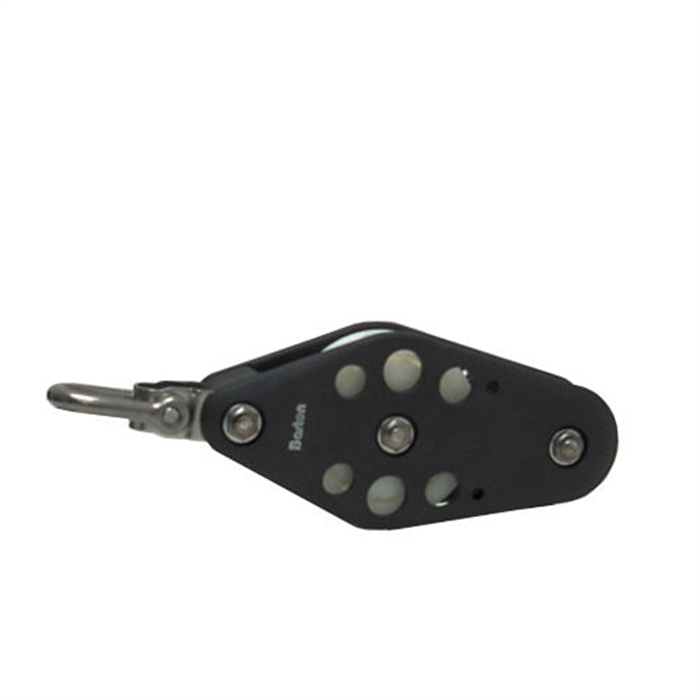

Barton N06420 – Fiddle Block Reverse Shackle Size 6 64mm, Plain Bearing, Ø44/72mm Sheaves, Max Rope 14mm
The Barton N06420 Fiddle Block with Reverse Shackle is part of the Size 6 (64 mm) high load cruiser range, engineered for demanding sailing environments. It features a fiddle configuration with two inline sheaves (44 mm and 72 mm), providing a compact and efficient solution for multi-purchase systems.
Designed with a plain bearing system, this block delivers maximum strength and durability under sustained loads. The reverse shackle allows flexible alignment at 90°, improving installation versatility in complex rigging layouts. Built with glass fibre reinforced side plates and a 316 stainless steel internal frame, it ensures long-term reliability in harsh marine conditions.
Key Features
- Fiddle block with Ø44 mm and Ø72 mm sheaves
- Reverse shackle for flexible mounting orientation
- Plain bearing system for high static load capacity
- Heavy-duty construction for high load applications
- Designed for cruising and racing yachts
- Compact and robust design – 350 g
Technical Specifications
Part Number N06420 Block Type Fiddle Block – Reverse Shackle Size Size 6 (64 mm) Sheave Configuration Fiddle (2 sheaves) Sheave Diameter 44 mm / 72 mm Sheave Size 64 mm x 18 mm (2 1/2" x 45/64") Bearing Type Plain Bearing Max Rope Diameter 14 mm (9/16") Safe Working Load (SWL) 1000 kg (2200 lbs) Break Load 2000 kg (4400 lbs) Weight 350 g Dimensions 205 × 77 × 39 mm
Applications
- Mainsheet and vang systems
- High-load purchase systems
- Rigging setups requiring flexible mounting angles
- Cruising and performance yachts
The Barton Size 6 fiddle blocks are designed for maximum strength and reliability, delivering dependable performance in high-load sailing systems where durability and secure operation are critical.
-
