ID
1360898
$ 132.01
1-2 weeks delivery time
-
+
The Barton N16420 is a Size 6 fiddle block with reverse shackle, featuring twin inline Ø44 mm and Ø72 mm ball bearing sheaves for ropes up to 14 mm. Weighing 340 g, it provides smooth low-friction operation with a working load of 1000 kg and break load of 2000 kg, making it ideal for dynamic high-load systems on larger cruising and racing yachts.
- Description
- Ask a Question
-

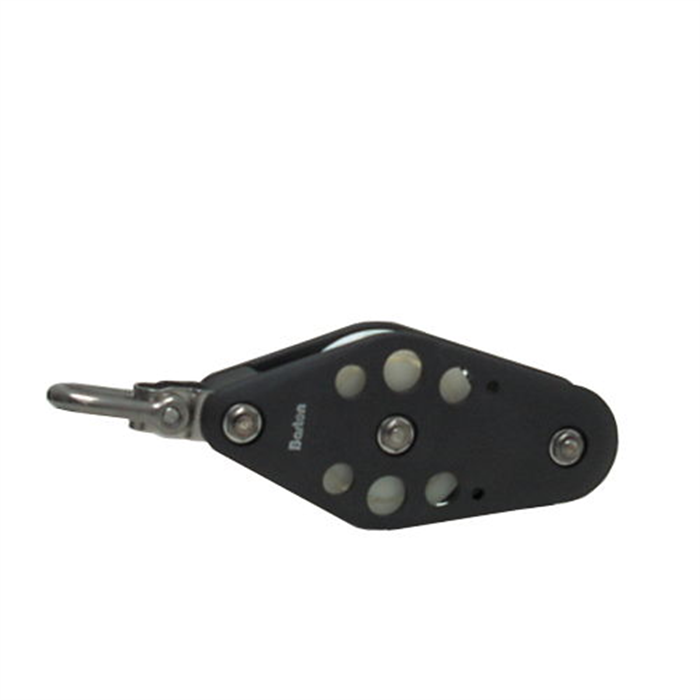

Barton N16420 – Fiddle Block Reverse Shackle Size 6 64mm, Ball Bearing, Ø44/72mm Sheaves, Max Rope 14mm
The Barton N16420 Fiddle Block with Reverse Shackle is part of the Size 6 (64 mm) high load cruiser range, designed for demanding marine environments. It features a fiddle configuration with two inline sheaves (44 mm and 72 mm), offering an efficient and compact setup for multi-purchase systems.
Equipped with a ball bearing system, this block ensures low-friction performance and smooth line handling, making it ideal for frequently adjusted control systems. The reverse shackle enables flexible 90° mounting orientation, improving adaptability in complex rigging layouts. The construction combines glass fibre reinforced side plates with a 316 stainless steel internal frame for strength, durability, and long service life.
Key Features
- Fiddle block with Ø44 mm and Ø72 mm sheaves
- Ball bearing system for smooth, low-friction operation
- Reverse shackle for flexible mounting orientation
- High-strength construction for heavy-duty use
- Optimised for dynamic load applications
- Lightweight and robust design – 340 g
Technical Specifications
Part Number N16420 Block Type Fiddle Block – Reverse Shackle Size Size 6 (64 mm) Sheave Configuration Fiddle (2 sheaves) Sheave Diameter 44 mm / 72 mm Sheave Size 64 mm x 18 mm (2 1/2" x 45/64") Bearing Type Ball Bearing Max Rope Diameter 14 mm (9/16") Safe Working Load (SWL) 1000 kg (2200 lbs) Break Load 2000 kg (4400 lbs) Max Rolling Load 700 kg (1543 lbs) Weight 340 g Dimensions 205 × 77 × 39 mm
Applications
- Mainsheet and vang systems
- Dynamic trimming systems
- High-load purchase systems
- Rigging requiring flexible mounting angles
- Cruising and racing yachts
The Barton Size 6 ball bearing fiddle blocks are engineered for high-efficiency performance and reliable load handling, ensuring smooth operation and durability in demanding sailing conditions.
-
