ID
1360899
$ 138.51
1-2 weeks delivery time
-
+
The Barton N16421 is a Size 6 fiddle block with reverse shackle and becket, featuring twin inline Ø44 mm and Ø72 mm ball bearing sheaves for ropes up to 14 mm. Weighing 370 g, it delivers smooth low-friction operation with a working load of 1000 kg and break load of 2000 kg, making it ideal for dynamic high-load purchase systems with fixed line termination.
- Description
- Ask a Question
-

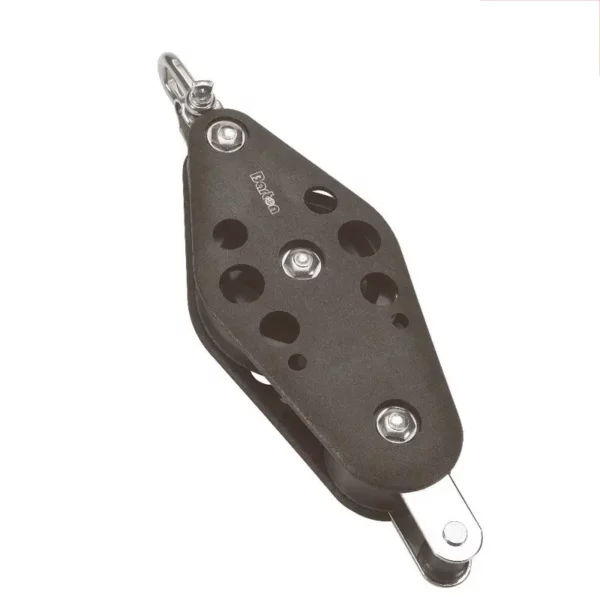

Barton N16421 – Fiddle Block Reverse Shackle with Becket Size 6 64mm, Ball Bearing, Ø44/72mm Sheaves, Max Rope 14mm
The Barton N16421 Fiddle Block with Reverse Shackle and Becket is part of the Size 6 (64 mm) high load cruiser range, designed for demanding sailing applications. It features a fiddle configuration with two inline sheaves (44 mm and 72 mm), providing a compact and efficient solution for multi-purchase systems.
Equipped with a ball bearing system, this block ensures smooth, low-friction performance for frequently adjusted control lines. The reverse shackle allows flexible 90° mounting orientation, while the integrated becket enables secure rope termination. The robust construction includes glass fibre reinforced side plates and a 316 stainless steel internal frame, ensuring durability under high loads.
Key Features
- Fiddle block with Ø44 mm and Ø72 mm sheaves
- Ball bearing system for efficient, low-friction operation
- Reverse shackle for flexible mounting orientation
- Integrated becket for fixed line termination
- High-strength construction for heavy-duty applications
- Optimised for dynamic trimming systems – 370 g
Technical Specifications
Part Number N16421 Block Type Fiddle Block – Reverse Shackle + Becket Size Size 6 (64 mm) Sheave Configuration Fiddle (2 sheaves) Sheave Diameter 44 mm / 72 mm Sheave Size 64 mm x 18 mm (2 1/2" x 45/64") Bearing Type Ball Bearing Max Rope Diameter 14 mm (9/16") Safe Working Load (SWL) 1000 kg (2200 lbs) Break Load 2000 kg (4400 lbs) Max Rolling Load 700 kg (1543 lbs) Weight 370 g Dimensions 235 × 77 × 39 mm
Applications
- Mainsheet and vang systems
- Dynamic trimming systems
- High-load purchase systems with fixed termination
- Rigging setups requiring flexible mounting orientation
- Cruising and racing yachts
The Barton Size 6 ball bearing fiddle blocks with becket are engineered for efficient load handling and smooth operation, delivering reliable performance in high-load sailing systems where flexibility and control are essential.
-
