The Barton N11111 is a Size 1 single fixed eye block with becket and a 30 mm ball bearing sheave, designed for ropes up to 8 mm. Weighing 42 g, it delivers low-friction performance with a working load of 355 kg, break load of 710 kg, and a maximum rolling load of 245 kg, making it ideal for dynamic control systems with rope termination.
- Description
- Ask a Question
-

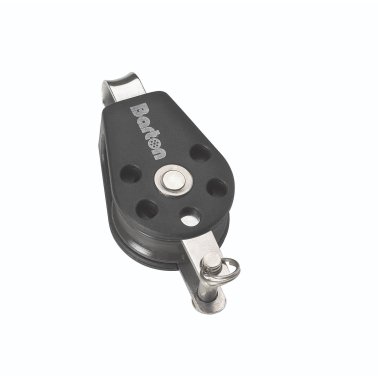

Barton N11111 - Single Fixed Eye Block with Becket Size 1 30mm – Ball Bearing, Ø30mm Sheave, Max Rope 8mm
The Barton N11111 Single Fixed Eye Block with Becket is part of the Size 1 (30 mm) range, featuring a ball bearing sheave and an internal steel frame for enhanced strength and durability. The integrated becket allows secure rope termination in compact purchase systems.
The fixed eye attachment ensures stable mounting, while the ball bearing system provides low-friction performance for dynamic and frequently adjusted lines. This makes the block ideal for dinghies, racing boats, and performance sailing applications requiring efficient and responsive control.
Key Features
- Single sheave block with fixed eye and integrated becket
- Ball bearing system for smooth, low-friction operation
- Internal steel frame for increased strength and durability
- Becket for rope termination in purchase systems
- Lightweight construction – 42 g
Technical Specifications
Part Number N11111 Block Type Single Fixed Eye + Becket Size Size 1 (30 mm) Sheave Diameter 30 mm x 12 mm (1 3/16"" x 15/32"") Bearing Type Ball Bearing Number of Sheaves Single Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 355 kg (782 lbs) Break Load 710 kg (1565 lbs) Max Rolling Load 245 kg (540 lbs) Weight 42 g Dimensions 72 × 32 × 25 mm
Applications
- Dynamic control and trimming systems
- Compact purchase systems with rope termination
- Dinghies and performance sailing boats
- Low-friction rigging applications
The Barton Size 1 ball bearing single blocks with becket are engineered for maximum efficiency and responsive performance, delivering smooth operation and precise control in demanding sailing environments.
-
