The Barton N11110 is a Size 1 single fixed eye block with a 30 mm ball bearing sheave, designed for ropes up to 8 mm. Weighing 34 g, it delivers low-friction performance with a working load of 355 kg, break load of 710 kg, and a maximum rolling load of 245 kg, making it ideal for dynamic control systems.
- Description
- Ask a Question
-

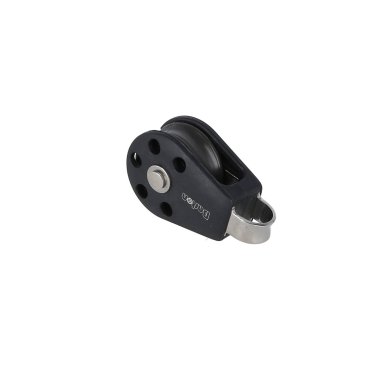

Barton N11110 - Single Fixed Eye Block Size 1 30mm – Ball Bearing, Ø30mm Sheave, Max Rope 8mm
The Barton N11110 Single Fixed Eye Block is part of the Size 1 (30 mm) range, featuring a ball bearing sheave and an internal steel frame for enhanced strength and durability. The fixed eye attachment ensures stable and secure mounting in a wide range of rigging applications.
The ball bearing system provides low-friction performance for dynamic and frequently adjusted lines, making this block ideal for dinghies, racing boats, and performance sailing setups. Its lightweight and compact design allows efficient integration into both primary and auxiliary control systems.
Key Features
- Single sheave block with fixed eye attachment
- Ball bearing system for smooth, low-friction operation
- Internal steel frame for increased strength and durability
- Optimized for dynamic and frequently adjusted systems
- Lightweight construction – 34 g
Technical Specifications
Part Number N11110 Block Type Single Fixed Eye Size Size 1 (30 mm) Sheave Diameter 30 mm x 12 mm (1 3/16"" x 15/32"") Bearing Type Ball Bearing Number of Sheaves Single Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 355 kg (782 lbs) Break Load 710 kg (1565 lbs) Max Rolling Load 245 kg (540 lbs) Weight 34 g Dimensions 57 × 32 × 25 mm
Applications
- Dynamic control and trimming systems
- Low-friction line handling
- Dinghies and performance sailing boats
- General-purpose rigging requiring smooth operation
The Barton Size 1 ball bearing single fixed eye blocks are engineered for maximum efficiency and smooth performance, delivering precise control and reduced friction in demanding sailing conditions.
-
