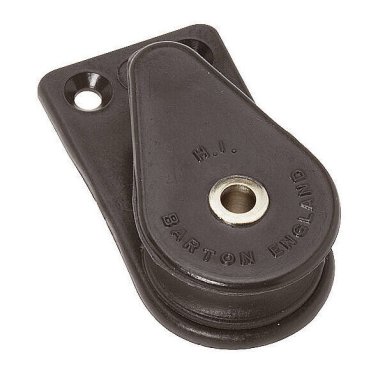

The Barton N01160 is a Size 1 lightweight cheek block with a 30 mm plain bearing sheave, designed for ropes up to 8 mm. Weighing only 21 g, it provides reliable load handling with a working load of 355 kg and break load of 710 kg, making it ideal for fixed-position line routing where minimal weight is essential.
- Description
- Ask a Question
-

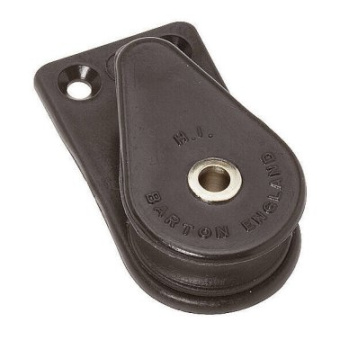

Barton N01160 - Lightweight Cheek Block Size 1 30mm – Plain Bearing, Ø30mm Sheave, Max Rope 8mm
The Barton N01160 Lightweight Cheek Block is part of the Size 1 (30 mm) range, featuring a plain bearing sheave and an internal steel frame for strength and durability despite its extremely low weight. The compact cheek block design allows direct mounting onto flat surfaces for efficient line routing.
Designed for fixed-position installations, cheek blocks are commonly mounted on decks, masts, or booms to guide control lines with minimal movement. The plain bearing system is optimized for high load capacity and steady operation, making this block suitable for dinghies, dayboats, and larger sailing yachts :contentReference[oaicite:0]{index=0}.
Key Features
- Lightweight single sheave cheek block for fixed mounting
- Internal steel frame for strength and durability
- Plain bearing system for high load applications
- Ultra-light construction – 21 g
- Designed for deck, mast, or boom installation
Technical Specifications
Part Number N01160 Block Type Single Cheek Block Size Size 1 (30 mm) Sheave Diameter 30 mm x 12 mm (1 3/16"" x 15/32"") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 355 kg (782 lbs) Break Load 710 kg (1565 lbs) Weight 21 g Dimensions 56 × 30 × 18 mm
Applications
- Fixed-position line routing
- Deck, mast, and boom installations
- Control line guidance systems
- Dinghies, dayboats, and lightweight sailing setups
The Barton Size 1 lightweight cheek blocks are engineered for minimal weight and dependable performance, offering efficient line management in compact and fixed rigging systems.
-
