ID
1360645
$ 21.43
1-2 weeks delivery time
-
+
The Barton N01111 is a Size 1 single fixed eye block with becket and a 30 mm plain bearing sheave, designed for ropes up to 8 mm. Weighing 44 g, it provides reliable load handling with a working load of 355 kg and break load of 710 kg, making it suitable for compact purchase systems with rope termination.
- Description
- Ask a Question
-

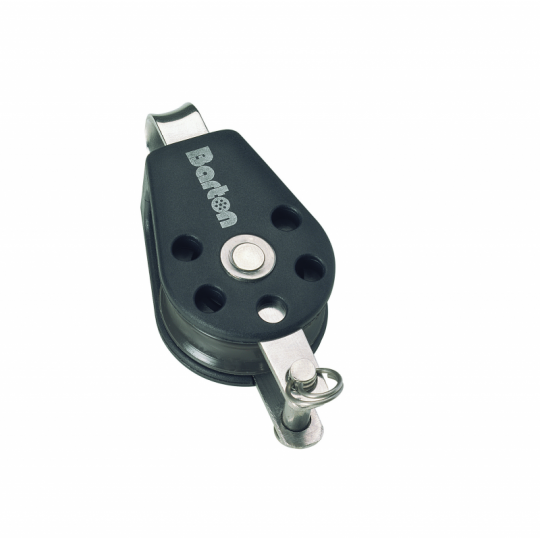

Barton N01111 - Single Fixed Eye Block with Becket Size 1 30mm – Plain Bearing, Ø30mm Sheave, Max Rope 8mm
The Barton N01111 Single Fixed Eye Block with Becket is part of the Size 1 (30 mm) range, featuring a plain bearing sheave and an internal steel frame for enhanced strength and durability. The integrated becket allows secure rope termination in compact rigging systems.
The fixed eye attachment ensures stable mounting, while the plain bearing system is optimized for high load capacity and controlled adjustment. This block is ideal for dinghies, dayboats, and general sailing applications where dependable performance and structural strength are required.
Key Features
- Single sheave block with fixed eye and integrated becket
- Internal steel frame for increased strength and durability
- Plain bearing system for high load applications
- Becket for rope termination in purchase systems
- Lightweight construction – 44 g
Technical Specifications
Part Number N01111 Block Type Single Fixed Eye + Becket Size Size 1 (30 mm) Sheave Diameter 30 mm x 12 mm (1 3/16"" x 15/32"") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 355 kg (782 lbs) Break Load 710 kg (1565 lbs) Weight 44 g Dimensions 72 × 32 × 25 mm
Applications
- Compact purchase systems with rope termination
- Control and trimming systems
- Dinghies and small to medium sailing boats
- General-purpose rigging applications
The Barton Size 1 plain bearing single blocks with becket are engineered for durability, strength, and reliable performance, providing efficient operation in a wide range of sailing systems.
-
